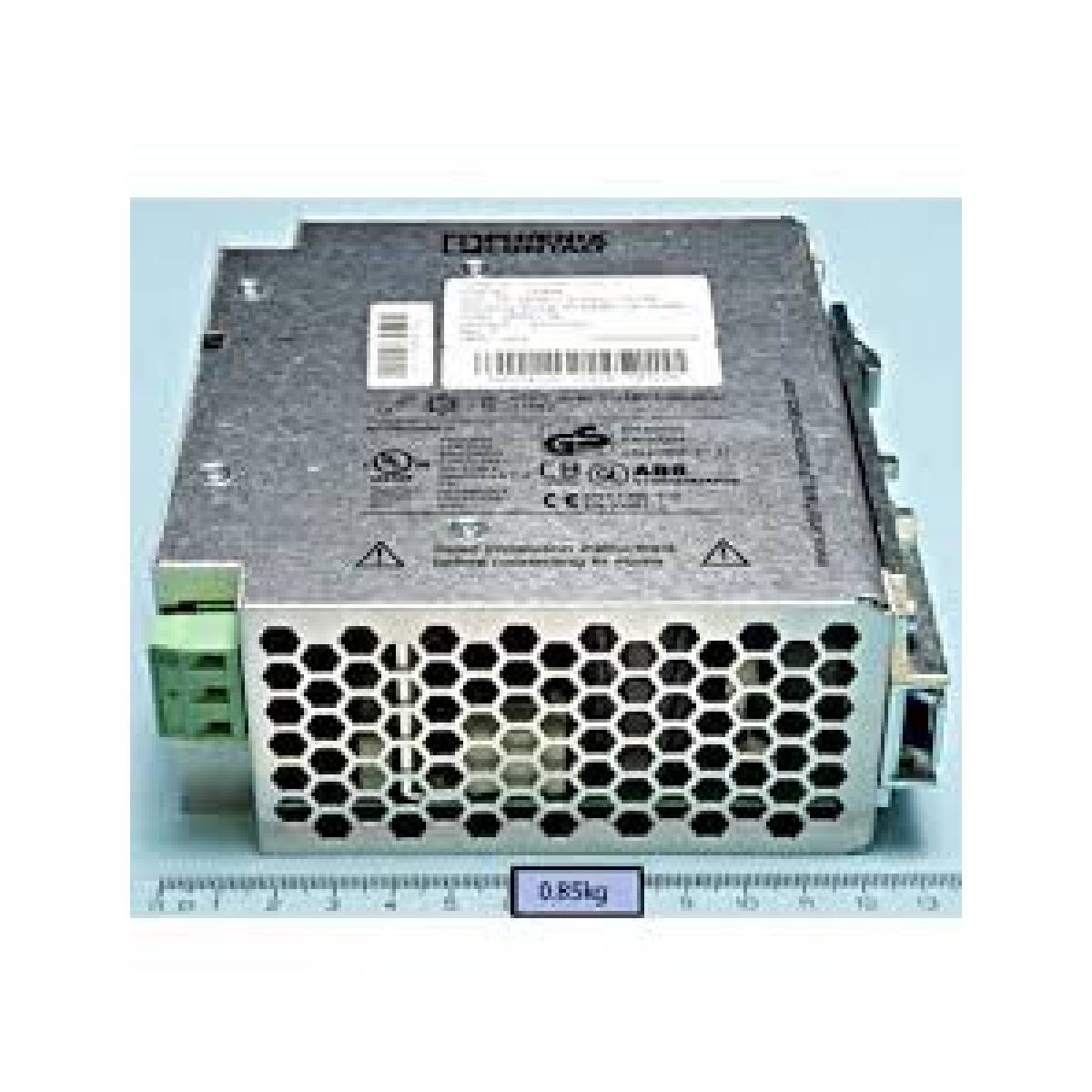

ABB 3BHE001095P8581 ACS1000 Power Supply QUINT-PS100-240VAC-/24VDC/5

Description

The ABB 3BHE001095P8581 is a specialized industrial power supply unit designated as QUINT-PS-100-240VAC/24VDC/5. It is primarily engineered to function as a core control system or board-level power source within ACS 1000 medium voltage AC drives. By converting an alternating current input range of 100-240VAC down to a regulated 24VDC output, the unit delivers stable electrical power to critical control units and internal drive components. This device ensures operational continuity, protecting drive electronics from input voltage variations and minimizing downtime in demanding industrial motor control environments.

Features

• Seamless operational configuration within ACS 1000 series medium voltage AC drives.
• Dual wide-range AC input capability spanning 100-240VAC for global industrial deployment.
• Steady, regulated 24VDC output tailored for control unit and board-level components.
• Direct retrofitting replacement capabilities for older legacy unit ID 3AFE10030455.
• Robust mechanical enclosure featuring integrated ventilation patterns for reliable thermal management.

Applications

• ACS 1000 industrial medium voltage AC drive platforms.
• Control units, electronic boards, and drive internal sub-system power networks.
• Heavy industrial motor control centers and automated power conversion lines.

Ordering Information

Technical Specifications

Installation Guidelines

• Cooling and Ventilation: Position the power supply unit inside the cabinet layout to leverage the built-in perforated front plate for optimal convective airflow. Do not block the ventilation holes.
• Wiring Configurations: Match the proper terminals for the 100-240VAC input line and execute secure connections for the 24VDC output bus to ensure minimal voltage drops.
• System Integration: When swapping an obsolete 3AFE10030455 hardware model, verify the terminal assignments correspond exactly with the updated housing layout prior to system re-energization.
• Grounding Protection: Establish a continuous, robust path to the structural earth ground frame via standard cabinet rail or chassis contact procedures.
