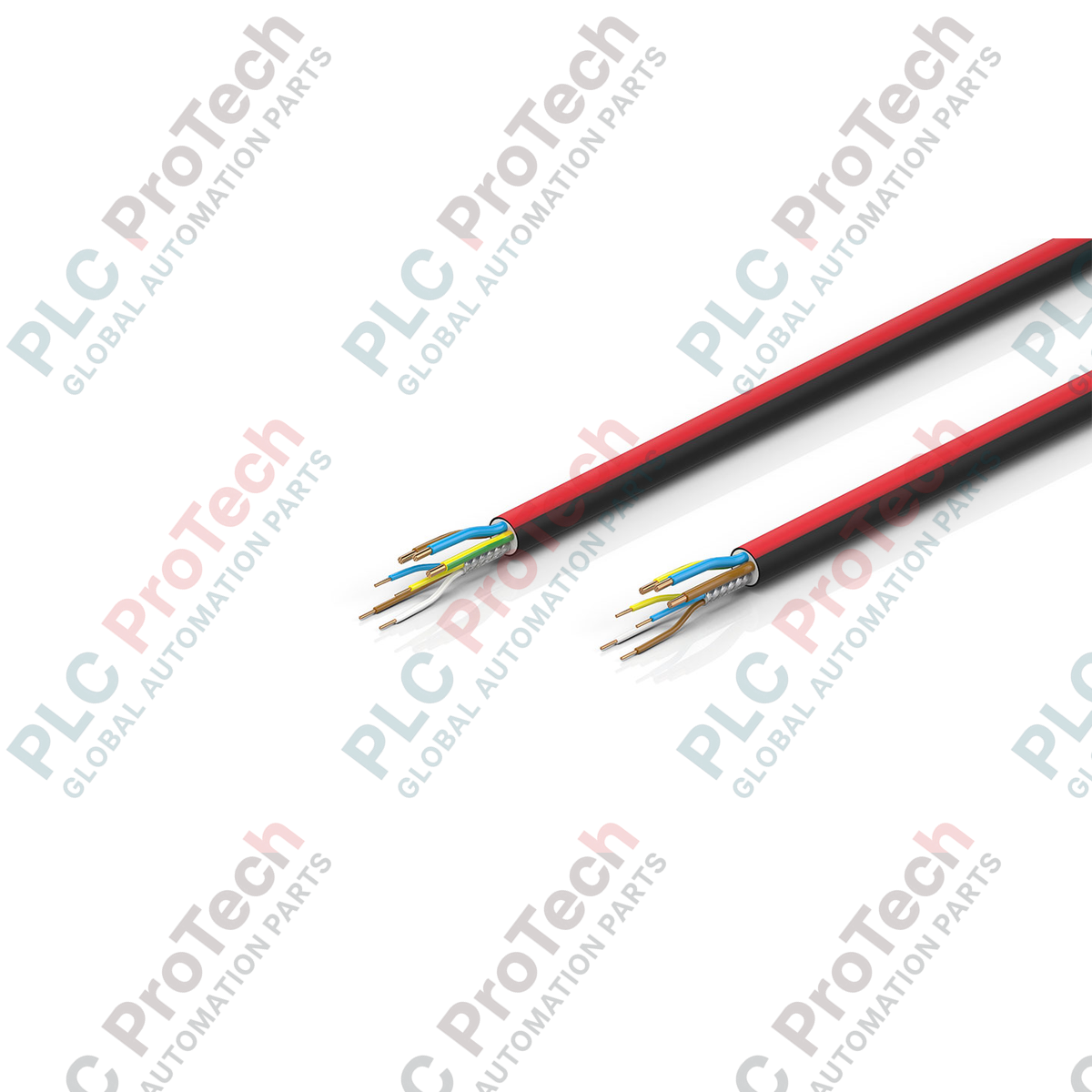

Beckhoff ZB7210-0500 EtherCAT P Cable

Description

Designed for high-performance industrial motion and control networks, the Beckhoff ZB7210-0500 serves as a robust EtherCAT P cable optimized for simultaneous high-speed data and power transmission. Built to withstand the rigorous mechanics of automated machinery, this cable integrates Ethernet communication and auxiliary power distribution within a single wear-resistant jacket. It is engineered specifically to eliminate redundant cabling in decentralized I/O structures and servo-drive applications.

Features

• Drag-Chain Optimization: Built with highly flexible conductors and core design optimized for continuous bending and torsional movements.
• Combined Architecture: Features a dual-purpose layout combining 4-core Ethernet data transmission with 3-core high-current power supply.
• PUR Jacket: Formulated with a polyurethane jacket that provides exceptional resistance to industrial oils, coolants, mechanical abrasion, and tearing.
• Standardized Identification: Finished in black with a distinct red stripe to clearly identify and segregate EtherCAT P runs from standard network channels.

Applications

• Dynamic cable carriers and drag-chains on multi-axis CNC machines and robotic cells.
• Decentralized fieldbus distribution networks utilizing Beckhoff EtherCAT P I/O box modules.
• Automated material handling, packaging machinery, and high-speed sorting systems requiring localized power distribution.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The ZB7210-0500 cable is specifically optimized for physical EtherCAT P networking topologies. It cannot be terminated directly with standard RJ45 or standard D-coded M12 connector pins meant for standard EtherCAT. Field engineers must pair this cable exclusively with EtherCAT P-coded connectors (such as the Beckhoff ZS7x00 series) to preserve proper polarity and physical alignment of the power pins.

Application Pitfalls & Engineering Notes

When laying this cable in tight drag chains, ensure that the minimum bending radius (typically 10 times the outer diameter for dynamic applications) is maintained. With an 11.1 mm outer diameter, avoid bending radii tighter than 111 mm. Exceeding this limit under continuous high-speed cycling will result in premature mechanical degradation of the 2.5 mm2 power conductors, leading to localized heating or voltage drops.

Commissioning & Wiring Tips

During field stripping of the PUR outer jacket, use specialized rotary stripping tools set to a precise depth to prevent nicking the internal insulation of the AWG 22 data cores. Because this specific variation does not contain an overall metallic shield, avoid routing this cable directly adjacent to high-EMI sources such as unshielded variable frequency drive motor leads.

Installation Guidelines
