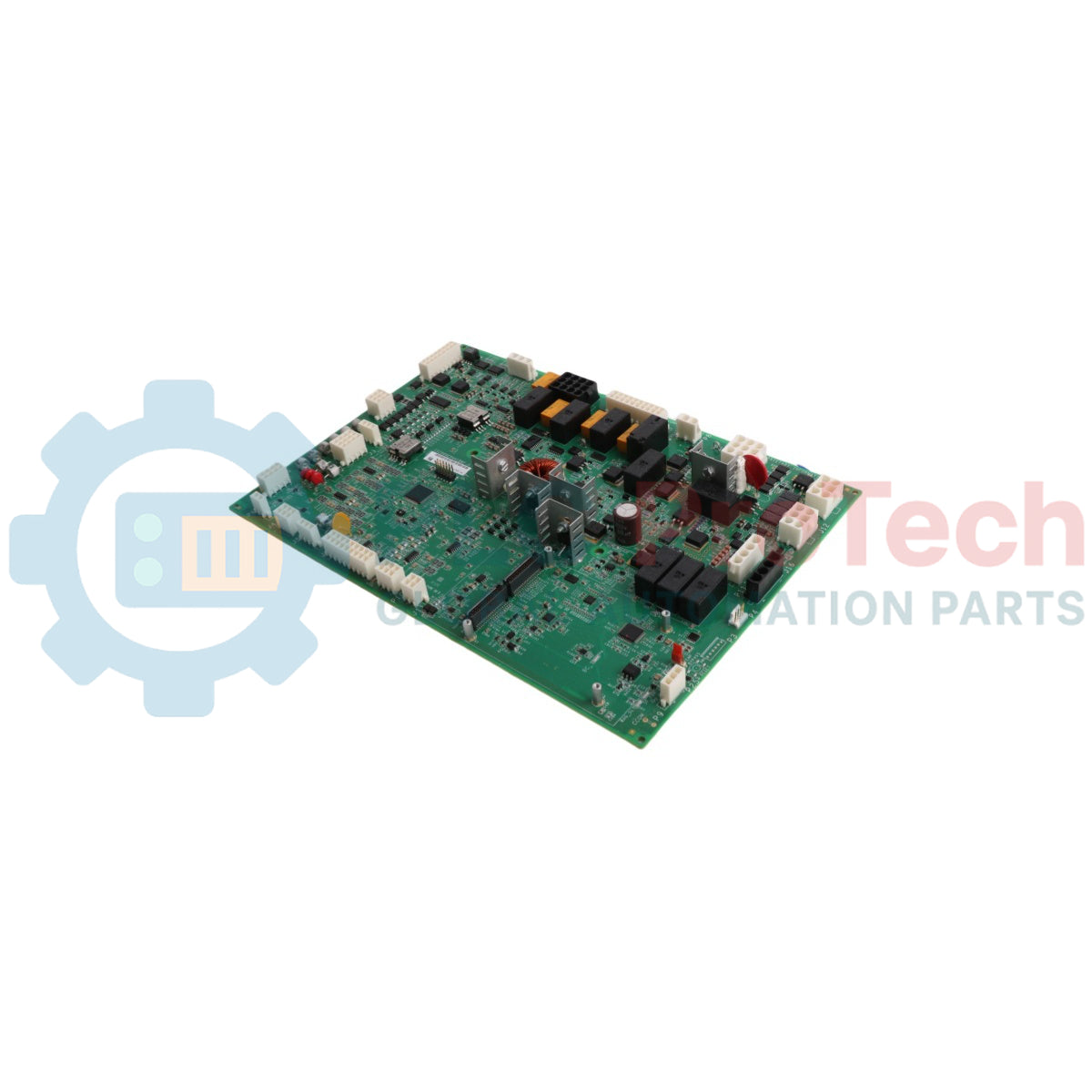

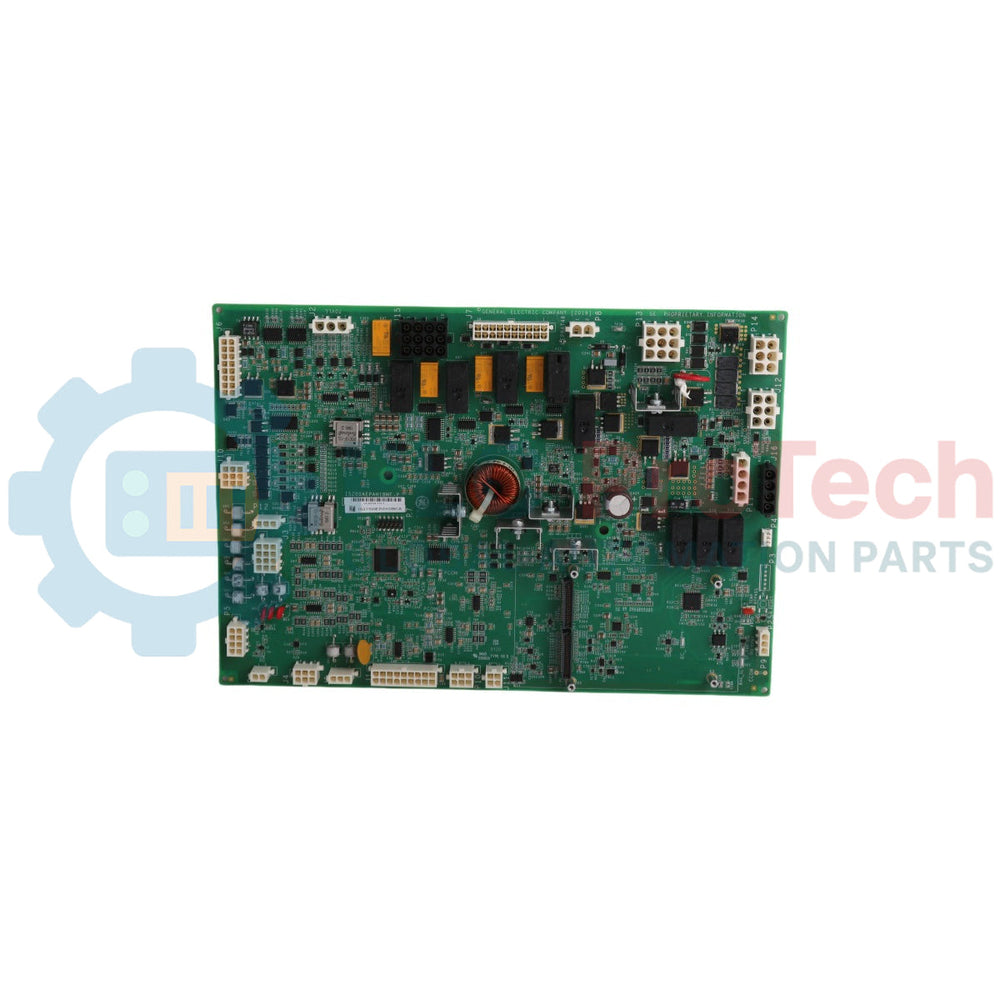

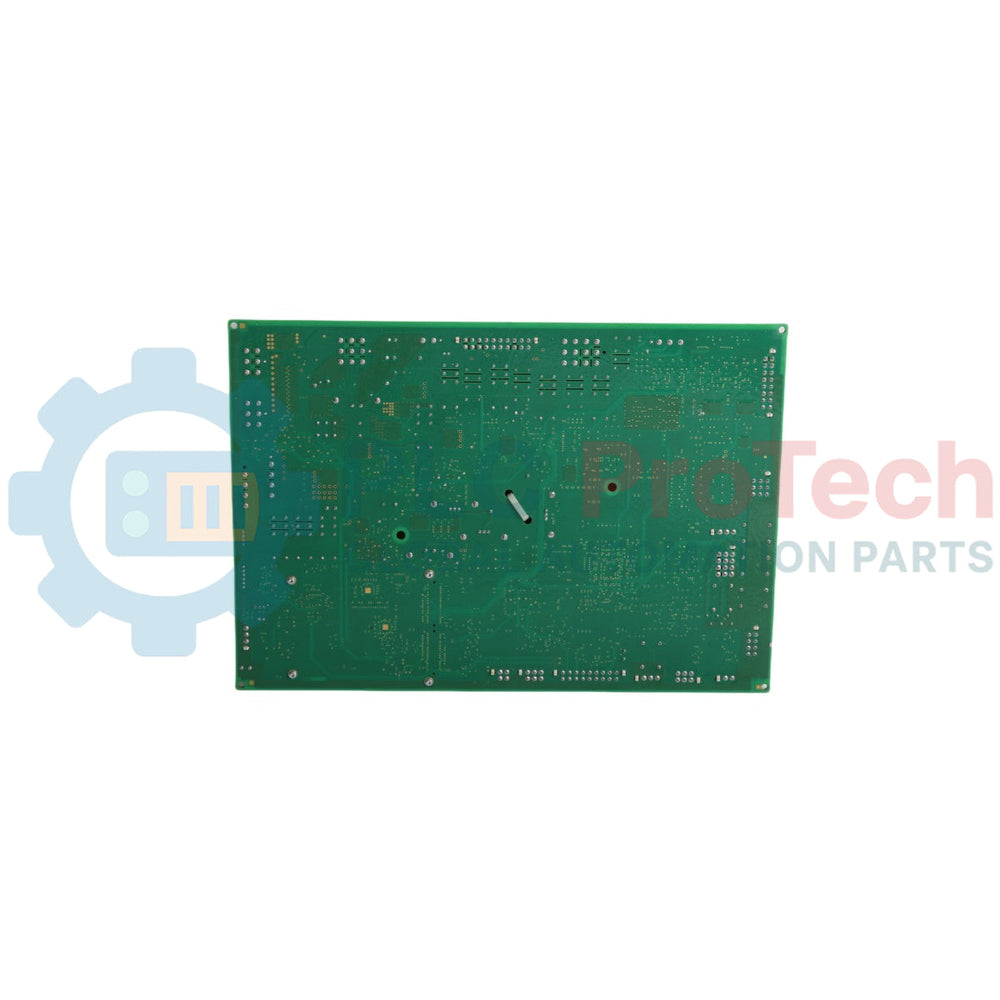

General Electric IS215WEPAH2B Mark VIe Speedtronic Wind Energy Pitch Axis Board

Description

The IS215WEPAH2B is a wind energy pitch axis board manufactured by GE Energy for the Mark VIe Speedtronic Series wind turbine control system automated drives. This main circuit assembly functions as a high-reliability controller that monitors and adjusts blade positioning, dynamic motion vectors, and signal routing inside a wind turbine pitch drive. The IS215WEPAH2B possesses an intricate hardware infrastructure comprising 29 discrete and analog inputs alongside 14 multi-style outputs. To process specialized rotation feed loops, the device utilizes a built-in incremental encoder input paired with dual pulse-width modulated (PWM) control outputs. For enhanced processing capability and mechanical integration, the core module features two attached daughterboards designated as the AEPAH1B and the BPPC. Additionally, the assembly is built with a thorough layer of conformal coating to maintain physical circuit board safety under rigorous automation operations.

Features

• Controls and regulates wind turbine blade positioning and pitch axis rotation vectors
• Features a certified B-rated primary functional factory revision
• Fully treated with a specialized layer of conformal PCB coating for protection against environmental breakdown
• Interfaces with an incremental encoder input to map quick alterations in blade direction and motion
• Incorporates dual pulse-width modulated (PWM) control outputs to reduce the average power of applied signals
• Built with a multi-board topography hosting two integrated daughterboards (AEPAH1B and BPPC)
• Integrates two onboard RS-485 interfaces to maintain multi-point serial communications

Applications

• Utility-scale wind turbine pitch axis tracking and drive regulation
• Real-time rotor blade feathering loop adjustment systems
• Dual-channel PWM power regulation in wind drive systems
• High-density industrial serial bus data collection

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Daughterboard Inspection: Prior to mounting, verify the mechanical alignment and interlocking stability of the pre-attached AEPAH1B and BPPC daughterboards.
• Wiring Separation: Route your discrete input lines separately from the low-signal analog input paths to minimize electromotive interference across the card.
• Encoder Configuration: Link the feedback sensor directly to the dedicated incremental encoder channel to guarantee immediate tracking response loops during wind gusts.
• Environmental Safety: Install the assembly inside an enclosed climate-protected drive bay to supplement the onboard conformal coating protection.
