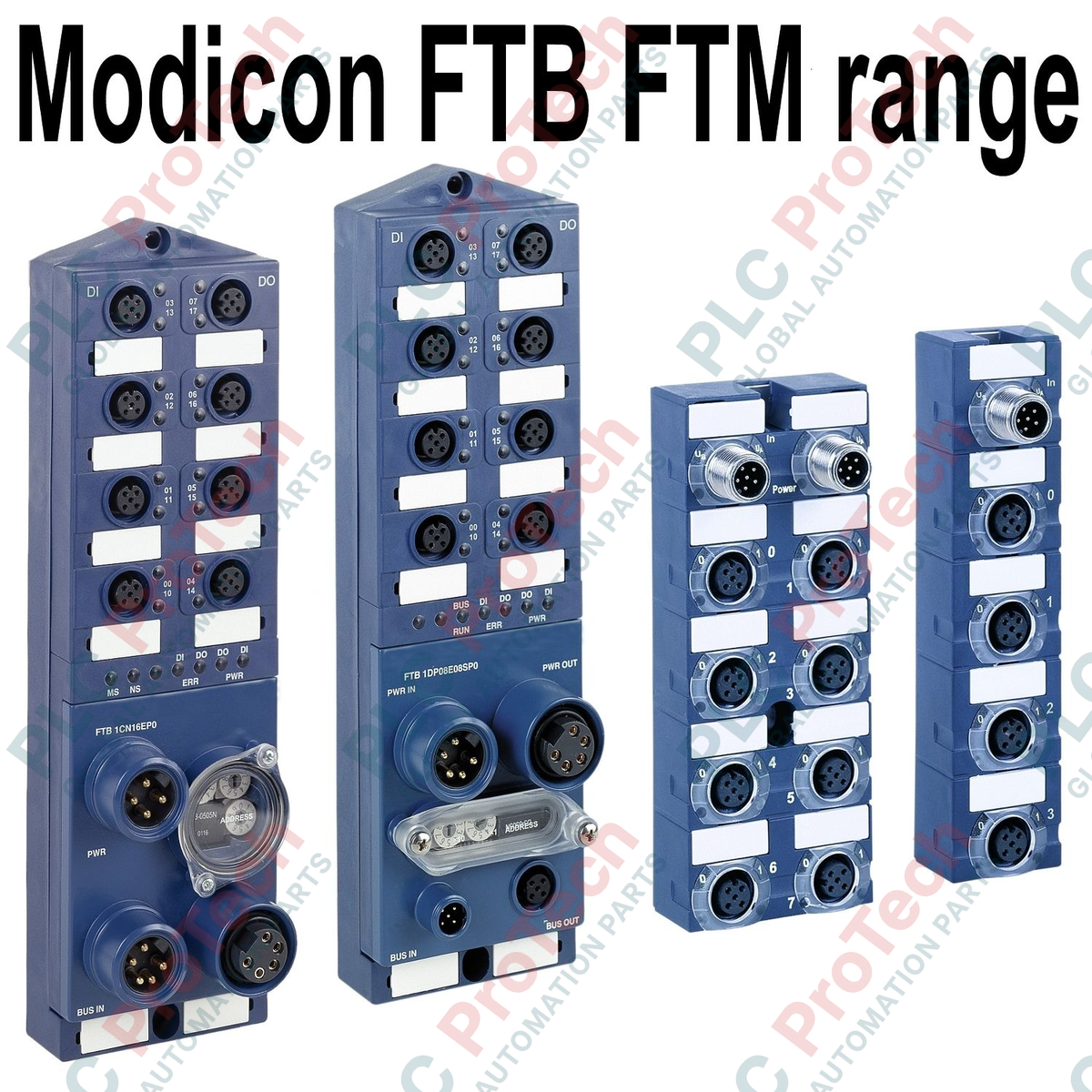

Schneider Electric FTB1IB16EP1 Advantys FTB IP67 Digital Module

Description

The FTB1IB16EP1 is an Advantys FTB IP67 monoblock splitter box designed for distributed I/O applications. Featuring 16 digital inputs, this module is specifically engineered for Interbus communication networks. The monoblock design, combined with its IP67 rating, ensures robust protection against dust and water immersion, making it suitable for decentralized installation directly on machines in harsh industrial environments. Its durable plastic construction offers an excellent balance of resilience and lightweight performance.

Features

• Series: Advantys FTB
• Function: 16-input digital monoblock splitter box
• Communication: Interbus
• Protection Rating: IP67 (dust-tight and water-resistant)
• Construction: Durable plastic monoblock design

Applications

• Decentralized I/O systems in industrial automation
• Machine-level sensor signal collection
• Harsh environment installations where IP67 protection is required
• Interbus-based industrial communication architectures

Technical Specifications

Installation Guidelines

• Mounting: Designed for decentralized installation directly at the machine level. Ensure the module is securely mounted using the integrated mounting points.
• Environment: While IP67-rated, avoid prolonged submersion in liquids or exposure to high-pressure cleaning systems unless specified in the detailed product manual.
• Wiring: Use appropriate M8 or M12 connectors (depending on version) to maintain the IP67 seal. Ensure all unused ports are capped with protective covers to prevent ingress.
• Grounding: Ensure the module is properly grounded according to Interbus specifications to protect against electrical surges and noise interference.
• Connectivity: Connect the Interbus communication cable and the 24V DC power supply, ensuring that the total current load does not exceed the specified limits for the module.
