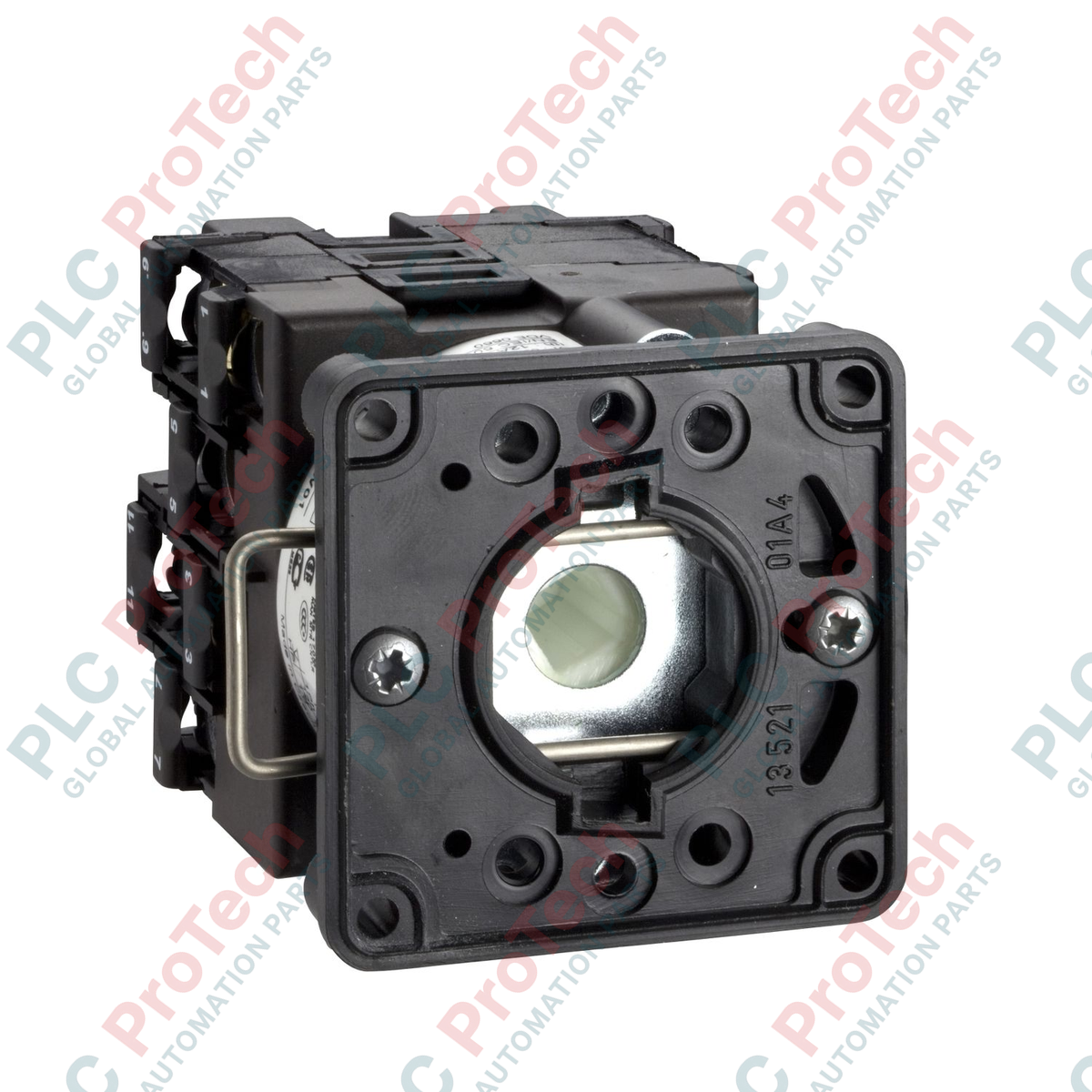

Schneider K1H014N Switching Block

Description

The K1H014N is a specialized switching block (step switch) manufactured by Schneider Electric, designed for use in industrial control and automation applications. This compact component is engineered to provide reliable mechanical switching functionality, serving as a critical accessory for electrical distribution and motor control systems.

Designed with space efficiency in mind, the K1H014N features a lightweight and compact form factor, making it ideal for integration into crowded control cabinets or specialized control panels. As a part of Schneider Electric’s extensive range of electrical accessories, this switching block offers the durability and precision required to maintain consistent system control in demanding professional environments.

Features

• Compact and lightweight switching block (step switch)
• High-quality design for industrial reliability
• Compact dimensions (11.00 cm x 6.50 cm x 6.50 cm)
• Optimized for easy handling and installation
• Compatible with various industrial electrical systems

Applications

• Control panel switching and signal routing
• Step-switching operations in industrial machinery
• Automation system component integration
• Electrical distribution and load management accessories

Technical Specifications

Installation Guidelines

• Mounting: Ensure the switching block is securely mounted within a clean, dry, and protected enclosure. Follow the specified mounting orientation to ensure proper mechanical operation.
• Wiring: Connect terminal points according to the provided electrical schematic. Use appropriate wire gauges and terminal tools to ensure secure contact.
• Environment: The component is intended for use in indoor industrial environments. Avoid exposure to high concentrations of conductive dust, moisture, or extreme thermal variations.
• Maintenance: Periodically inspect terminal connections for tightness and ensure the switching mechanism remains free from debris or obstruction.
• Safety: Always isolate power supplies before installing or performing maintenance on the switching block to prevent electrical shock.
