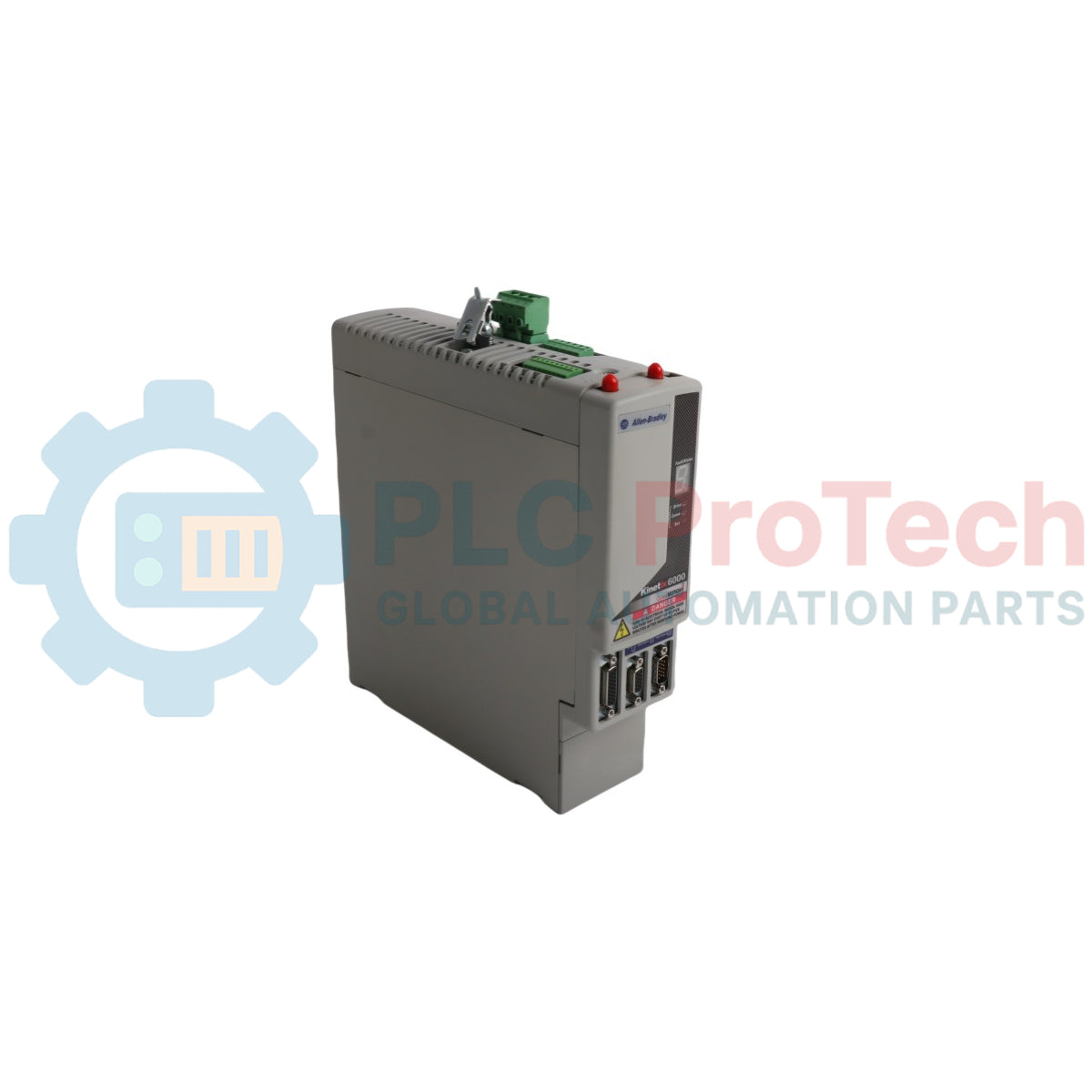

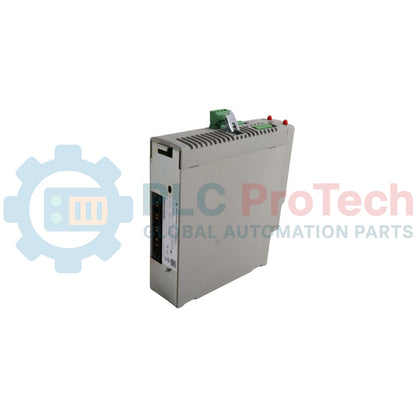

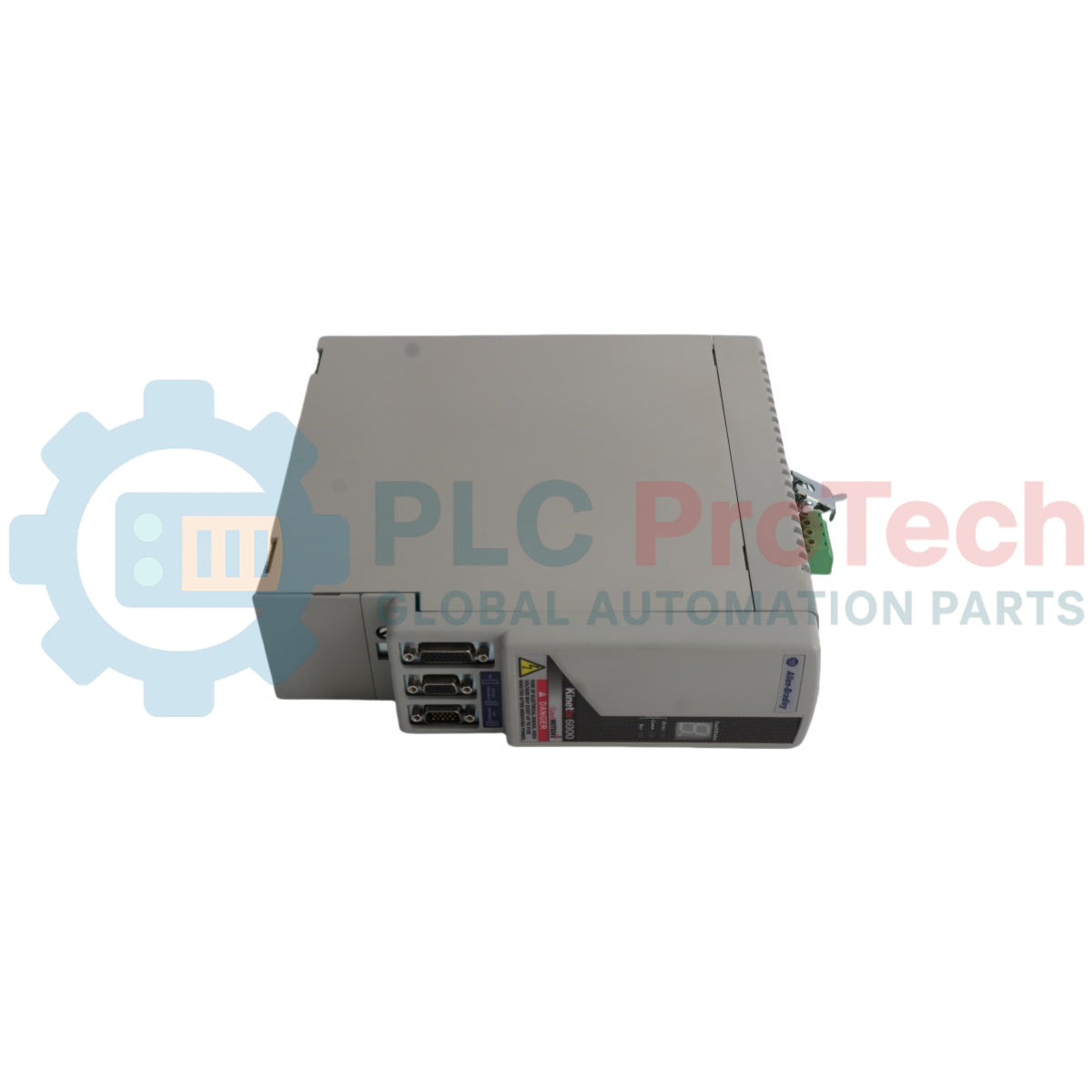

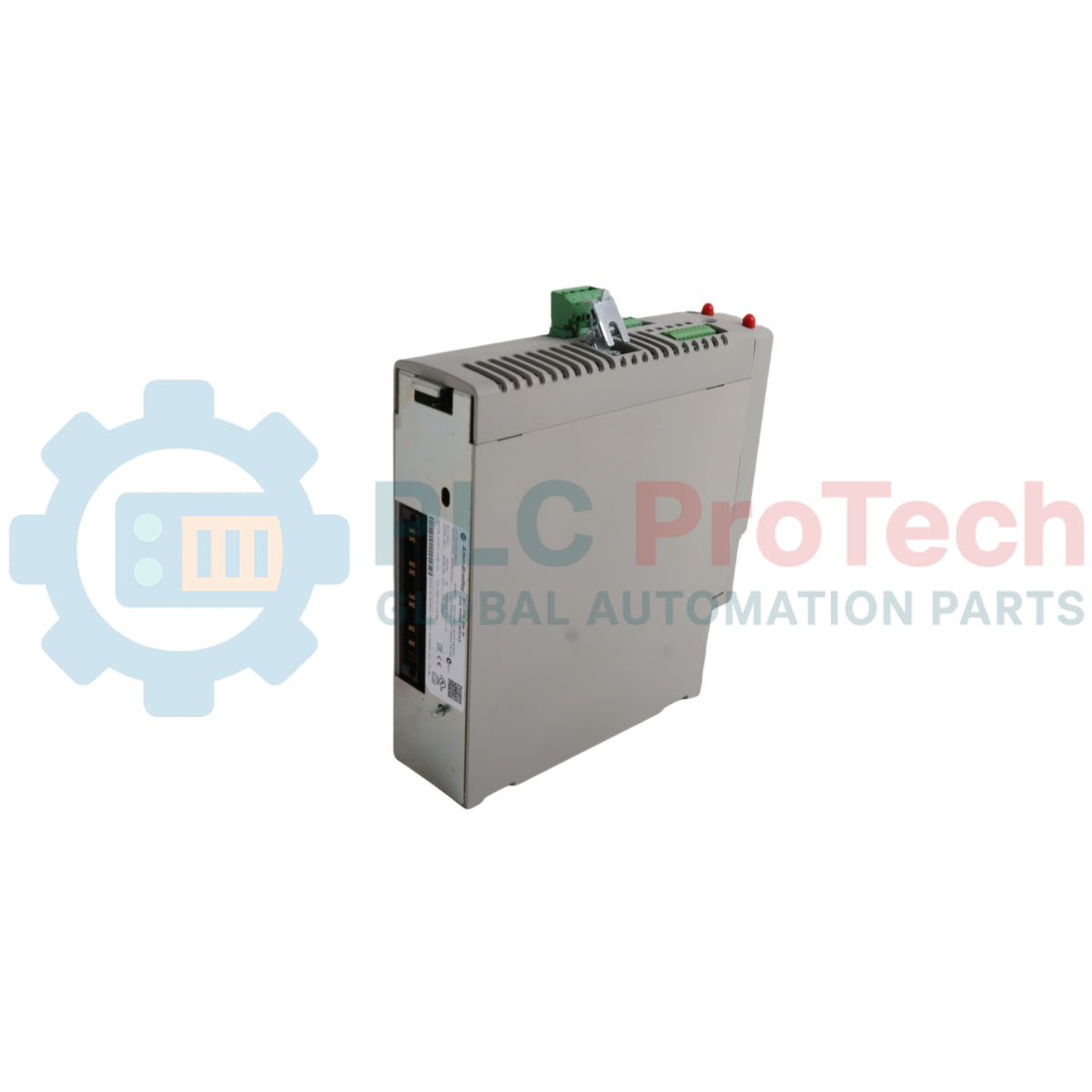

Module d'axe modulaire Kinetix 6000 Allen-Bradley 2094-BM01-M

Product Overview and Motion Control Utility

The 2094-BM01-M (2094BM01M) is a high-performance Modular Axis Module belonging to the Kinetix 6000 multi-axis servo drive family. Designed for integrated motion applications, this module provides the power and control necessary to drive brushless servo motors with extreme precision. The "M" designation indicates Integrated Motion on EtherNet/IP or SERCOS interface compatibility, allowing it to be seamlessly orchestrated by ControlLogix or GuardLogix controllers. By utilizing a modular "Power Rail" design, the 2094-BM01-M significantly reduces cabinet space and simplifies wiring, making it the preferred choice for high-throughput packaging, robotic assembly, and converting machinery where synchronized multi-axis movement is mission-critical.

Hardware Architecture and Power Dynamics

The 2094-BM01-M operates as part of a drive system where power is distributed via a common backplane (Power Rail). This architecture allows for shared DC bus configurations, where regenerative energy from decelerating motors can be utilized by other axes, dramatically increasing overall energy efficiency.

• Inverter Technology: Utilizes advanced IGBT (Insulated Gate Bipolar Transistor) technology for high-frequency PWM switching, ensuring smooth torque delivery and minimal motor noise.

• Safety Integration: Features built-in Safe Torque Off (STO) functionality (when used with appropriate safety headers), certified to ISO 13849-1 (PLe/Cat 3) to prevent unexpected motor restarts.

• Feedback Support: Compatible with a variety of feedback devices, including high-resolution absolute encoders (Stegmann, Hiperface) to provide sub-micron positioning accuracy.

• Modular Scalability: The axis module easily snaps onto the 2094-PRSx Power Rail, allowing for rapid system expansion or hot-swappable maintenance.

Technical Specifications

Integrated Technical FAQ

What is the primary difference between this Axis Module and an IAM module?

The 2094-BM01-M is a follower (Axis Module) and does not contain a dedicated power supply. It must be paired with an Integrated Axis Module (IAM) which converts the incoming AC line power to a common DC bus for all axis modules on the rail.

How does the module handle thermal protection?

The module contains an internal thermistor that monitors the heatsink temperature. If the temperature exceeds the safe operating threshold, the drive triggers a "Non-Resettable Fault," disabling the power stage to protect the IGBTs from permanent damage.

Is this module compatible with Kinetix 6200 components?

Yes. The Kinetix 6000 modular design allows for a migration path. The 2094-BM01-M can often be used in mixed environments, though specific control headers may be required to match the communication protocol (SERCOS vs. EtherNet/IP).

Engineering & Installation Protocols

• Mounting Torque: When securing the module to the Power Rail (2094-PRS), ensure the mounting screws are tightened to 2.26 Nm (20 lb-in). Improper torque can lead to high-resistance connections on the DC bus, causing nuisance over-voltage faults.

• Shielding and Bonding: Always use factory-braided motor cables with 360-degree shield termination at the drive’s grounding plate. High-frequency switching noise from the 2094-BM01-M can interfere with low-voltage feedback signals if cables are not properly shielded.

• Safe Torque Off (STO) Wiring: If the safety function is not being utilized, the STO header must be properly jumpered. Failure to provide a dual-channel 24 VDC signal to the STO inputs will prevent the drive from enabling (Drive Not Ready status).

Engineering Advantages

The 2094-BM01-M excels in high-duty cycle applications. Its ability to deliver a peak current of 14.9 A allows for aggressive acceleration ramps, which are essential for reducing cycle times in picking and placing operations. The modular nature of the Kinetix 6000 hardware means that in the event of a failure, a single axis can be replaced in minutes without disturbing the wiring of adjacent drives, providing a significant reduction in Mean Time to Repair (MTTR).
