CP7203-0020-0060 | BECKHOFF | Panel PC économique

Description

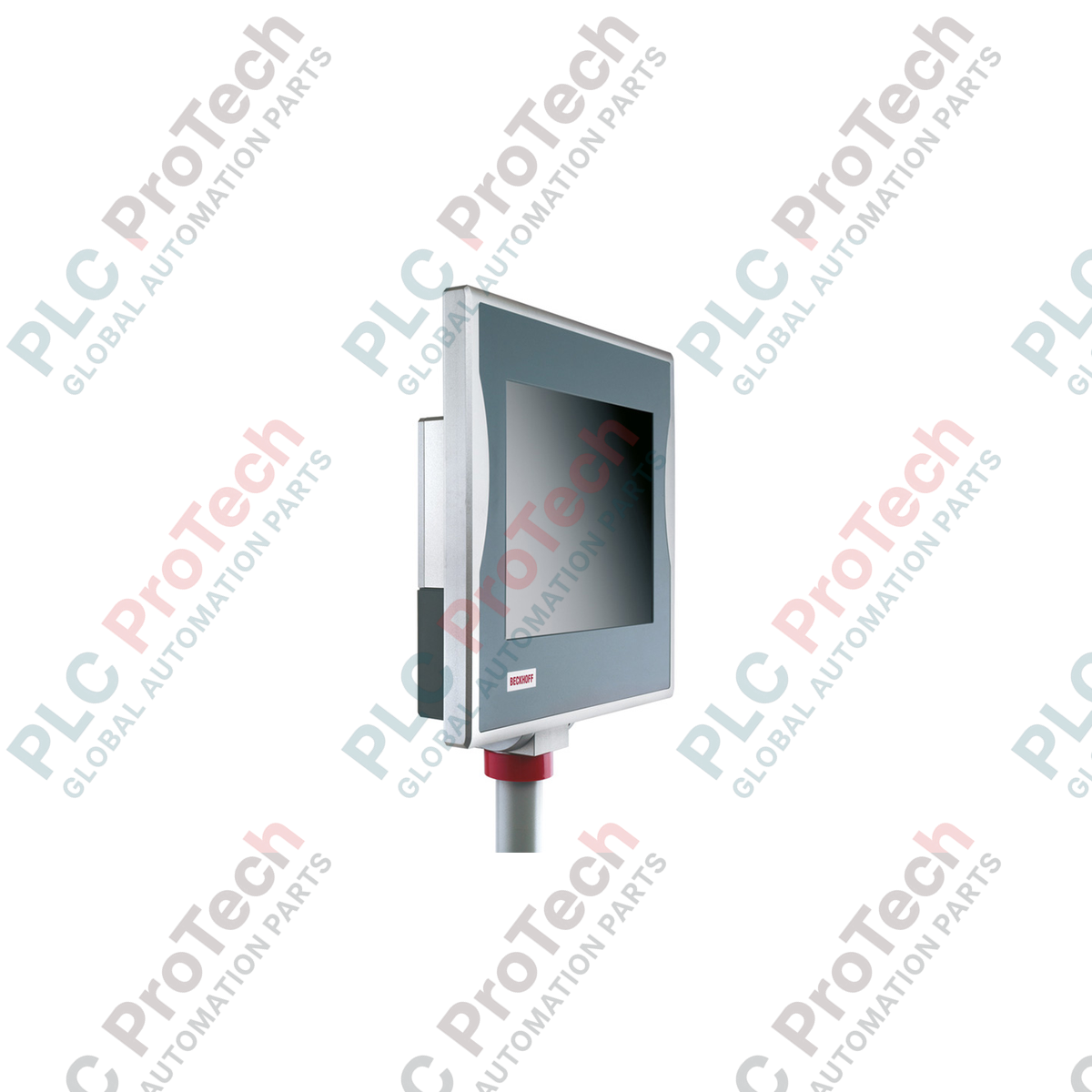

Designed for direct mounting arm installation, the BECKHOFF CP7203-0020-0060 functions as a high-performance industrial control interface in demanding manufacturing environments. Featuring an IP65-rated aluminum housing, this 19-inch Economy Panel PC combines a high-resolution display with robust physical protection against dust and moisture ingress. The system is engineered to mount seamlessly onto Rittal or Rolec 48 mm tube systems, enabling flexible positioning and ergonomic operation on the factory floor.

At the core of this device is an Intel Celeron G3900TE dual-core processor mounted on a industrial-grade 3.5-inch motherboard, supported by 4 GB of high-speed DDR4 RAM. The thermal design relies on passive heat dissipation via an external heat sink, complemented by an internal circulating fan that ensures even heat distribution across all housing walls. This thermal management system maintains operational stability without requiring external air exchange, keeping internal components protected from airborne contaminants.

Features

• Sturdy aluminum housing equipped with IP65 ingress protection for harsh industrial environments.
• 19-inch display with 1280 x 1024 resolution and customizable single-finger touch or touchpad operation.
• Intel Celeron G3900TE 2.3 GHz processor on a 3.5-inch motherboard architecture.
• Robust connectivity with dual on-board 100/1000BASE-T Ethernet interfaces (one routed through a push-pull external connector).
• Integrated SATA RAID 1 controller for redundant data storage configurations.
• Flexible media slots with 1 x 2.5-inch drive bay and 1 x CFast slot.
• Rotatable mounting arm adapter compatible with Rittal and Rolec 48 mm tube mounting solutions.

Applications

• Automotive assembly and production lines
• Metal processing and CNC machinery interface
• Packaging, sorting, and material handling systems
• Process control monitoring in oil, gas, and chemical utilities

Technical Specifications

Installation Guidelines

To ensure proper installation and longevity of the system, adhere to the following engineering guidelines:

• Mounting: Mount the assembly using the integrated adapter onto a compatible 48 mm Rittal or Rolec tube system. Verify that the tube is secure and capable of handling the 5 kg device weight plus dynamic loads.
• Thermal Clearance: A minimum clearance of 20 cm (7.9 inches) must be maintained around all sides of the housing to facilitate effective convective cooling via the integrated heat sink.
• Cable Protection: Route cables through the mounting arm tube and secure them inside the wiring area. Ensure unused IP65 connector slots are sealed with protective caps to maintain the unit's ingress rating.
• Power Connection: Provide a stable 24 V DC power feed. Route DC power lines away from high-voltage AC cables to minimize electromagnetic interference.
