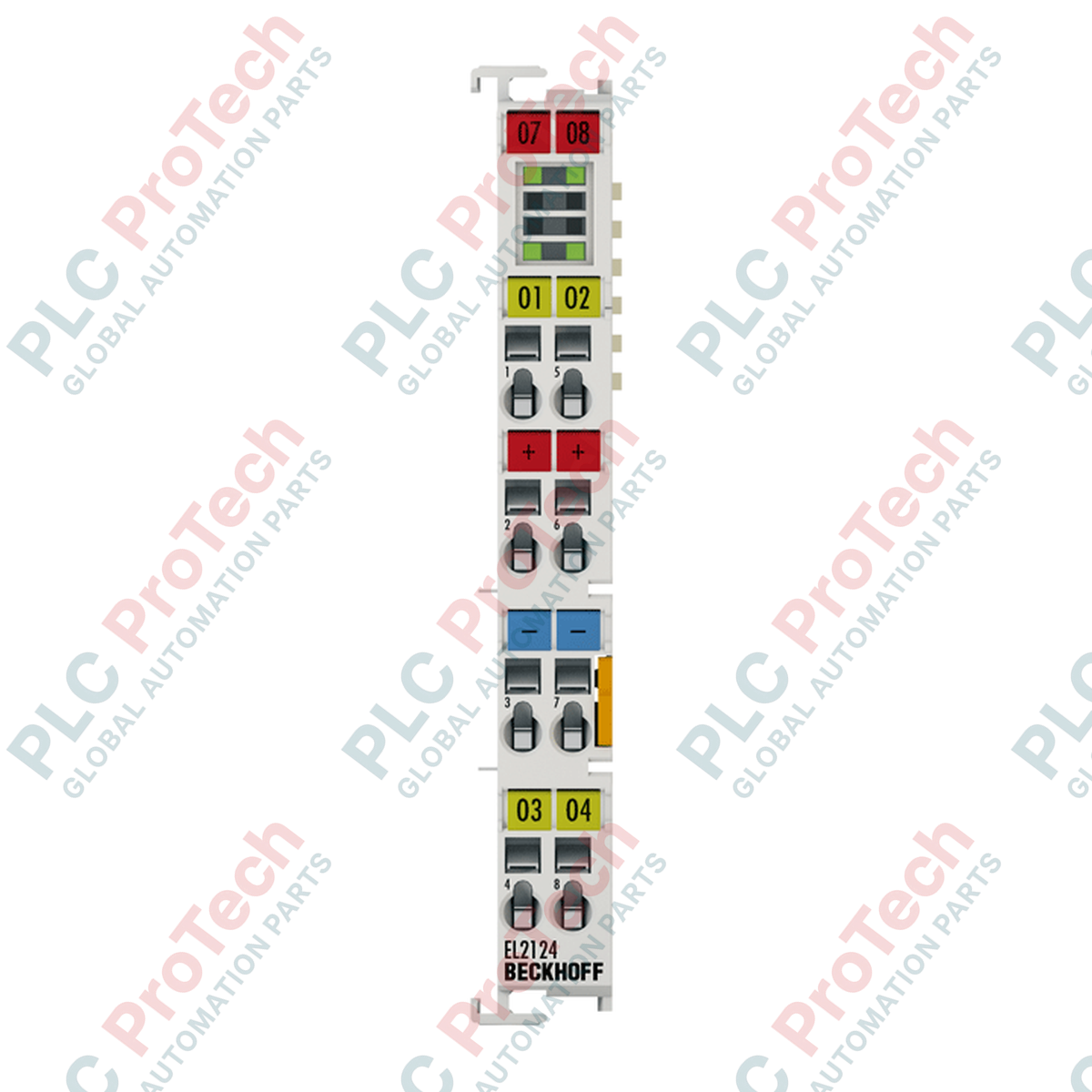

EL2124 | BECKHOFF | Bornier EtherCAT

Description

Integrating directly into high-speed automation architectures, the Beckhoff EL2124 provides fast, precise digital control over four independent 5 V DC channels. Engineered for rapid switching dynamics, this EtherCAT Terminal utilizes a CMOS push-pull output design capable of actively sourcing and sinking up to 20 mA per channel. Ideal for interfacing with low-voltage logic levels, optocouplers, and high-frequency digital receivers, the module features sub-microsecond propagation delays to ensure real-time response times within critical control loops.

Key Features

• High-Speed Signal Processing: Sub-microsecond switching times (typically under 1 us for both turn-on and turn-off phases) designed for time-critical motion and gating control.
• Four CMOS Push-Pull Outputs: Supports active high and active low signaling, providing a robust 5 V DC logic driving capacity.
• Integrated Short-Circuit Protection: Ruggedized engineering design protects the module against wiring faults and overcurrent conditions on all output channels.
• Comprehensive Galvanic Isolation: 500 V electrical isolation between the E-bus and the field potential safeguards upstream backplane communications.

Industrial Applications

• High-frequency optocoupler and pulse receiver interfacing
• Low-voltage logic level shifting and micro-controller integration
• High-speed material sorting, triggering, and gating systems
• Testbench automation and electronic hardware-in-the-loop (HIL) simulations

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The terminal integrates directly into standard TwinCAT 2.x and 3.x system structures. While utilizing the same physical footprint as typical 24 V DC terminals, the unit requires dedicated 5 V DC logic-side distribution. Ensure that any downstream configurations do not inadvertently route field voltages above the rated 5 V threshold to this module.

Application Pitfalls & Engineering Notes

Because this module utilizes standard CMOS push-pull outputs, it actively drives the signaling line both high and low. Avoid connecting multiple output channels in parallel to boost current driving capabilities, as minor switching delays between channels can induce transient short circuits. Additionally, verify the E-bus power supply margins of your coupler segment; a single terminal consumes 130 mA typical E-bus current.

Commissioning & Wiring Tips

For signal transmission distances exceeding 3 meters, shielded twisted-pair cabling is strongly recommended to minimize environmental electromagnetic interference. Ground the cable shield securely at the control panel boundary plate to isolate high-speed CMOS switching channels from structural floor noise.

Installation Guidelines
