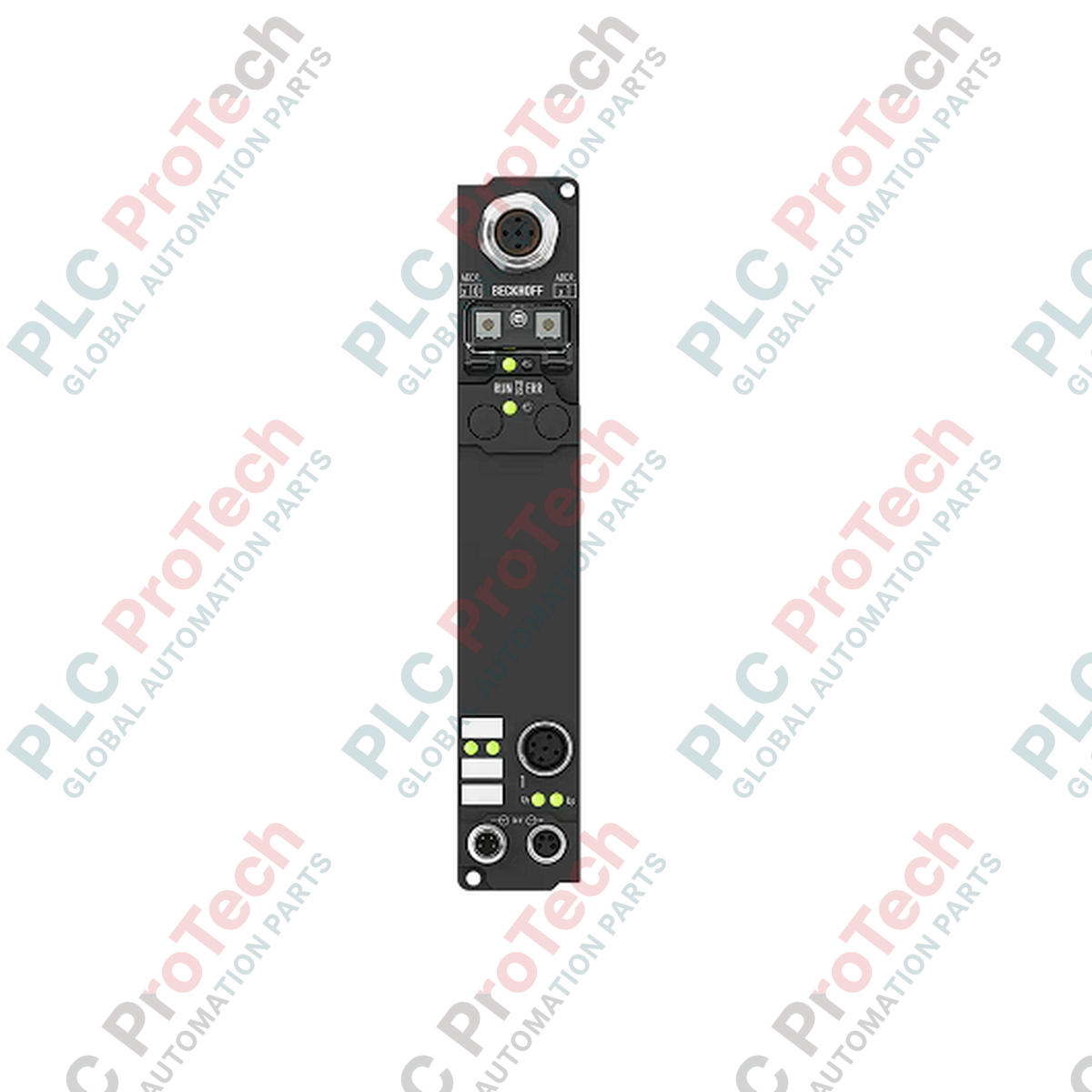

IP6022-B810 | Beckhoff | Boîtier Fieldbus

Description

Designed for robust serial data transmission in demanding industrial environments, the BECKHOFF IP6022-B810 Fieldbus Box serves as a reliable interface for connecting RS422 or RS485 devices directly to fieldbus networks. This compact, decentralized module enables peer-to-peer serial communication, allowing devices such as barcode scanners, operator terminals, and measuring sensors to integrate seamlessly into high-level control systems.

The module supports configurable data transfer rates ranging from 1200 to 115,200 baud, with a factory preset of 9600 baud. To prevent data loss during high-speed operations, the IP6022-B810 features an internal buffer memory comprising a 128-byte receive buffer and a 16-byte transmit buffer. System configuration and parameterization are quickly handled via the KS2000 software tool, providing flexible process image mapping to fit specific application architectures.

Features

• Supports standard RS422 and RS485 physical layer interfaces for flexible differential serial communication.
• Adjustable baud rates up to 115,200 baud with hardware-level transmit and receive buffers.
• Robust IP67-rated encapsulation prevents ingress of water, dust, and particulate matter.
• Standard M12 and M8 connector interfaces simplify installation and eliminate the need for protective enclosures.
• Integrated galvanic isolation up to 500 V protects sensitive control electronics from fieldbus loop interference.
• Compact, space-saving polyamide housing with dual-point mounting designed for direct machine installation.

Applications

• Factory automation and assembly line serial device integration.
• Process control systems utilizing long-distance RS422/RS485 instrumentation.
• Material handling systems for connecting barcode readers and weight scales.
• Decentralized test and measurement setups requiring high environmental resistance.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Mount directly to flat surfaces using the two 3.5 mm diameter fixing holes designed for M3 screws.
• Grounding: Ensure the module is grounded properly through its mounting screws or dedicated functional earth connection to minimize EMC disturbances.
• Cabling: Use shielded twisted-pair copper cables (minimum 2 x 0.25 mm²) for long-distance serial runs to maintain signal integrity over the maximum 500 m limit.
• Tightening Torque: Hand-tighten all M12 and M8 connectors to ensure the IP67 sealing integrity without damaging the plastic threads.

Compliance and Certifications

• CE
• UL
