Beckhoff KL1512 Terminal bus compteur Up/Down 2 canaux

Product Overview

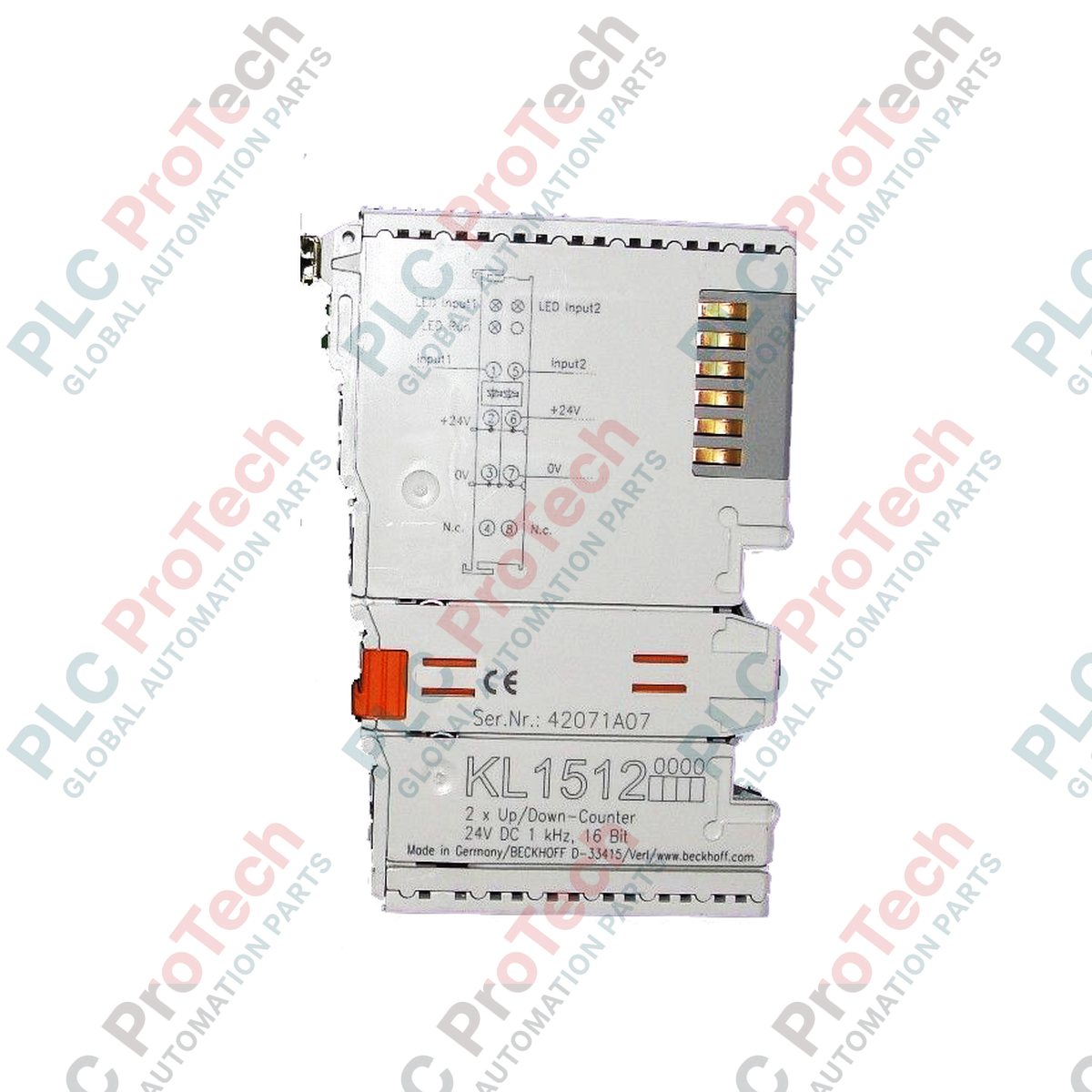

The KL1512 (KL 1512) Bus Terminal is a high-precision 2-channel up/down counter designed for seamless integration within the Beckhoff K-Bus ecosystem. Engineered for reliability in discrete manufacturing and material handling, this 16 bit module effectively counts binary pulses and transmits the real-time counter state to higher-level controllers via an electrically isolated interface. In industrial environments such as automated sorting facilities and CNC machining centers, the KL1512 serves as a critical component for position sensing and flow monitoring. Its robust galvanically isolated design ensures signal integrity even in electrically noisy environments, significantly reducing unexpected downtime and enhancing the overall deterministic performance of the automation architecture.

Technical Configuration

The KL1512 architecture is optimized for versatility and ease of deployment in fieldbus-independent applications. Each of the two independent channels can be individually configured to operate as either an up or down counter with a 16 bit depth, providing a counting range from 0 to 65535. The module features a 1 kHz base frequency, making it an ideal choice for simple counting tasks where ultra-high-speed encoder feedback is not required but accuracy is paramount. Integrated Light Emitting Diodes (LEDs) provide immediate visual diagnostics, indicating the signal state of each input. The compact 12 mm housing allows for high-density DIN rail mounting, maximizing control cabinet space while maintaining efficient thermal dissipation.

Technical Specifications

Technical FAQs

How do I switch between up counting and down counting modes on the KL1512?

The counting direction is typically defined via the control byte within the PLC process image or configured through the TwinCAT System Manager settings. This allows for dynamic adjustment based on the specific requirements of your motion sequence or process logic.

Is the KL1512 compatible with standard incremental encoders?

The KL1512 is designed for simple binary pulse counting. While it can process pulses from sensors or encoders at low frequencies (up to 1 kHz), it does not support high-speed differential signals or quadrature phase evaluation. For high-speed RS422 or 5V TTL encoder integration, the Beckhoff KL5xxx series is recommended.

What diagnostic features are available for troubleshooting signal loss?

The terminal provides two green status LEDs that mirror the input state. If the LED fails to trigger during a physical pulse event, engineers should verify the 24 VDC field power supply and check the wiring integrity at the terminal points.

Engineering & Installation Guide

• Signal Integrity & Grounding: To minimize electromagnetic interference (EMI) in long cable runs, ensure that signal wires are kept separate from high-voltage power lines. Although the KL1512 features electrical isolation, using shielded twisted-pair cables for the 24 VDC pulse inputs is recommended in high-noise environments.

• Terminal Mounting: Ensure the Bus Terminal is securely clicked onto the DIN rail (EN 60715). Maintain a clean contact surface on the gold-plated power contacts (lateral slide-in) to ensure stable K-bus communication between adjacent modules.

• Power Management: Ensure the power contact supply (24 VDC) is adequately filtered. Voltage spikes exceeding 30 VDC can damage the internal sensing circuitry. Always utilize a regulated industrial power supply for the field-side inputs.
