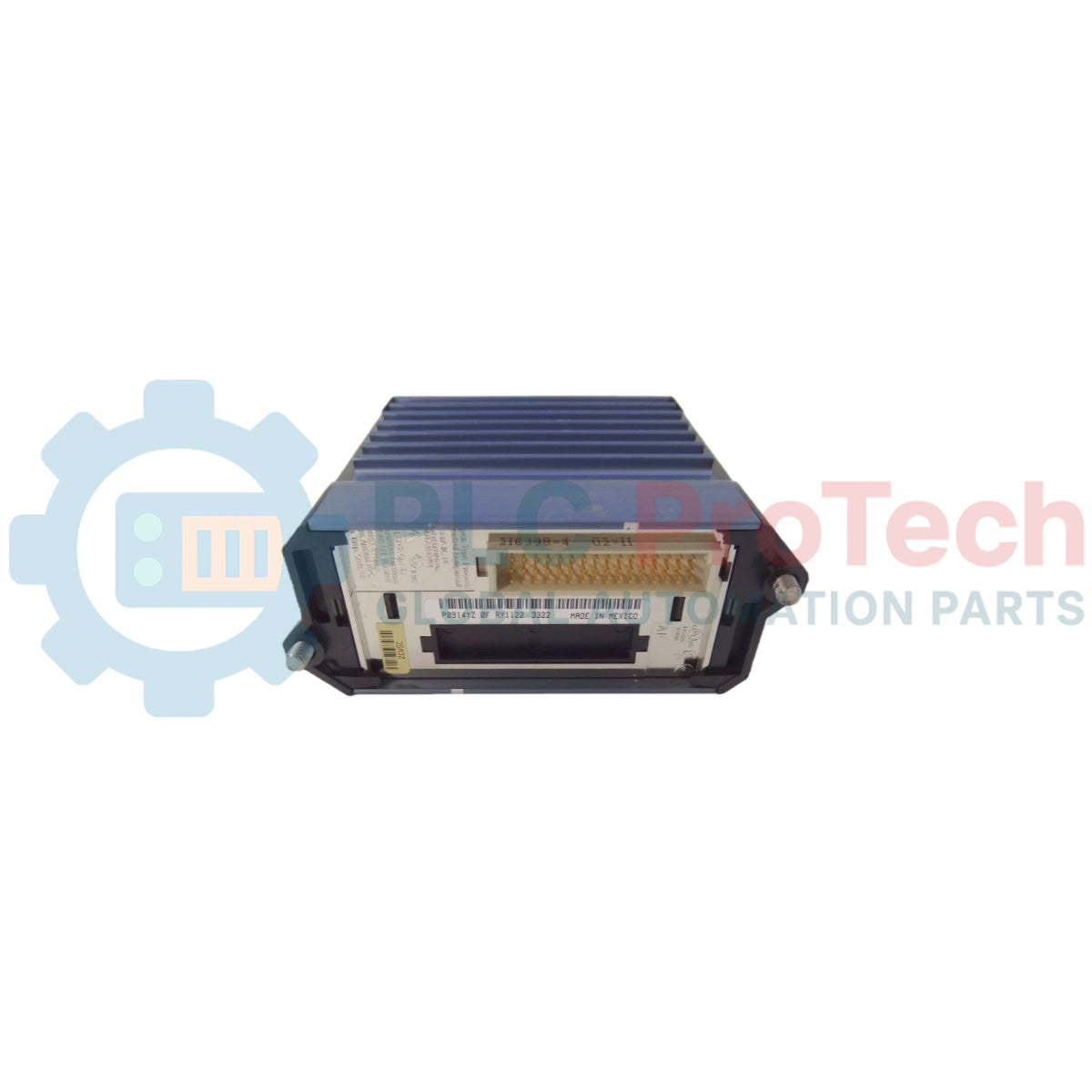

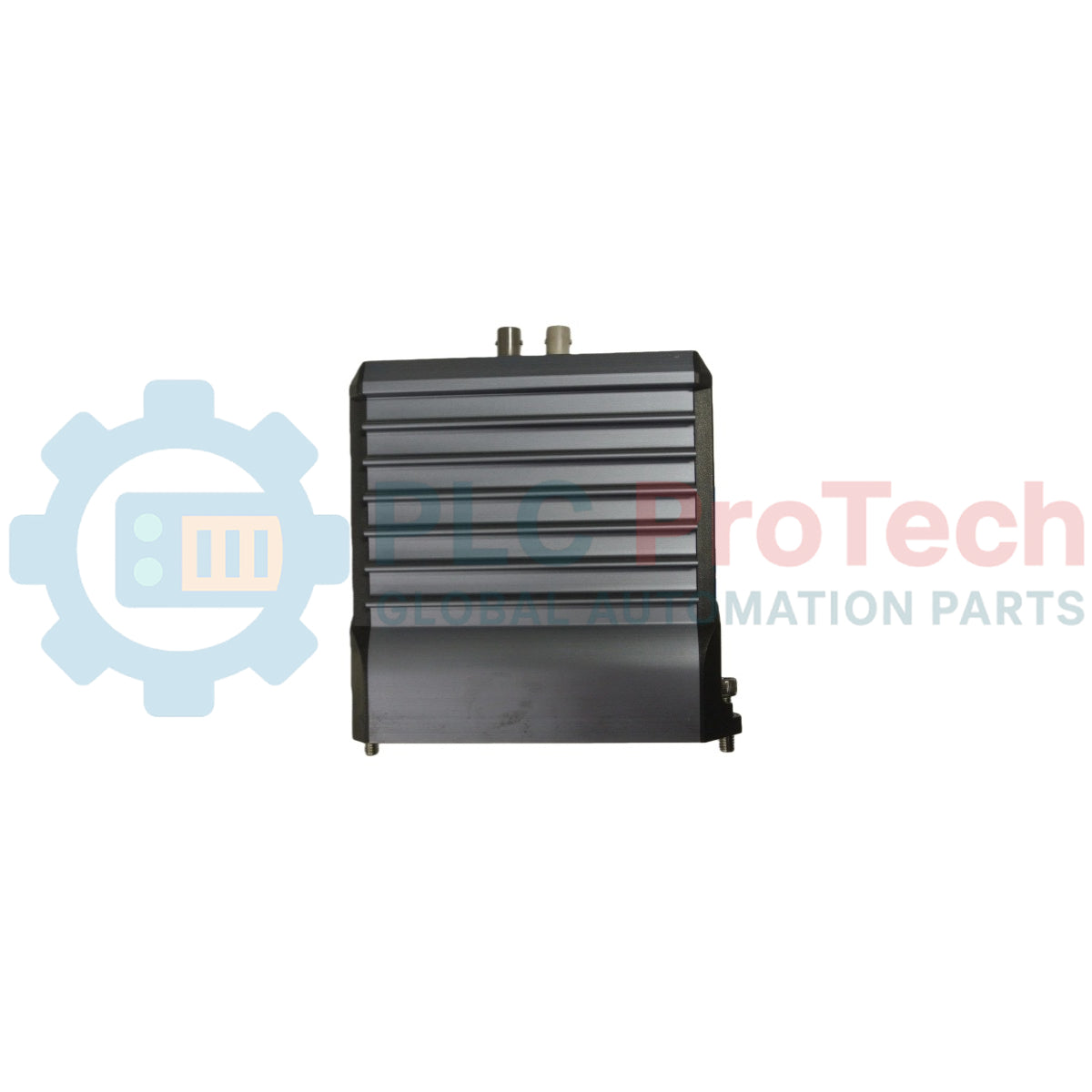

Module de communication Fieldbus Foxboro FCM2F10 P0916TQ

Product Overview

The FCM2F10 (FCM2F10) P0916TQ is a high-performance Fieldbus Communications Module engineered for the Foxboro I/A Series distributed control system (DCS). This specific variant provides a critical fiber optic interface, enabling seamless communication between the Fieldbus Processor (FBP) and remote Fieldbus Modules (FBMs). Designed for mission-critical industrial environments such as petrochemical refining, utility power generation, and large-scale mining operations, the FCM2F10 ensures high-speed data integrity over extended distances. By utilizing fiber optic media, it provides total electrical isolation and immunity to electromagnetic interference (EMI), significantly reducing unplanned downtime caused by signal degradation or lightning strikes in outdoor cable runs.

Technical Configuration (Deep Dive)

The FCM2F10 P0916TQ functions as a signal converter and repeater within the HDLC fieldbus architecture. It transitions the internal copper-based backplane signals to 2 Mbps fiber optic links.

• Fiber Optic Interface: Equipped with ST-type connectors supporting multimode fiber, allowing for fieldbus extension up to 2 km without signal regeneration.

• Redundancy Architecture: Supports dual-baud rate detection and can be deployed in redundant pairs. In a redundant configuration, if one fiber link fails, the twin module maintains the communication link to the FBM cluster without process interruption.

• P0916TQ Baseplate Compatibility: The module is designed for hot-swappable installation into standard Modular Baseplates, utilizing the high-speed Baseplate Internal Bus for power and data synchronization.

Technical Specifications

Technical FAQs

• Can the FCM2F10 P0916TQ replace an older FCM2F2 copper module?

  No, the FCM2F10 is specifically designed for fiber optic media. Replacing a copper module requires changing the cabling infrastructure to fiber and ensuring the corresponding baseplate supports fiber optic transceivers.

• What does a solid red "FAIL" LED indicate on the front panel?

  A solid red LED typically indicates a fatal hardware failure or a loss of the internal 2 Mbps clock signal. If power cycling the baseplate does not clear the error, the module requires replacement.

• Does this module require software configuration in the I/A Series Integrated Control Software?

  The FCM2F10 is largely transparent to the software; however, it must be correctly identified in the Letterbug configuration of the associated Fieldbus Processor to ensure proper diagnostic reporting.

Engineering & Installation Guide

• Fiber Bend Radius: When installing fiber jumpers to the P0916TQ ports, maintain a minimum bend radius of 30 mm. Sharp bends cause excessive decibel (dB) loss, leading to intermittent "Module Missing" errors in the DCS system.

• Dust Protection: Always keep the plastic dust caps on the ST connectors until the moment the fiber optic cable is attached. Even microscopic dust particles on the lens can attenuate the 850 nm light signal.

• Hot-Swap Protocol: While the module is hot-swappable, it is best practice to "Disable" the module via the System Management display before physical removal to prevent transient bus errors.

Engineering Advantages

The FCM2F10 is built for Level G3 (Harsh) environments as defined by ISA-S71.04, featuring conformal coating to resist chemical corrosion. Its fiber optic physical layer provides an inherent "Air Gap" that protects the central FCP270/FCP280 processors from field-side electrical surges. This makes it the gold standard for distributed architectures where I/O racks are located in separate buildings or near high-voltage motor control centers (MCC).
