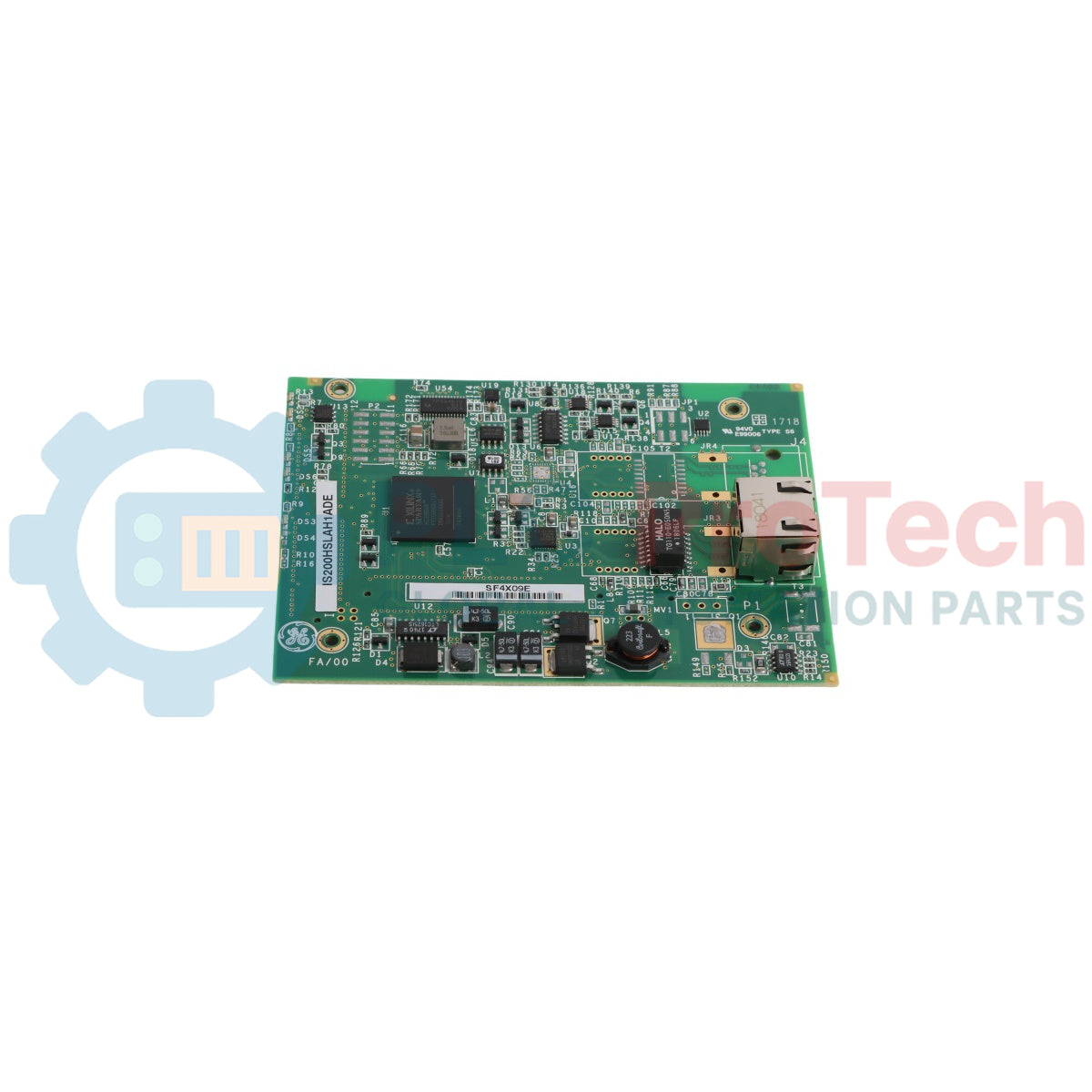

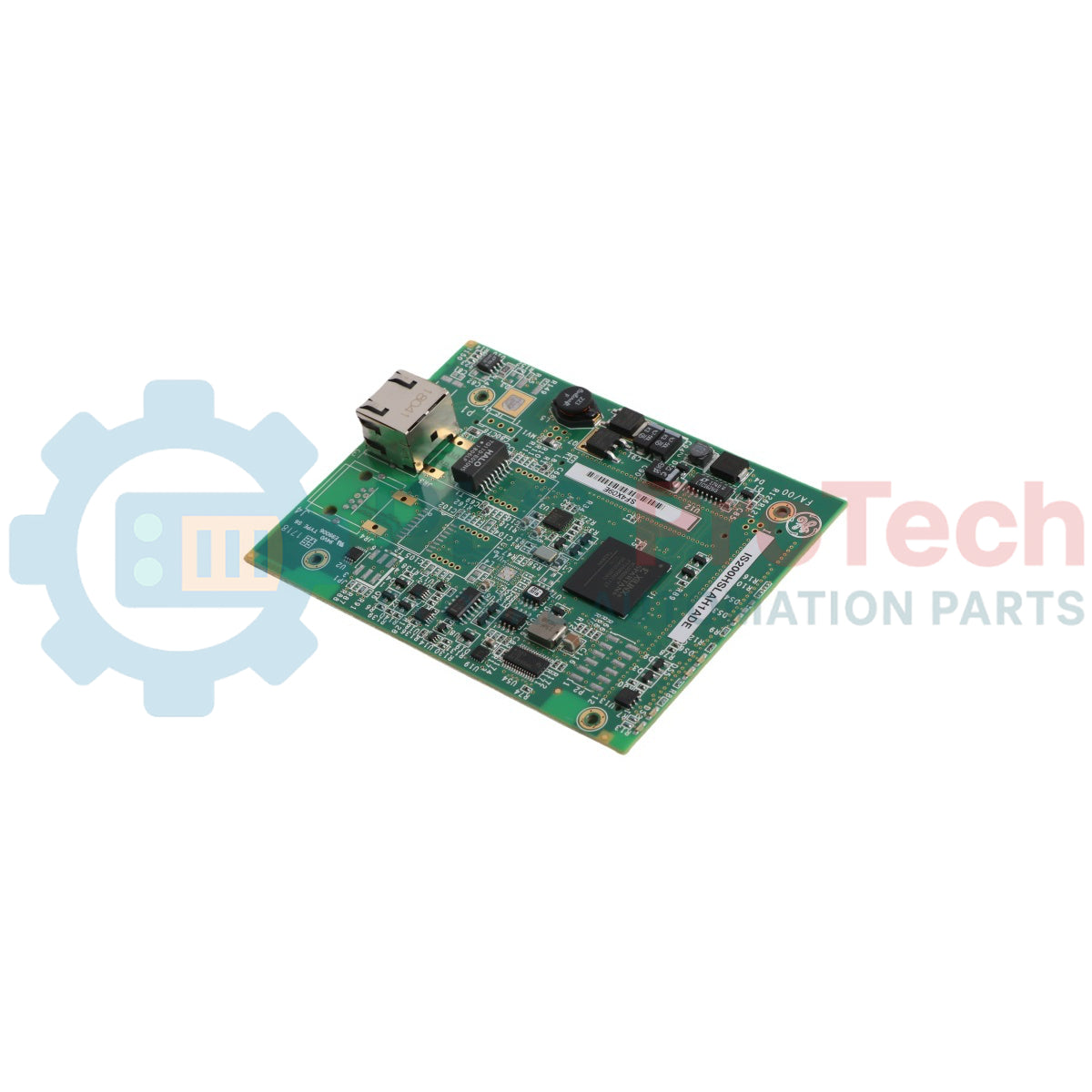

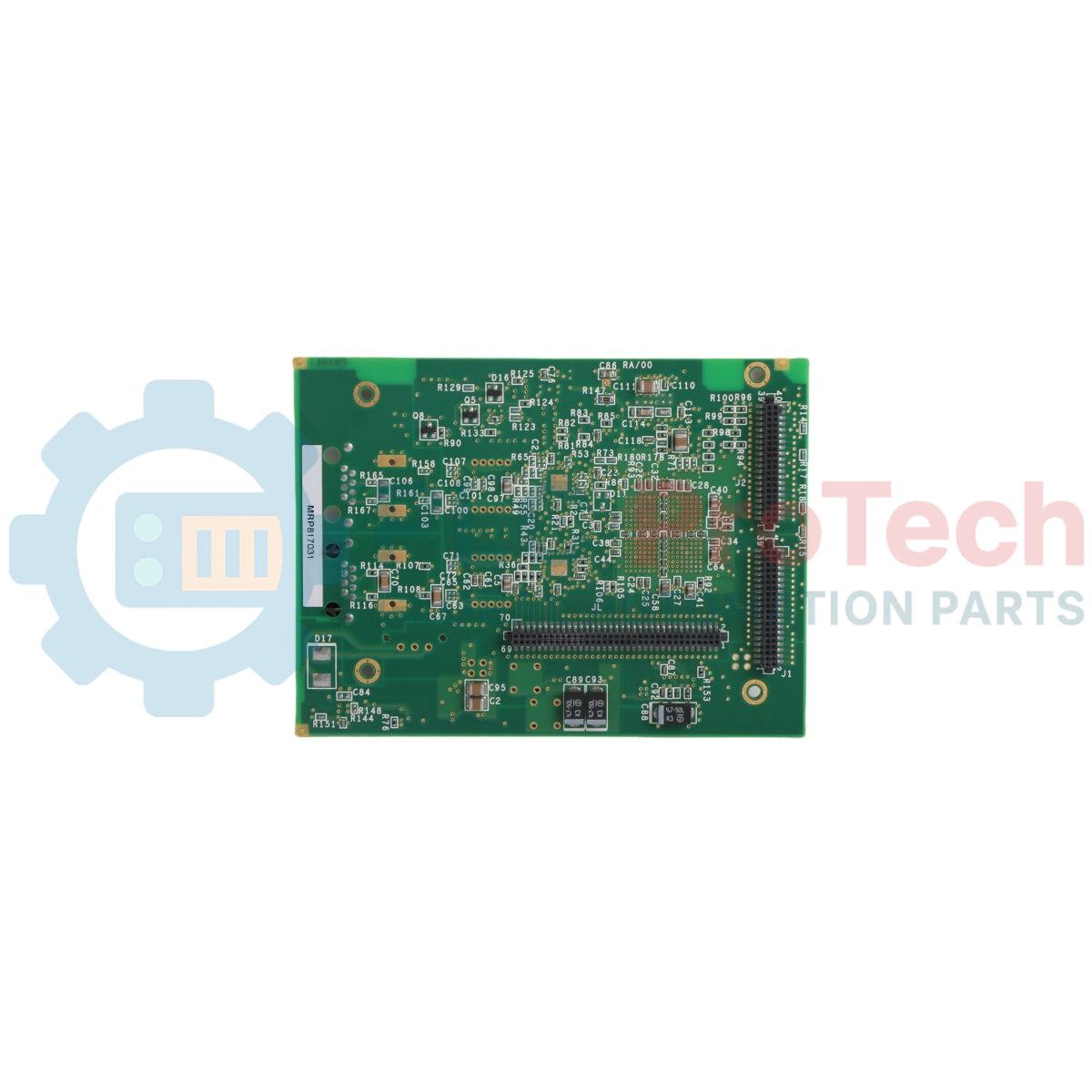

Carte d'interface HS SLR LNK General Electric IS200HSLAH1ADE

Description

The IS200HSLAH1ADE is a high-speed (HS) serial link interface board designed for integration within host application board setups. This communication module provides high-speed data communications across alternative energy management systems, working in combination with a variety of other compatible modules and terminal boards. Domestically manufactured as a Group One product within the series, the IS200HSLAH1ADE features a specialized design that omits any non-standard assembly versions or SCOM grounding output terminals. The printed circuit board is protected by a conformal style coating layer to safeguard the electronic circuitry from operational degradation.

Features

• Provides high-speed serial link interface capabilities for reliable data communication pathways.
• Integrates seamlessly with diverse host application boards and control modules within the system framework.
• Designed as a Group One product variation manufactured without an SCOM grounding output terminal.
• Equipped with a defensive conformal PCB coating style to enhance environmental durability.
• Maintains full backwards-compatibility with the original base-level functional design revision.

Applications

• Alternative Energy Infrastructure: Deployed in wind, solar, and specialized steam turbine alternative energy generation systems.
• Industrial High-Speed Communication: Providing high-speed data link bridging across core control applications and peripheral network blocks.

Technical Specifications

Installation Guidelines

• Ensure the power source supplying the host application chassis is completely isolated and powered down before board insertion or removal.
• Use static-safe handling protocols during installation to prevent damage to the onboard logic and communication paths.
• Confirm that the board aligns properly with the chassis card guides before firmly seating it into its designated backplane mating position.
