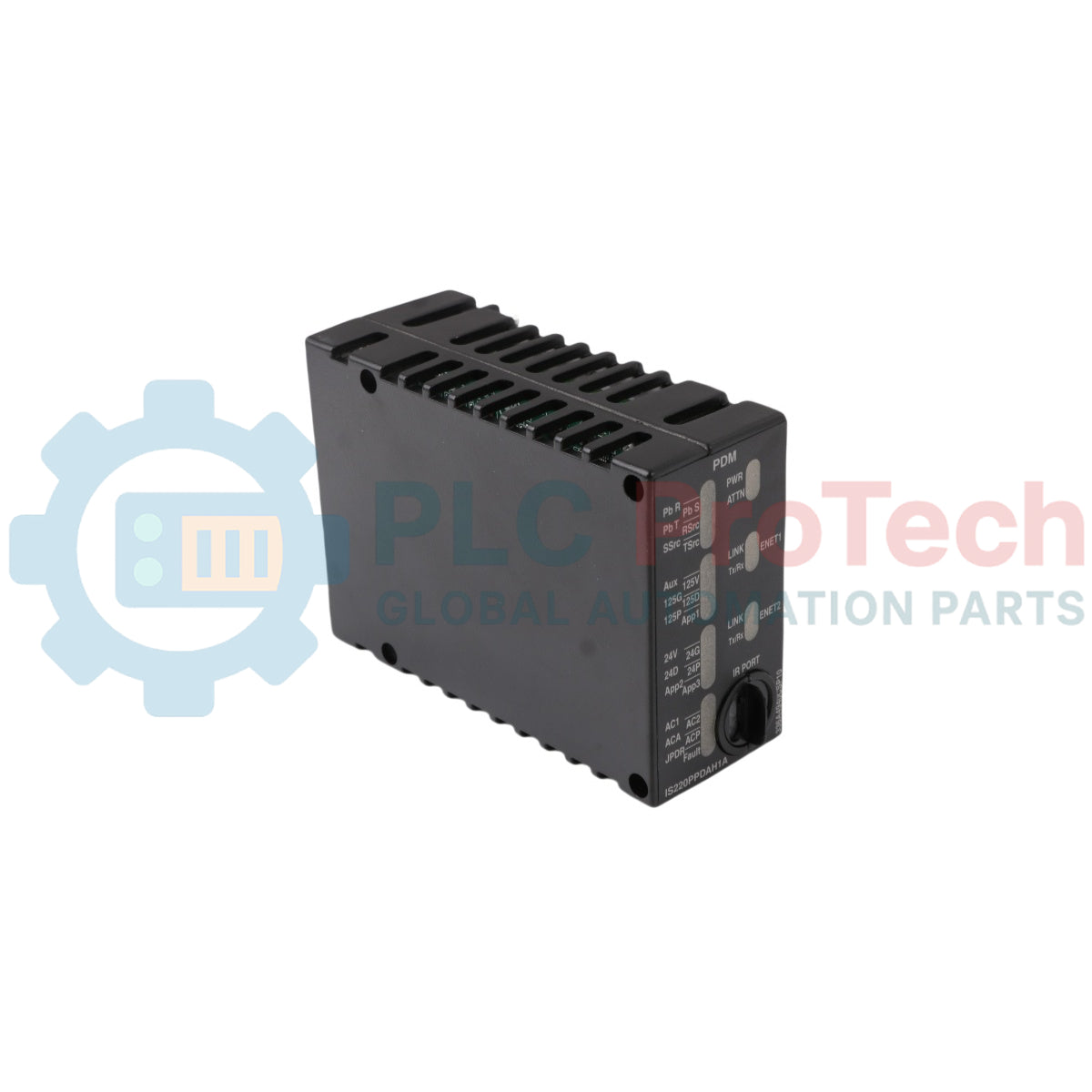

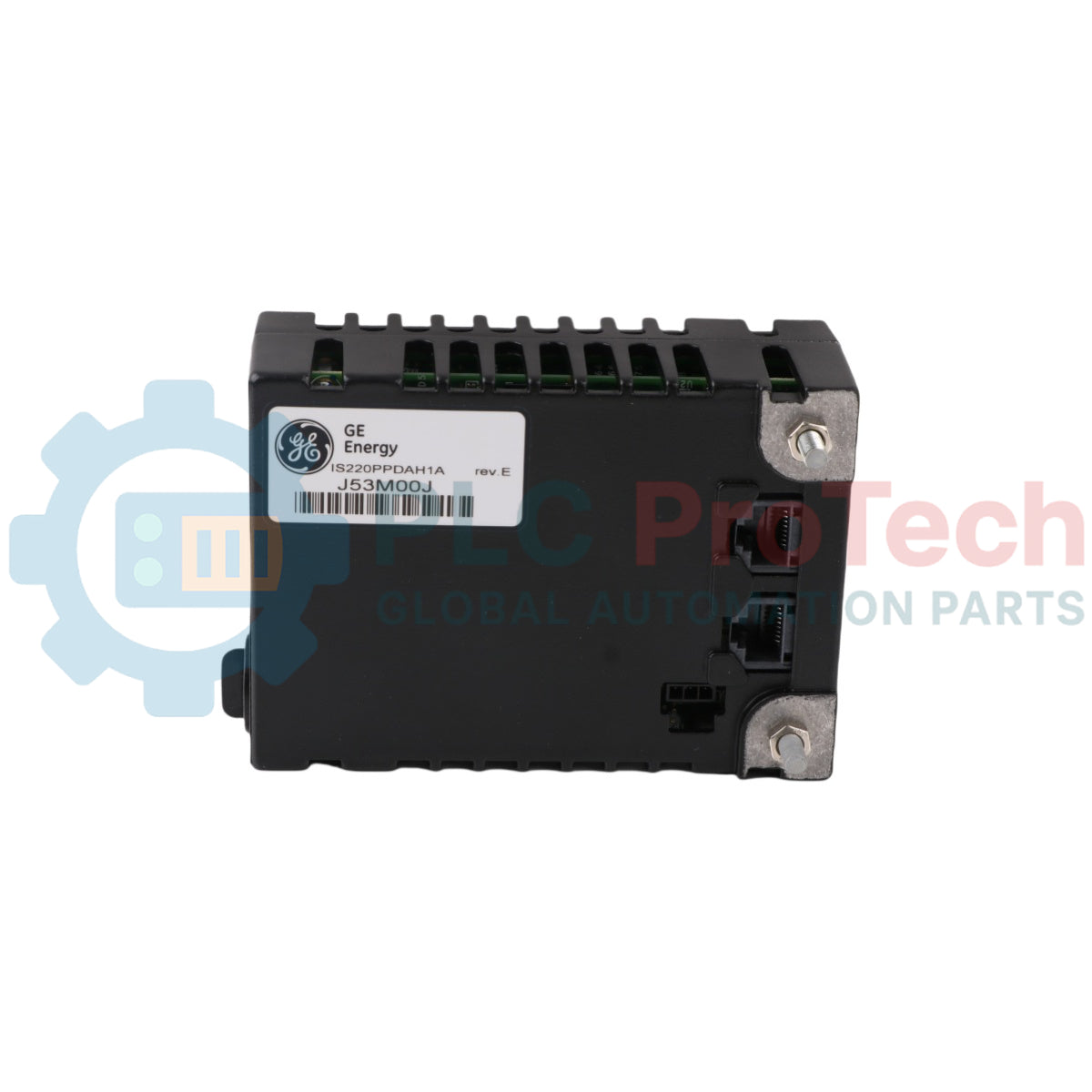

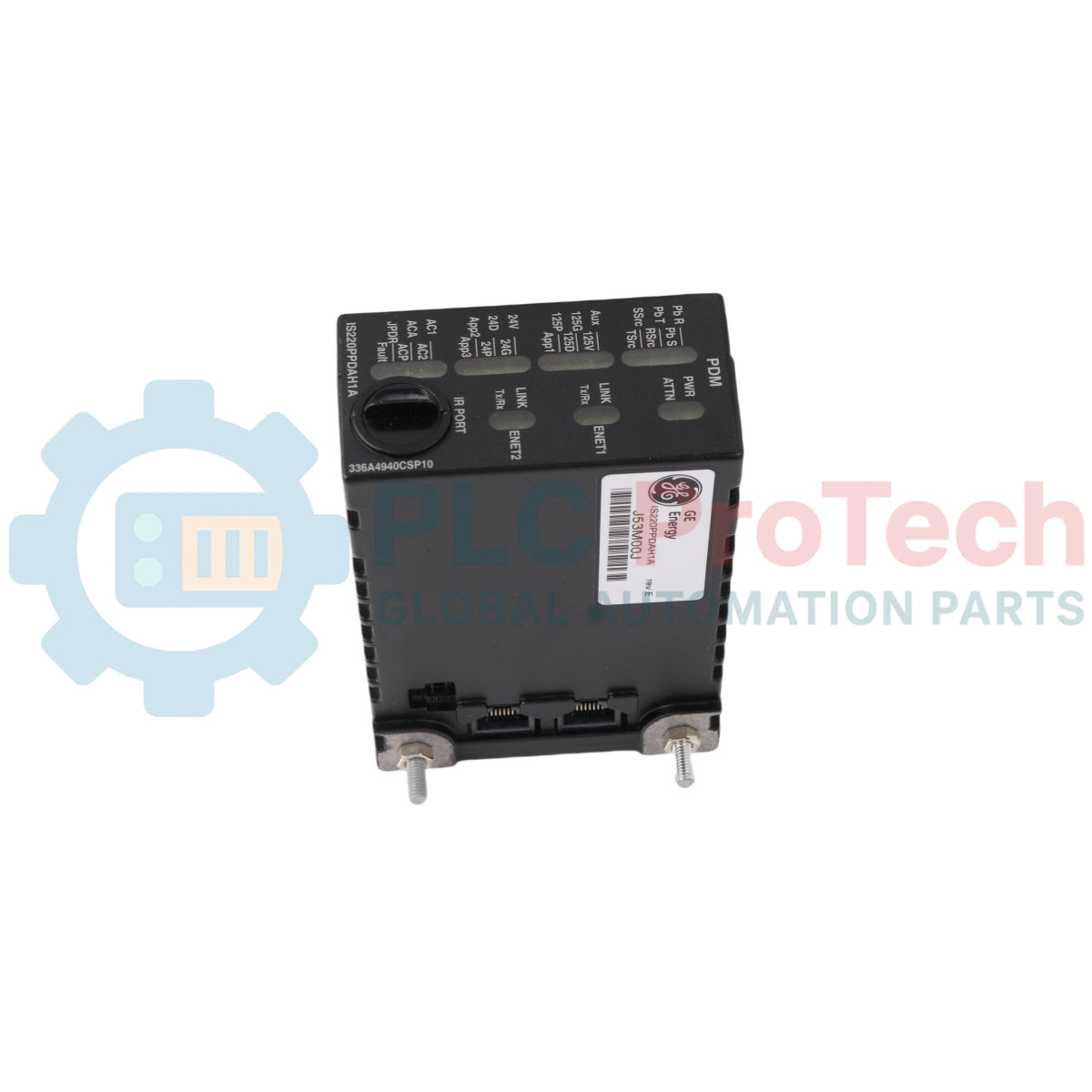

Pack E/S de rétroaction General Electric IS220PPDAH1A

Description

The IS220PPDAH1A is a power distribution system feedback pack manufactured by GE Energy as part of the Mark VIe Series for turbine control and industrial power distribution systems. This specialised I/O pack is engineered to condition board feedback signals, accepting up to six inputs from distinct power distribution boards simultaneously. It incorporates automated identification routines, utilizing built-in electronic IDs to scan and determine exactly which power distribution boards are physically wired into the unit. This acquired hardware profiling data is dynamically transmitted over the network to the IONet output to ensure highly accurate status feedback from all connected boards. To secure stable integration with the control architecture, the unit delivers a dual redundant Ethernet interface linking the underlying boards directly to the primary system controllers.

Features

• Accepts up to six discrete feedback inputs from different power distribution boards
• Functions as a signal conditioner to stabilize and standardize board feedback indicators
• Provides a dual redundant Ethernet interface to establish secure lines to system controllers
• Integrates an electronic ID reader to automatically discover and identify connected boards
• Synchronizes scanned board identities with IONet output strings to maintain precise tracking
• Contains eight active operational and network status LEDs on the front face
• Utilizes a conformal circuit coating to maximize protection across harsh industrial sites
• Equipped with built-in self-diagnostic routines to ensure uninterrupted internal monitoring

Applications

• Distributed power distribution status tracking
• Main control line power monitoring
• Heavy-duty gas or steam turbine control infrastructure
• Power generation system loop diagnostics

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Mounting Integration: The I/O pack is built to be mounted directly onto either a JPDS or a JPDM control power terminal board.
• Voltage Compatibility: Verify that the underlying terminal board supply maintains a nominal 28 V dc rating prior to securing the pack.
• Signal Alignment: Connect up to six compatible power distribution boards (such as JPDB, JPDE, or JPDF); the module will automatically read their electronic IDs upon system initialization.
• Redundant Networking: Utilise both onboard network interfaces to hook up the dual redundant Ethernet paths, ensuring fault-tolerant communication back to the main system controllers.
