Module d'entrée impulsionnelle Honeywell 621-0024 série 620

Description

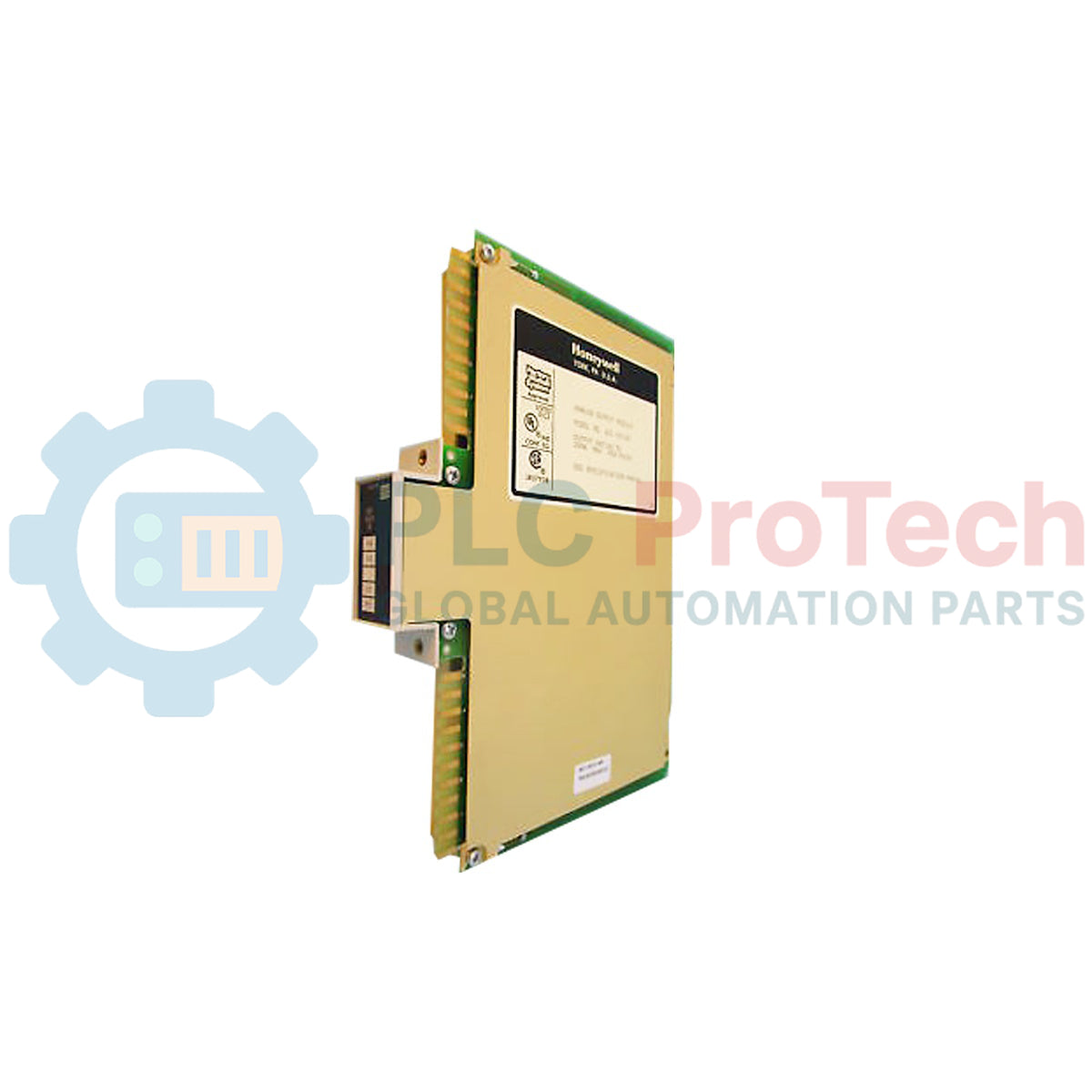

Precision frequency and pulse count acquisition is managed efficiently by the Honeywell 621-0024, a dedicated 4-channel pulse input module built for legacy 620 Series, S9000, and Logic Manager control systems. This module decodes high-speed pulse signals generated by field sensors, translating physical process cycles into digital values for the host controller. By offering rapid signal processing, it facilitates precise calculations of velocity, flow velocity, and cumulative totals in demanding industrial processes.

Features

• Provides 4 independent pulse input channels to monitor multiple field devices simultaneously.
• Designed for direct backplane compatibility with Honeywell 620, S9000, and Logic Manager racks.
• Built-in optical isolation protects internal control logic from high-voltage field transients and ground loops.
• Supports interface matching for high-frequency flowmeters, rotary encoders, and digital proximity switches.

Applications

• Fluid flow measurement and batch totalization in chemical and petrochemical plants.
• Rotational speed monitoring and overspeed protection on heavy machinery, turbines, and motors.
• Product counting and material tracking within packaging and material handling facilities.
• Integration with legacy Honeywell automation systems undergoing maintenance or localized expansion.

Technical Specifications

Installation Guidelines

• Prior to installation or removal of the module, ensure all system and rack power sources are fully disconnected.
• Inspect the physical alignment keys on the back of the card to prevent improper seating into the chassis slot.
• To minimize electromagnetic noise, route high-speed pulse input lines through dedicated wire ducts separate from AC power distribution cables.
• Use shielded twisted-pair (STP) wiring for all signal connections, ensuring the shield is terminated at the designated system ground point only.
