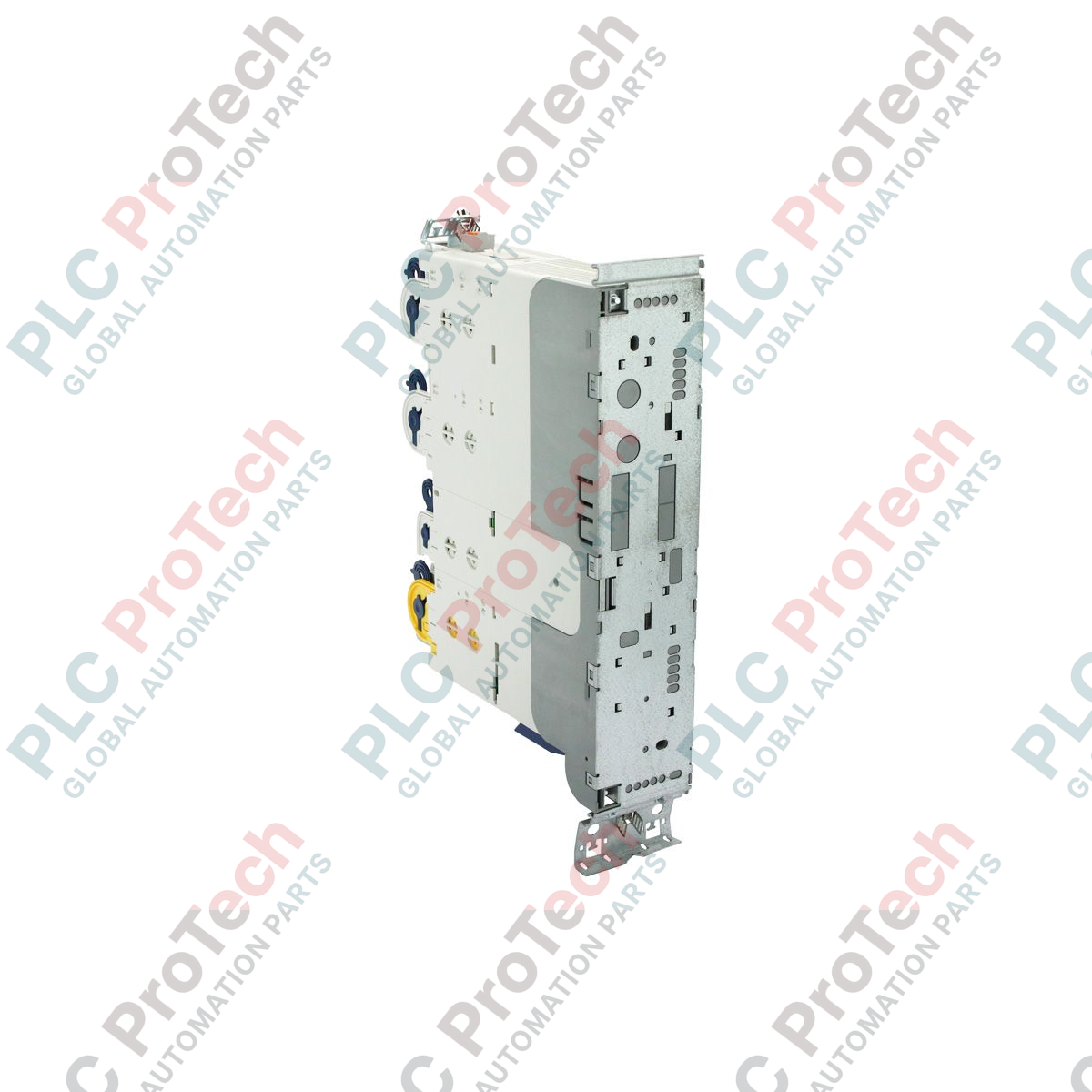

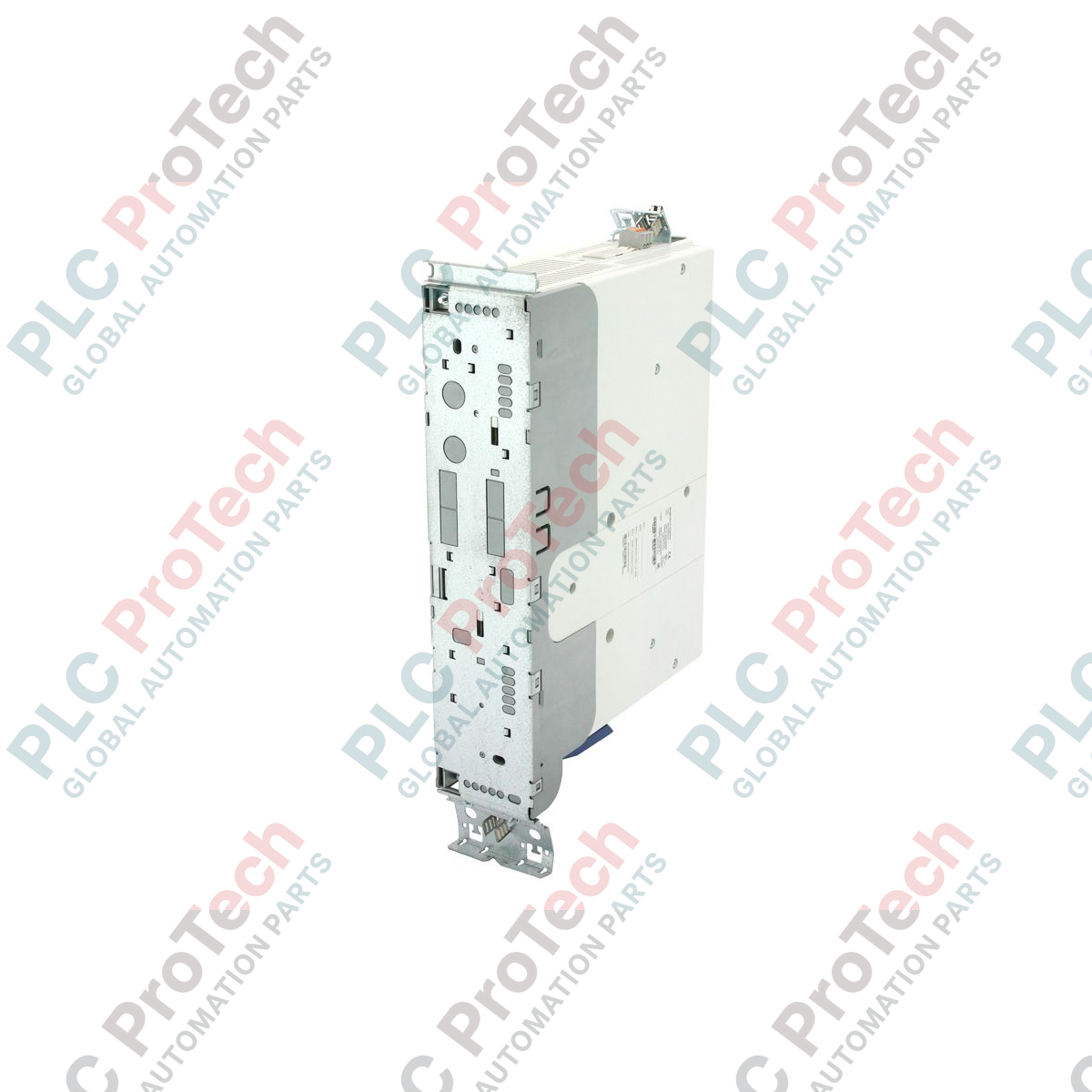

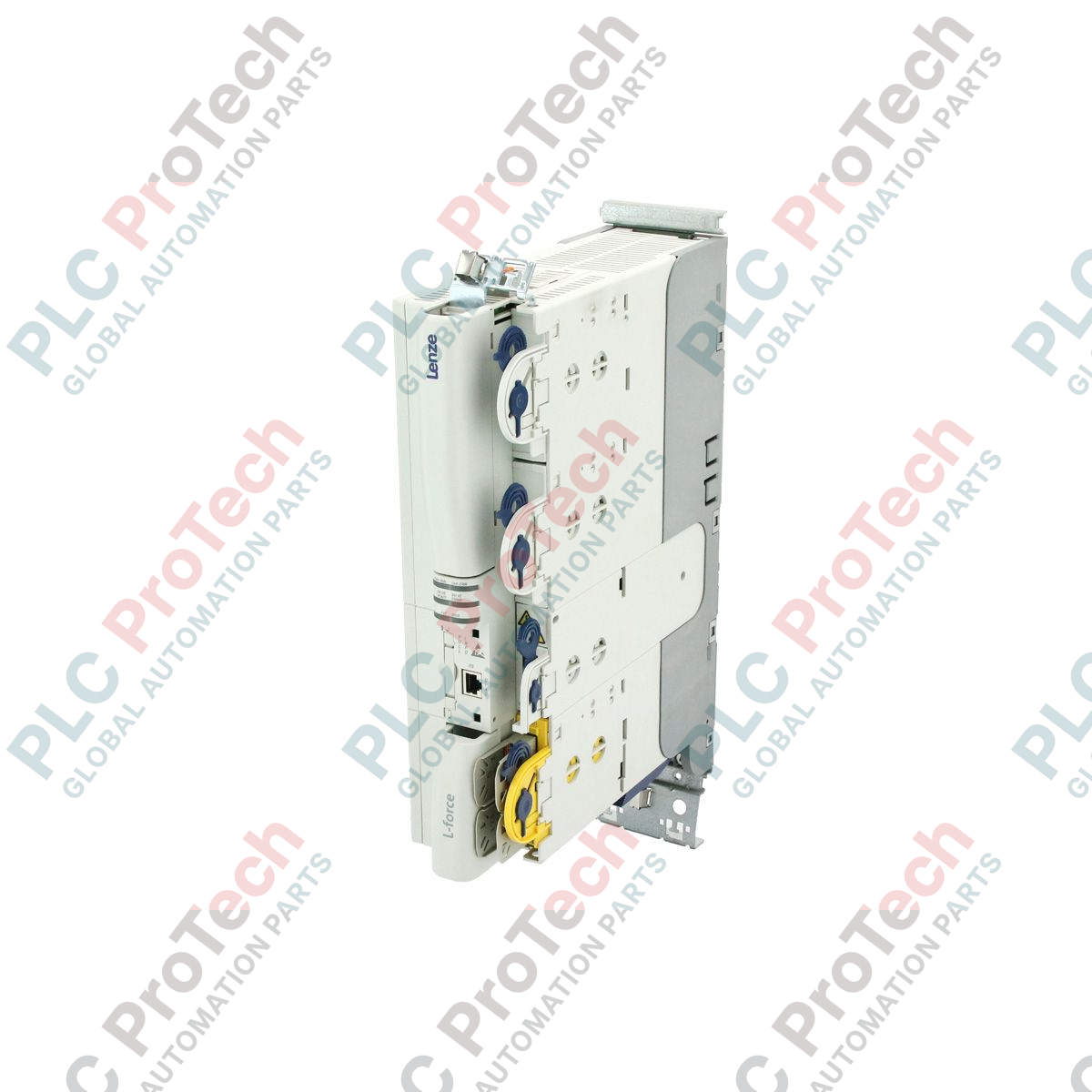

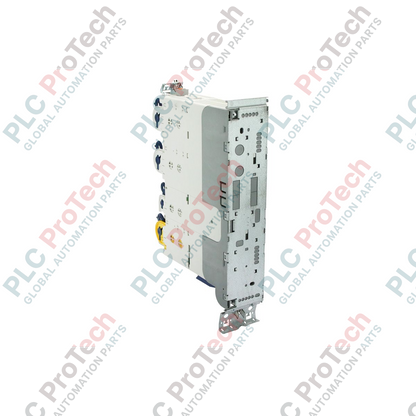

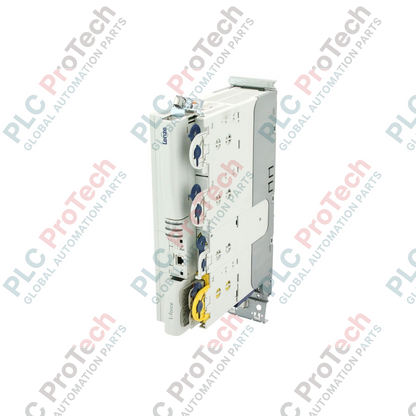

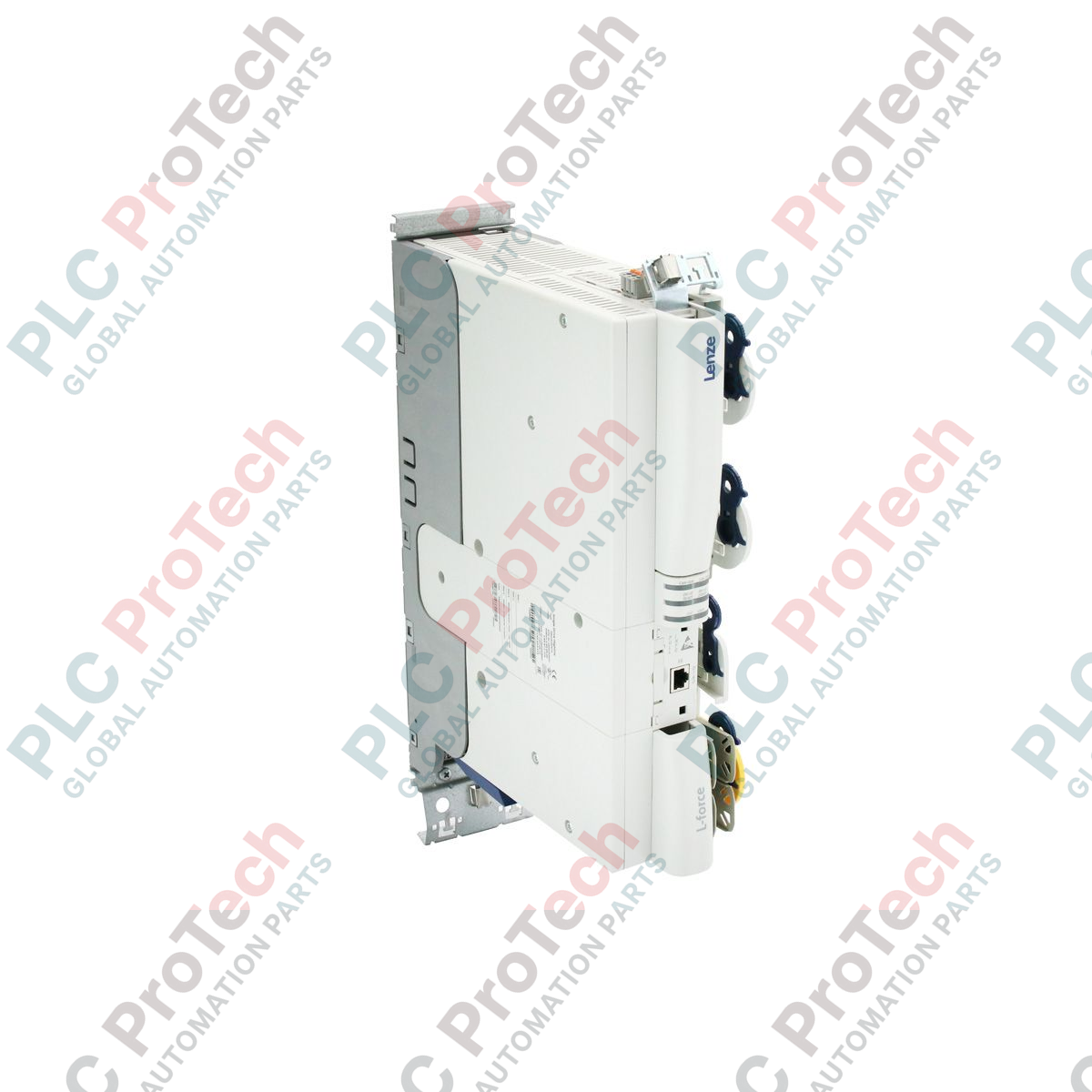

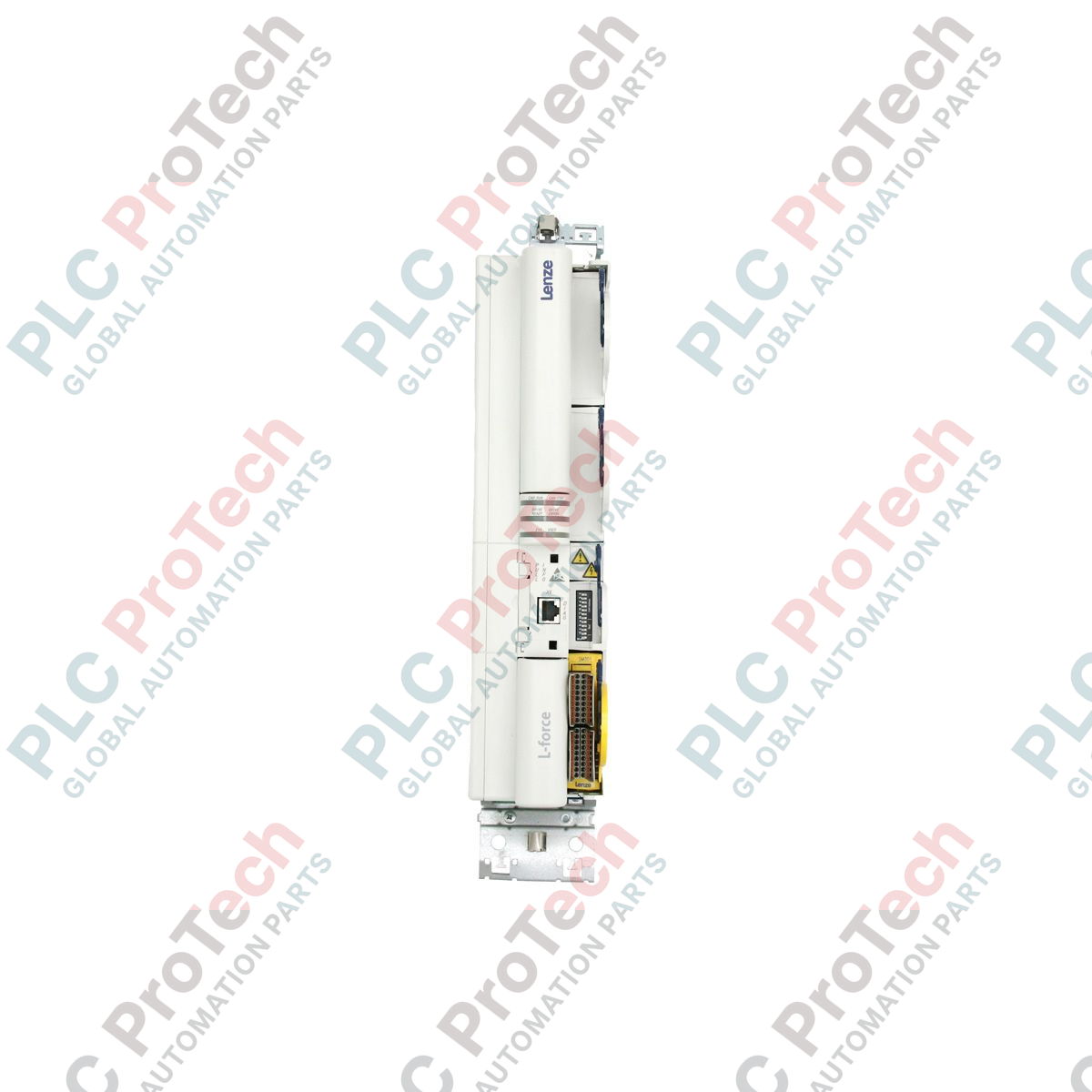

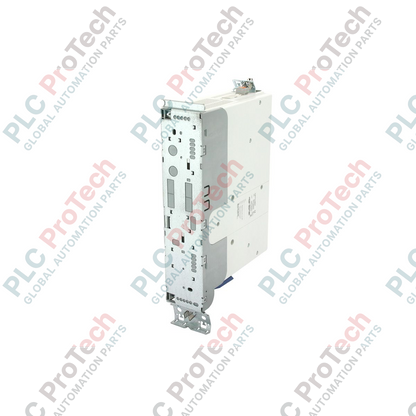

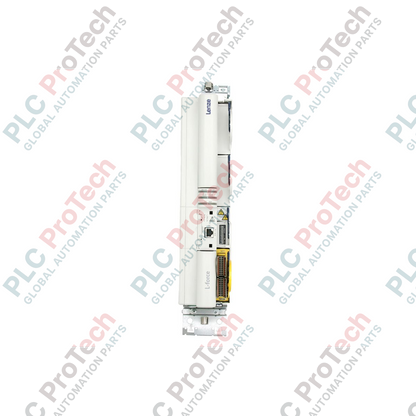

Variateur servo haute performance Lenze E94ASHE0074 série 9400

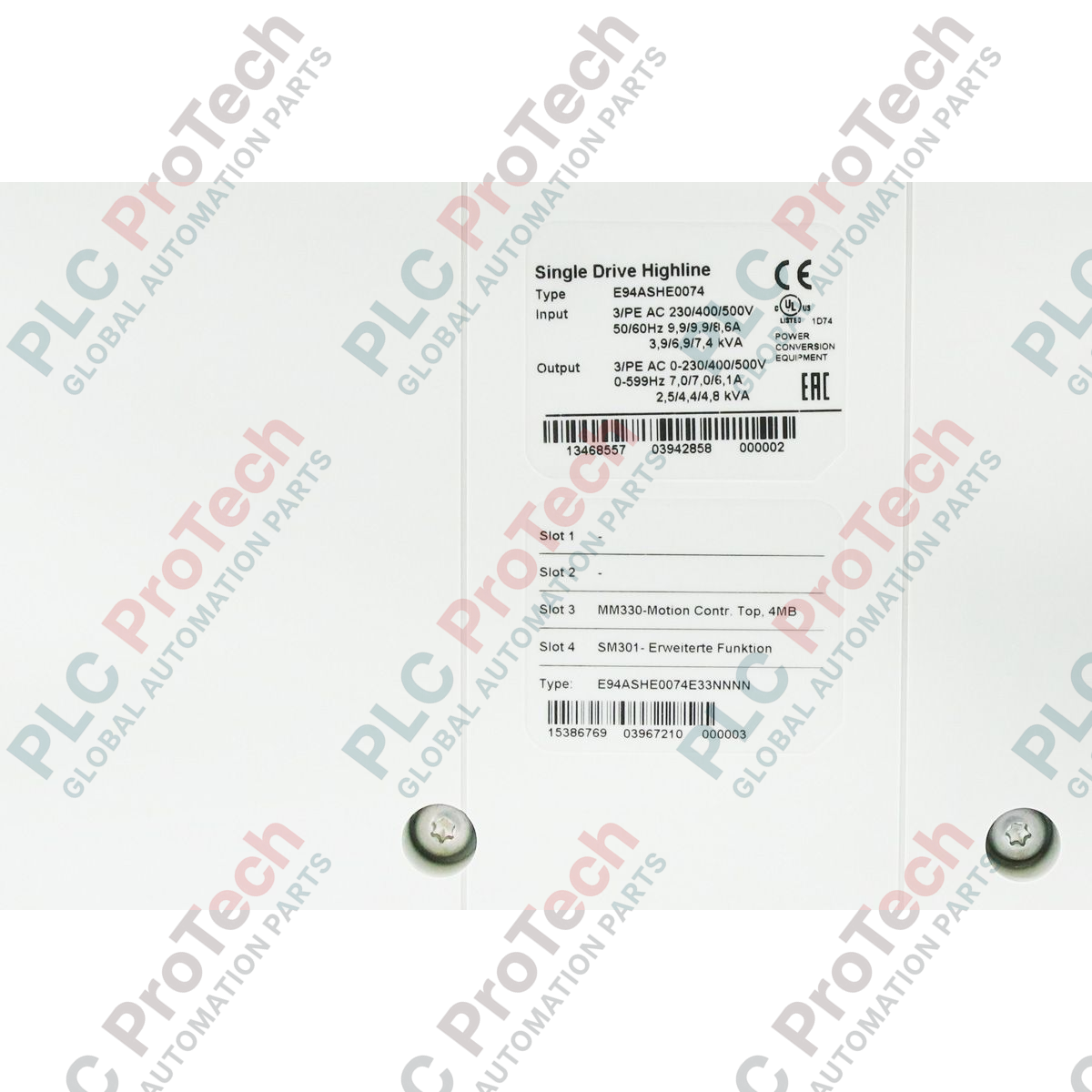

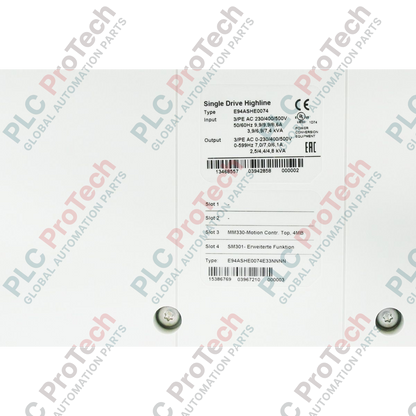

Product Overview

The E94ASHE0074 (E94ASHE 0074) is a sophisticated single-drive servo controller from the Lenze 9400-Series, engineered for precise motion control in high-demand industrial environments. Rated for a power output of 3.0 kW and supporting a wide input voltage range from 180 V to 550 V, this drive provides the deterministic performance required for complex multi-axis synchronization and rapid positioning tasks. In sectors such as high-speed logistics, textile manufacturing, and robotic palletizing, the E94ASHE0074 minimizes system latency and maximizes throughput. Its modular architecture allows for seamless integration of safety functions and diverse fieldbus communication, ensuring that the drive serves as a future-proof cornerstone for professional electrical engineering installations and large-scale automation projects.

Technical Configuration

The E94ASHE0074 HighLine architecture is built for scalability and ease of commissioning. It features a robust three-phase connection design capable of delivering consistent torque across its entire speed range. The drive's internal processing logic is optimized for high-resolution feedback systems, enabling micron-level positioning accuracy. A key technical advantage of the 9400-Series is its "testable" design, which allows for advanced diagnostics and predictive maintenance via integrated quality assurance processes. The module is fully compatible with Lenze’s pluggable safety modules and communication expansion cards, facilitating easy adaptation to specific plant protocols such as EtherCAT, PROFINET, or CANopen without replacing the base hardware.

Technical Specifications

Technical FAQs

Does the E94ASHE0074 support integrated safety functions?

Yes. The 9400 HighLine series features a modular safety concept. Depending on the installed safety module, functions such as Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS) can be implemented to meet SIL 3 and PL e requirements.

What software is required to configure the 9400-series drive?

Lenze drives are typically configured using the "L-force Engineer" software suite. This tool provides a graphical interface for parameterization, motion profiling, and real-time oscilloscope diagnostics for tuning the control loops.

Can this drive be used with third-party motors?

While optimized for Lenze MCS or MCA series motors, the E94ASHE0074 supports open motor standards. It can be configured for various asynchronous and synchronous motors through the motor database in the engineering software.

Engineering & Installation Guide

• Thermal Management: To ensure a long service life, the E94ASHE0074 must be installed vertically within the control cabinet. The drive generates heat during high-duty cycles; ensure the cabinet's climate control system is sized to keep the internal ambient temperature below 45 deg C to avoid thermal derating.

• EMC-Compliant Wiring: High-frequency interference can disrupt sensitive encoder signals. Use only shielded motor cables and ensure the shield is connected to the mounting plate using a large-surface EMC shield clip. Keep motor cables and signal cables in separate ducting.

• Backplane Mounting: The 9400-series utilizes a rugged mounting system. Ensure the backplane is grounded correctly to the cabinet frame. When mounting, provide at least 100 mm of clearance above and below the drive to facilitate natural convection and access to the pluggable terminals.
