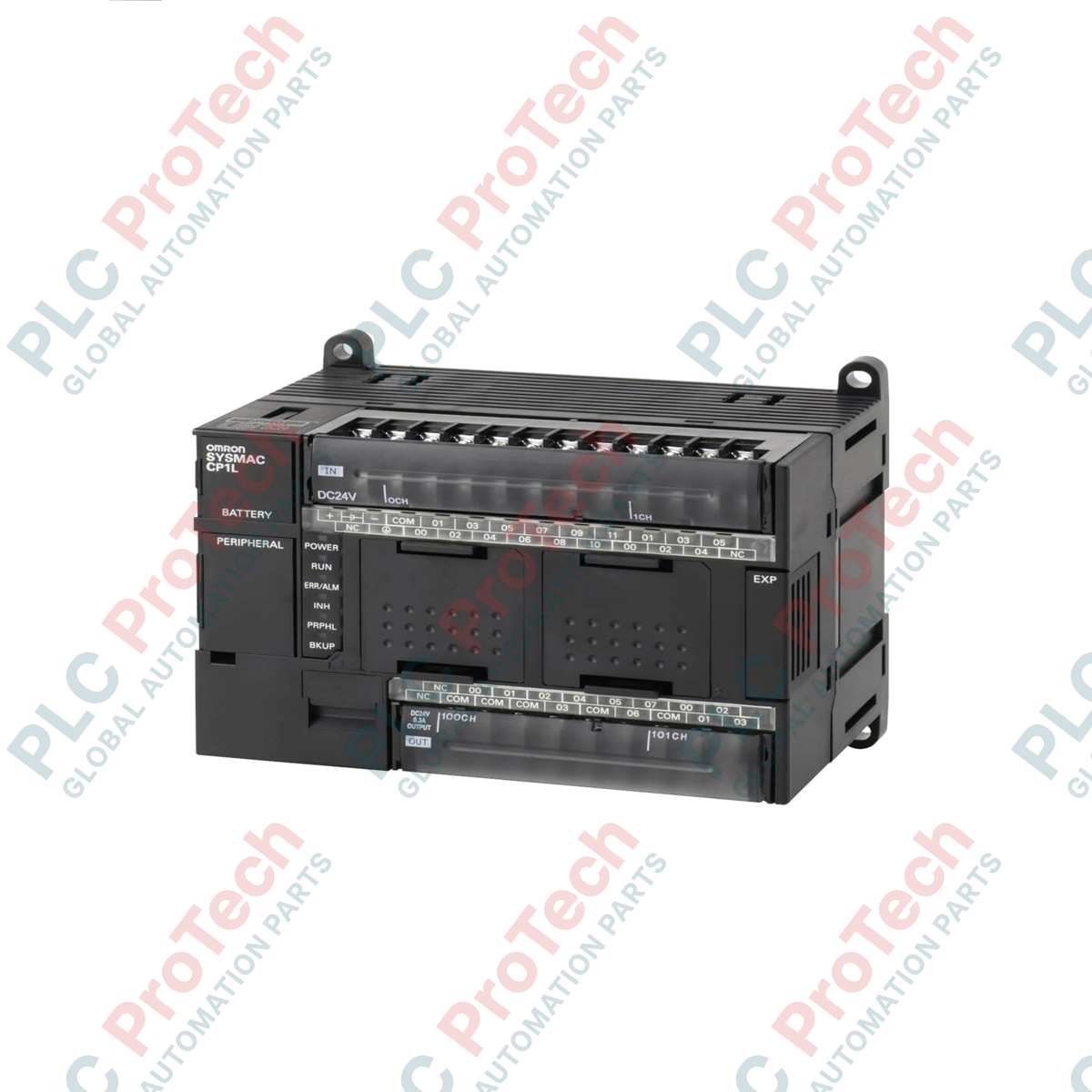

CP1L-M30DR-D | Omron | Contrôleur programmable haute performance avec Ethernet intégré

Description

Engineered for advanced machine control applications, the Omron CP1L-M30DR-D programmable logic controller (PLC) provides compact yet highly performant automation capabilities. This micro-PLC integrates embedded Ethernet functionality, enabling direct connection to factory networks, remote monitoring systems, and supervisory software without the need for additional communication cards.

Operating on a stored program system, the CP1L-M30DR-D utilizes cyclic scanning with immediate I/O refreshing to ensure deterministic processing times. Programmed primarily using standard ladder diagrams, the unit also supports function blocks written in either ladder logic or structured text (ST) languages. This dual-language support provides engineers with the flexibility to implement complex mathematical algorithms alongside standard sequential control routines.

Features

• High-Speed Processing: Executes basic instructions in 0.55 microseconds and special instructions in 4.1 microseconds.
• Flexible Memory Allocation: Features 10K steps of program capacity alongside a extensive work bit and holding area to store application data.
• Task-Based Execution: Supports up to 288 tasks, split between 32 cyclic tasks and 256 interrupt tasks for modular and responsive programming.
• Expandable Architecture: Connects up to three CP-series expansion or expansion I/O units to scale physical control points as system requirements grow.
• Onboard Analog Functions: Includes one integrated 0 to 10 V analog input channel with 1/256 resolution and one analog adjustment potentiometer (range 0 to 255).

Applications

• Packaging machinery control and coordination
• Material handling and conveyor routing systems
• Municipal water treatment monitoring and small-scale pump stations
• Automated assembly lines and pick-and-place equipment

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Install securely on a 35 mm DIN rail inside a protective control cabinet to protect against environmental contaminants.
• Thermal Management: Maintain a minimum clearance of 50 mm above and below the controller to allow adequate natural convection and heat dissipation.
• Grounding: Connect the functional ground terminal to a dedicated ground line with a resistance of less than 100 ohms.
• Wiring Isolation: Route standard low-voltage analog and communication lines away from high-voltage AC power cables to prevent electromagnetic interference.
