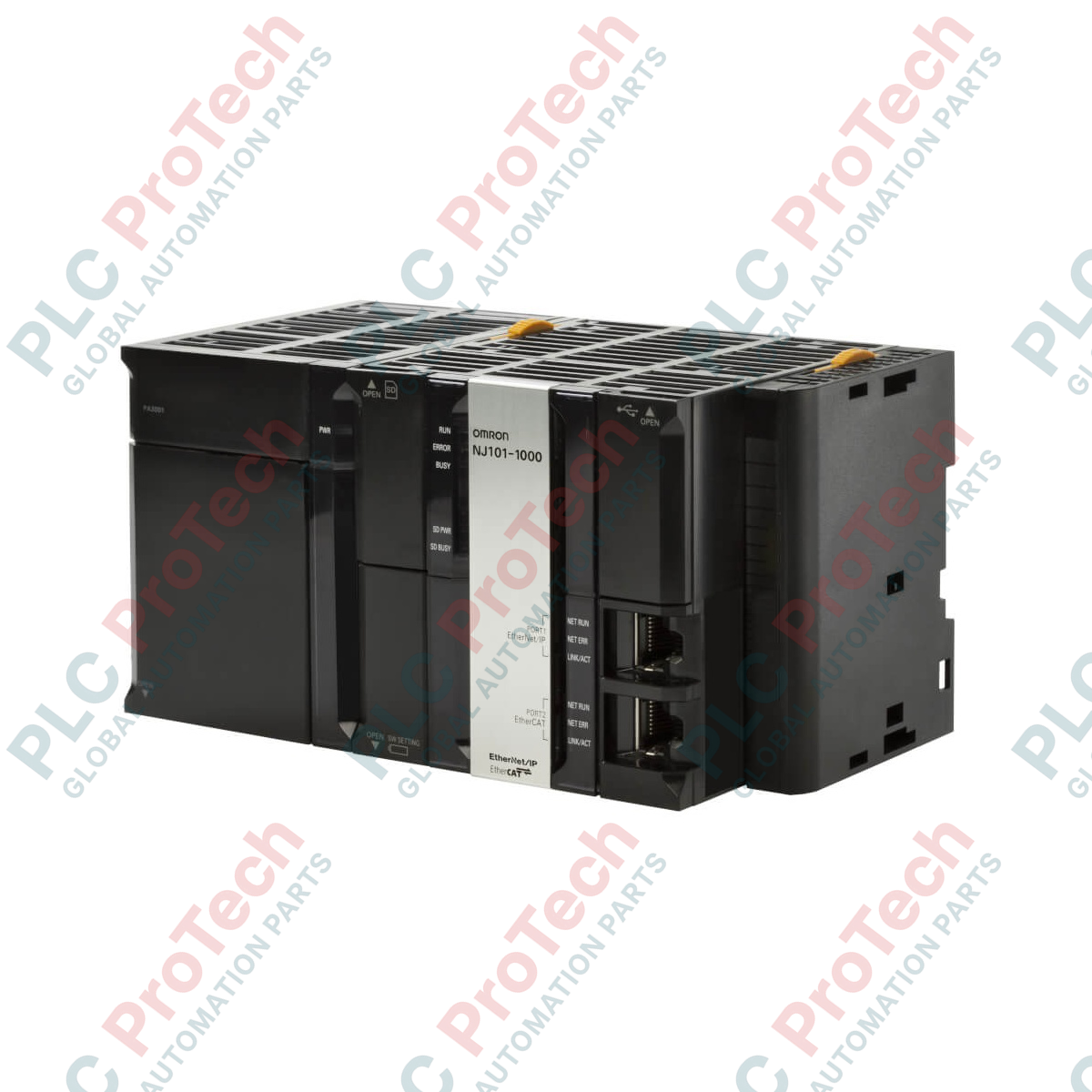

NJ101-1000 | Omron | CPU Sysmac NJ1

Description

Engineered for seamless integration within the Sysmac automation platform, the NJ101-1000 central processing unit delivers efficient sequence and motion control combined with direct database connectivity. This controller enables high-speed data exchange directly between shop floor operations and enterprise SQL databases, eliminating the need for intermediate middleware, gateway PCs, or complex script writing.

The NJ101-1000 supports synchronized motion control for up to 2 axes and accommodates up to 6 axes in total, including virtual axes. Built-in communication interfaces include EtherCAT and EtherNet/IP, providing a robust backbone for modern industrial networks. Additionally, compatibility with the CJ I/O bus allows for extensive local system expansion, making it highly versatile for retrofits and new installations alike.

Features

• Direct connection to SQL databases including Microsoft SQL Server, Oracle, MySQL, PostgreSQL, and Firebird.
• Integrated sequence and motion control execution in a single controller.
• Built-in EtherCAT master port for high-speed, synchronized machine network control.
• Built-in EtherNet/IP port for standard factory network communications and data sharing.
• CJ-series expansion bus support to preserve legacy I/O infrastructure and enable modular scalability.
• High-speed processing with a primary task cycle time of 1 ms.

Applications

• Real-time quality traceability and recipe management in food and beverage packaging.
• Data logging and predictive maintenance analytics in automotive assembly lines.
• High-precision motion synchronization in material handling and sorting systems.
• Direct manufacturing execution system (MES) integration in pharmaceutical production.

Technical Specifications

Connections and Interfaces

Installation Guidelines

When installing the NJ101-1000, ensure the CPU is mounted securely onto a standard DIN rail. To maintain proper operating temperatures, provide at least 20 mm of clearance above and below the unit for convection cooling. Ensure that the system grounding is connected directly to a dedicated ground point using a cable with a minimum cross-section of 2 mm squared. Shielded cables must be utilized for all industrial Ethernet connections (EtherCAT and EtherNet/IP) to prevent electromagnetic interference in high-noise environments.

Compliance and Certifications

• CE Compliant
• cULus Listed
• KC (Korean Communications Commission)
