NX-DA3203 | Omron | Unité de sortie analogique

Description

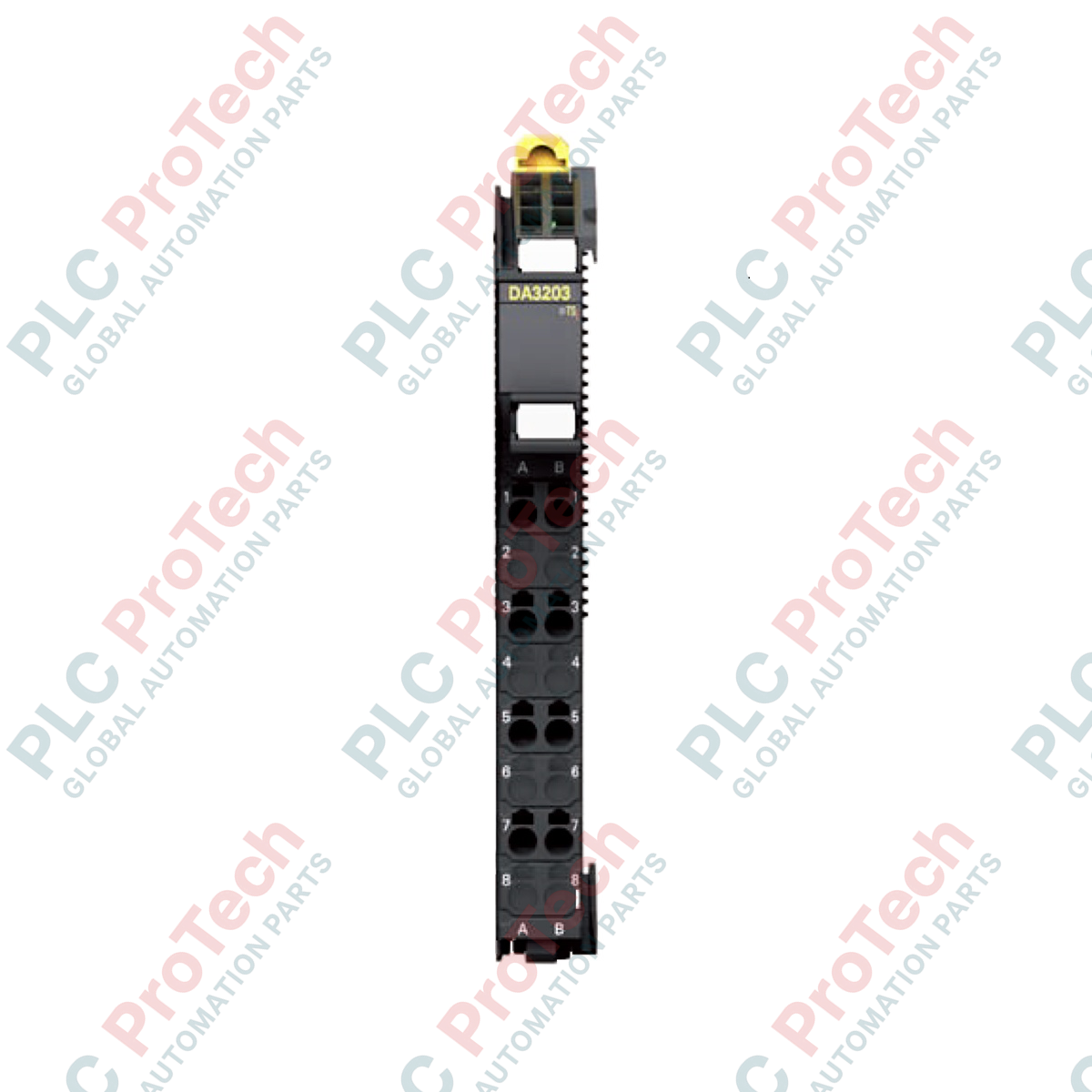

Facilitating precise signal transmission within Sysmac automation architectures, the Omron NX-DA3203 provides modular analog current outputs in a compact form factor. This high-density output channel interface mounts directly to the NX-series Bus Coupler, converting internal digital PLC variables into standard analog current signals for real-world field control. Featuring a 4 to 20 mA output range across four independent points, the module achieves highly repeatable loop control with an operational resolution of 1/8000. Built with space-saving 12 mm housing, it integrates seamlessly into decentralized industrial environments, minimizing panel footprint while ensuring stable signal integrity through modern Push-In Plus connection terminals.

Features

• Four high-precision analog output channels supporting industrial standard 4 to 20 mA signals.
• Fast internal conversion time of 250 microseconds per point for responsive control action.
• Stable output accuracy of +/-0.3% of full scale under standard operating conditions (25 degC).
• Free-Run refreshing methodology for continuous, non-synchronous system output updates.
• Push-In Plus terminal block connection for rapid, reliable, and toolless field wiring.

Applications

• Proportional control valve positioning and pneumatic actuator modulation.
• Frequency reference generation and speed profiling for Variable Frequency Drives (VFDs).
• Analog setpoint retransmission to dedicated laboratory recorders and environmental controllers.
• Integration into wastewater treatment systems for chemical dosing pump regulation.

Technical Specifications Table

Empirical Engineering Insights

Alternative Models & Compatibility

The NX-DA3203 is designed strictly for standard 4 to 20 mA analog output loops. If your field equipment demands voltage regulation, specify the NX-DA3103 (0 to 10 V) or NX-DA3105 (-10 to +10 V) variations. Configuration parameters are stored globally in the EtherCAT coupler or master PLC, facilitating fast module replacement without requiring manual field unit recalibration.

Application Pitfalls & Engineering Notes

This module relies on Free-Run I/O refreshing, which processes updates independently of the synchronous bus cycle. It is not suitable for high-speed synchronized motion control or precision multi-axis coordination requiring exact EtherCAT Distributed Clock (DC) synchronization. For synchronous multi-channel synchronization, choose a module designed for synchronous refreshing (such as the NX-DA3205).

Commissioning & Wiring Tips

Always route the 4 to 20 mA output signals through shielded twisted-pair (STP) cables to protect vulnerable analog commands from adjacent high-voltage variable speed drive output lines. Ground the cable shield at the control panel side only to eliminate parasitic ground loops that can cause drifting offsets at your actuators.
