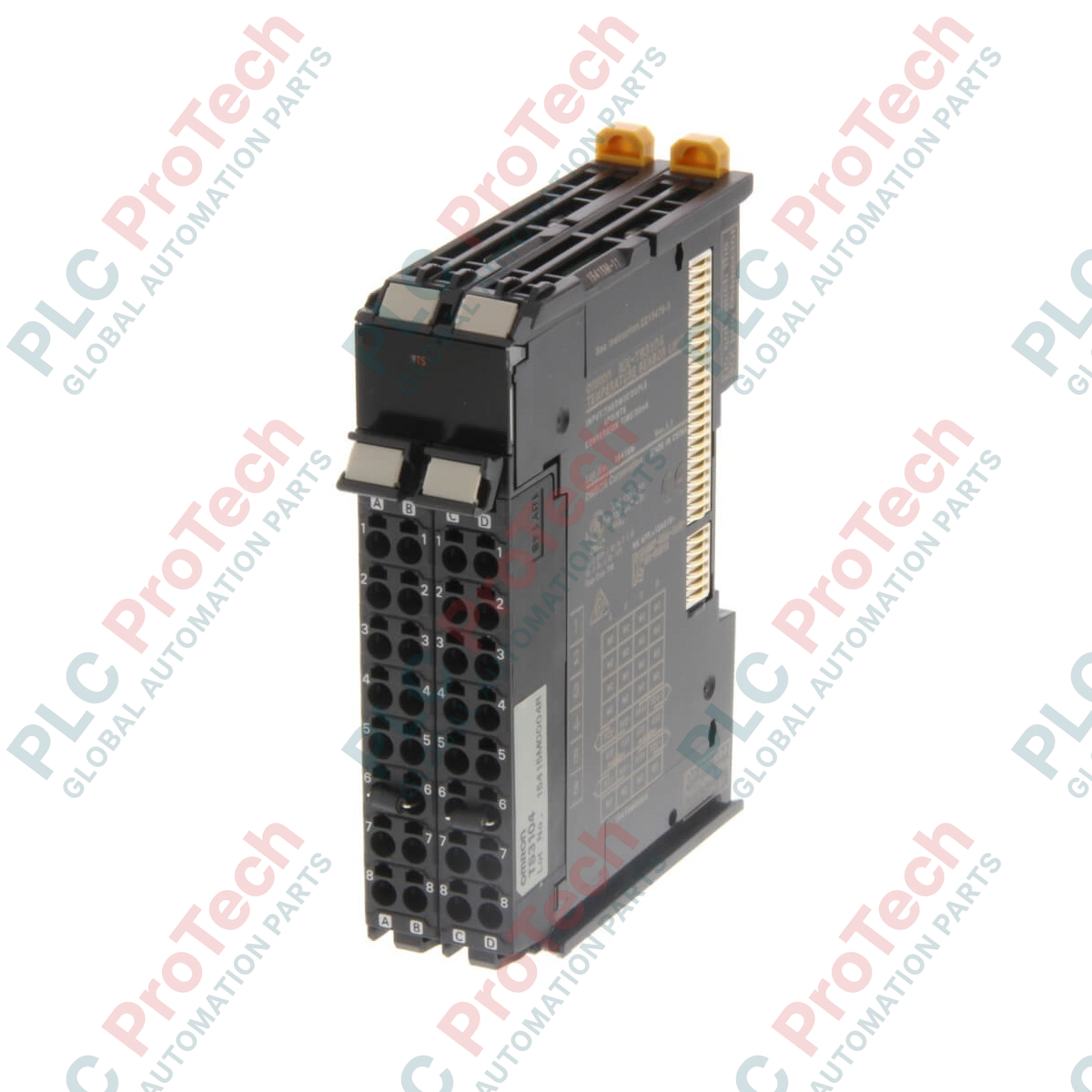

NX-TS3102 | Omron | Unité d'entrée de température (thermocouple)

Description

Engineered for high-speed thermal monitoring within the Sysmac automation platform, the Omron NX-TS3102 provides precise thermocouple signal processing for industrial temperature control loop applications. This 4-point thermocouple input module features high-density screwless push-in connections, minimizing installation time and wiring errors. Operating on the high-speed NX bus, it delivers an ultra-fast conversion speed of 10 ms per unit with a resolution limit of 0.01 degC, making it suitable for processes requiring strict thermal regulation and fast response loops.

Features

• Multi-Sensor Compatibility: Supports a broad range of standard thermocouples including K, J, T, E, L, U, N, R, S, WRe5-26, and PLII.
• High-Speed Refreshing: Implements Free-Run I/O refreshing with a rapid 10 ms conversion cycle for dynamic temperature loops.
• Excellent Resolution: Delivers precise temperature resolution down to 0.01 degC max to monitor minor process fluctuations.
• Channel-to-Channel Isolation: Features complete electrical isolation between input channels and the NX bus using power transformers and digital signal isolators.
• Vibration-Resistant Connections: Utilizes dual 16-point screwless clamping terminal blocks to ensure long-term wiring integrity in harsh physical environments.

Applications

• Plastic extrusion and injection molding barrel temperature regulation.
• Industrial heat treatment ovens, annealing kilns, and multi-zone furnaces.
• Packaging machinery requiring precise thermal sealing bar control.
• Semiconductor manufacturing wafer-heating and environmental chamber monitoring.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The NX-TS3102 is designed for systems utilizing Sysmac Studio. While physical pinouts match standard NX analog units, the NX-TS3102 provides full channel-to-channel isolation. If your system does not require absolute channel isolation or has a lower point-density demand, the 2-point NX-TS2102 serves as a direct functional alternative within the same hardware footprint.

Application Pitfalls & Engineering Notes

To ensure the stated conversion accuracy of 0.01 degC, the module requires a warm-up period of 45 minutes after the control panel is energized. Cold Junction Compensation (CJC) accuracy relies on localized ambient temperature readings. Therefore, do not mount the module directly above high-heat-dissipating equipment like variable frequency drives (VFDs) or large system power supplies.

Commissioning & Wiring Tips

When routing thermocouple sensor leads, always use dedicated shielded thermocouple extension wires. Run these signals in separate, grounded metal conduits away from high-voltage AC cables to prevent electromagnetic noise from causing temperature signal drift. Utilize solid wire or stranded wire terminated with ferrules for the screwless push-in clamping terminals to ensure gas-tight, vibration-proof electrical contacts.
