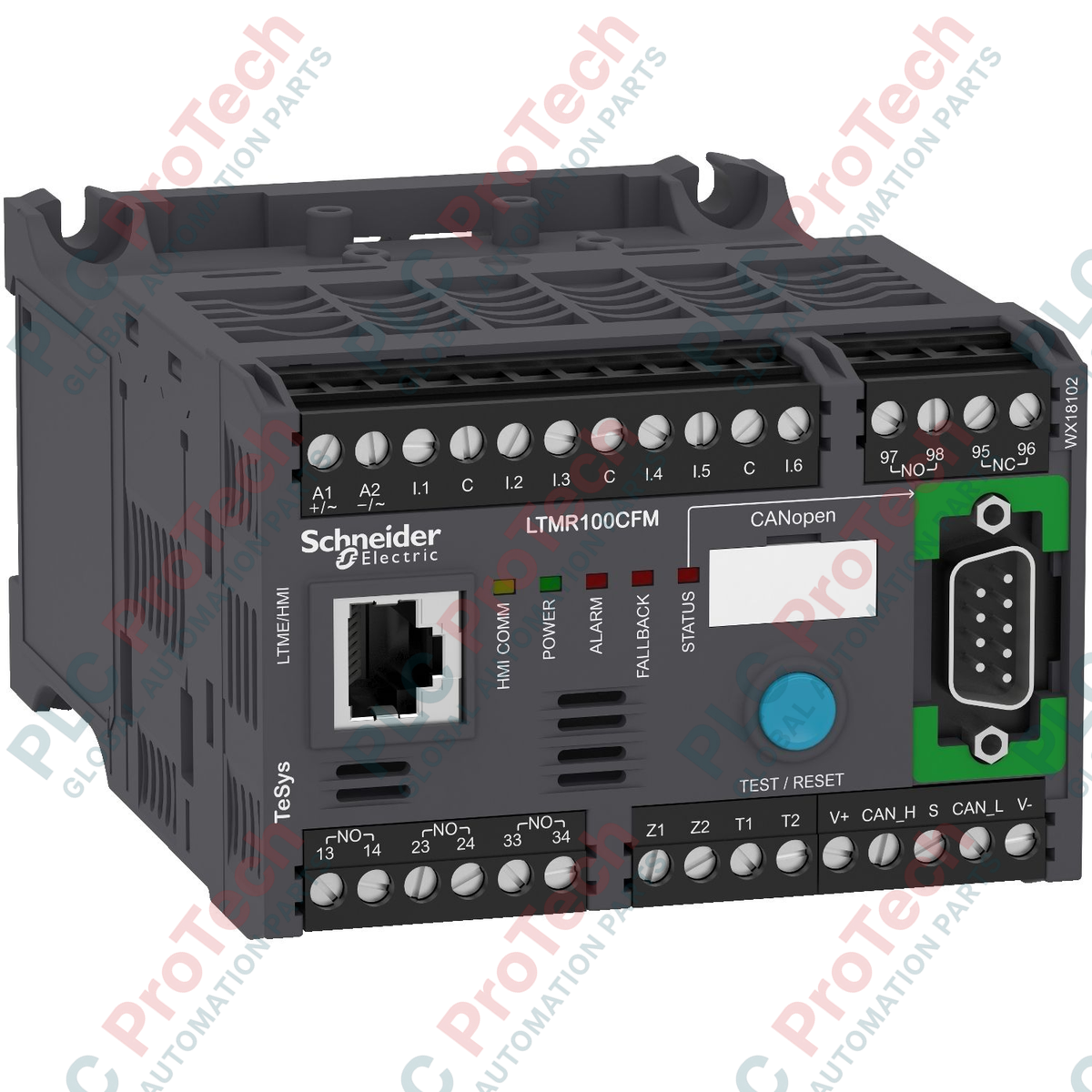

Module moteur Schneider CANopen LTMR100CFM

Description

The LTMR100CFM is a TeSys T motor management controller designed to provide advanced protection, monitoring, and control for three-phase motor applications. By integrating seamlessly into a CANopen communication network, this module allows for real-time data exchange and remote diagnostics, enhancing the efficiency of automated industrial systems.

Operating within a 100-240 V AC supply range, the LTMR100CFM supports a wide current setting range from 5 A to 100 A. It serves as a comprehensive management solution, offering features such as thermal overload protection, monitoring of current and voltage parameters, and detailed fault reporting. This controller is a critical tool for industries prioritizing operational safety and predictive maintenance.

Features

• Communication: Fully integrated CANopen network compatibility.
• Versatile Range: Supports motor currents from 5 A to 100 A.
• Control Voltage: 100-240 V AC wide-range supply.
• Protection: Comprehensive motor protection (thermal, phase imbalance, under/overcurrent).
• Monitoring: Real-time data logging and diagnostic reporting via fieldbus.

Technical Specifications

Installation Guidelines

• Mounting: The unit is designed for standard DIN rail mounting within an electrical enclosure. Ensure there is adequate spacing around the module to allow for heat dissipation.
• Wiring: Connect the three-phase motor supply through the integrated current transformers. Ensure that secondary control wiring is separated from high-power cabling to prevent interference.
• Network Setup: Connect the module to the CANopen network using appropriate shielded cabling and ensure the network is properly terminated at both ends to maintain signal integrity.
• Commissioning: Use the configuration software (SoMove or equivalent) to define motor protection parameters, trip classes, and communication addresses before initial operation.
