Base PLC Twido Extreme Schneider Electric TWDLEDCK1

Description

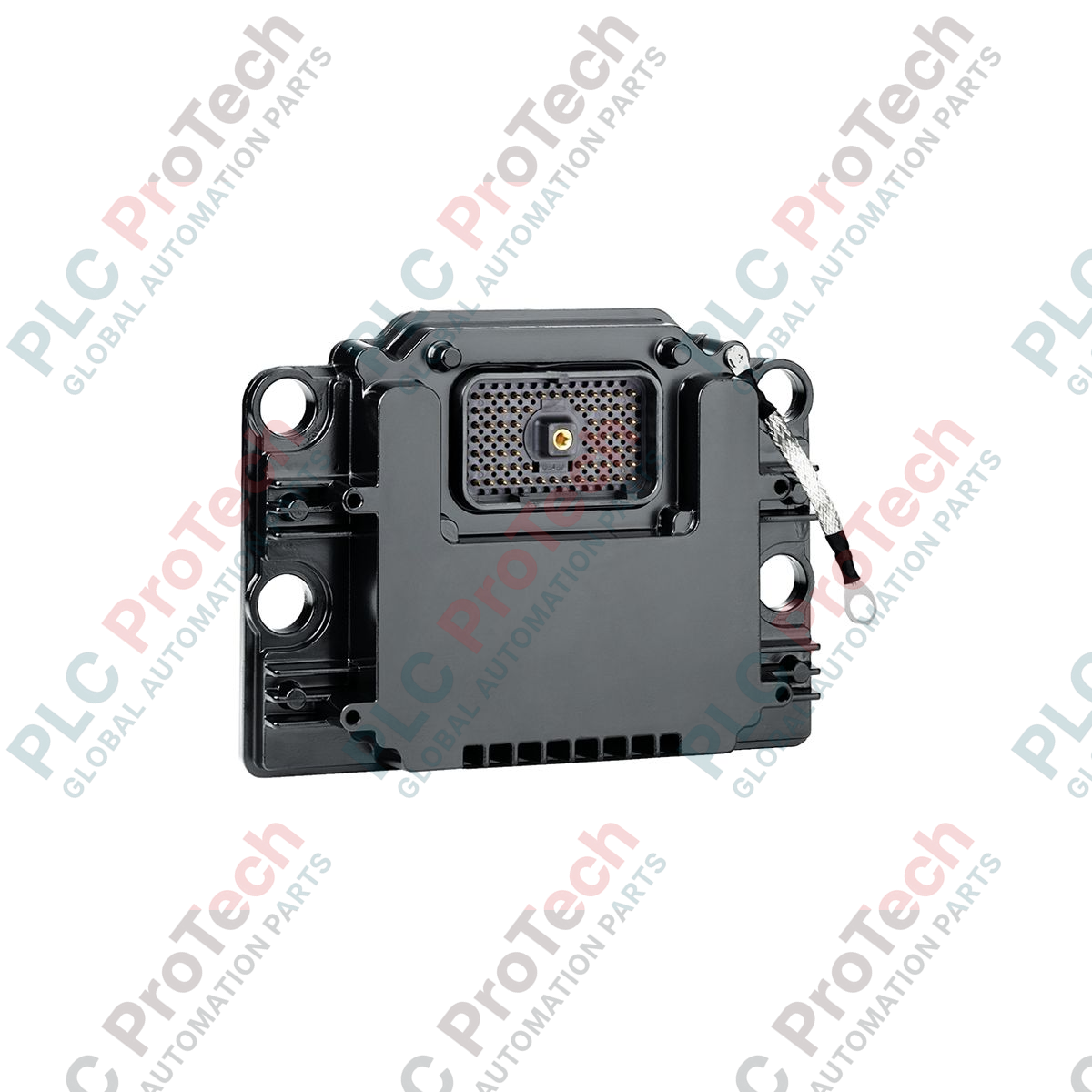

The TWDLEDCK1 is a Twido Extreme PLC Base module engineered for ruggedized industrial control environments. This base unit operates on a 12V to 24V DC power supply and features a high-density 70-way male connector for streamlined system interfacing. With a capacity of 22 inputs and 19 outputs, the TWDLEDCK1 provides a versatile platform for managing discrete automation sequences. Despite being phased out in 2018, it remains a critical spare part for legacy systems requiring the specific I/O density and connectivity offered by the Twido Extreme architecture.

Features

• PLC base unit from the Twido Extreme range
• Power supply: 12V to 24V DC
• I/O Configuration: 22 Inputs / 19 Outputs
• Interface: 70-way male connector
• Designed for high-reliability industrial automation

Applications

• Mobile equipment control systems
• Industrial automation for harsh environments
• Legacy Twido PLC system maintenance and expansion
• Discrete manufacturing process control

Technical Specifications

Installation Guidelines

• Mounting: Ensure the base is mounted on a vibration-resistant surface within a protected enclosure. Utilize the built-in mounting points to secure the unit firmly.
• Connectivity: Due to the high-density 70-way connector, ensure the mating cable assembly is aligned correctly before insertion to avoid damaging the pins.
• Power: Verify the DC voltage supply is stabilized and protected against surges, as the Twido Extreme base is sensitive to electrical noise common in mobile or harsh environments.
• Grounding: Connect the chassis ground point to a high-quality earth connection to minimize interference and protect internal logic components.
