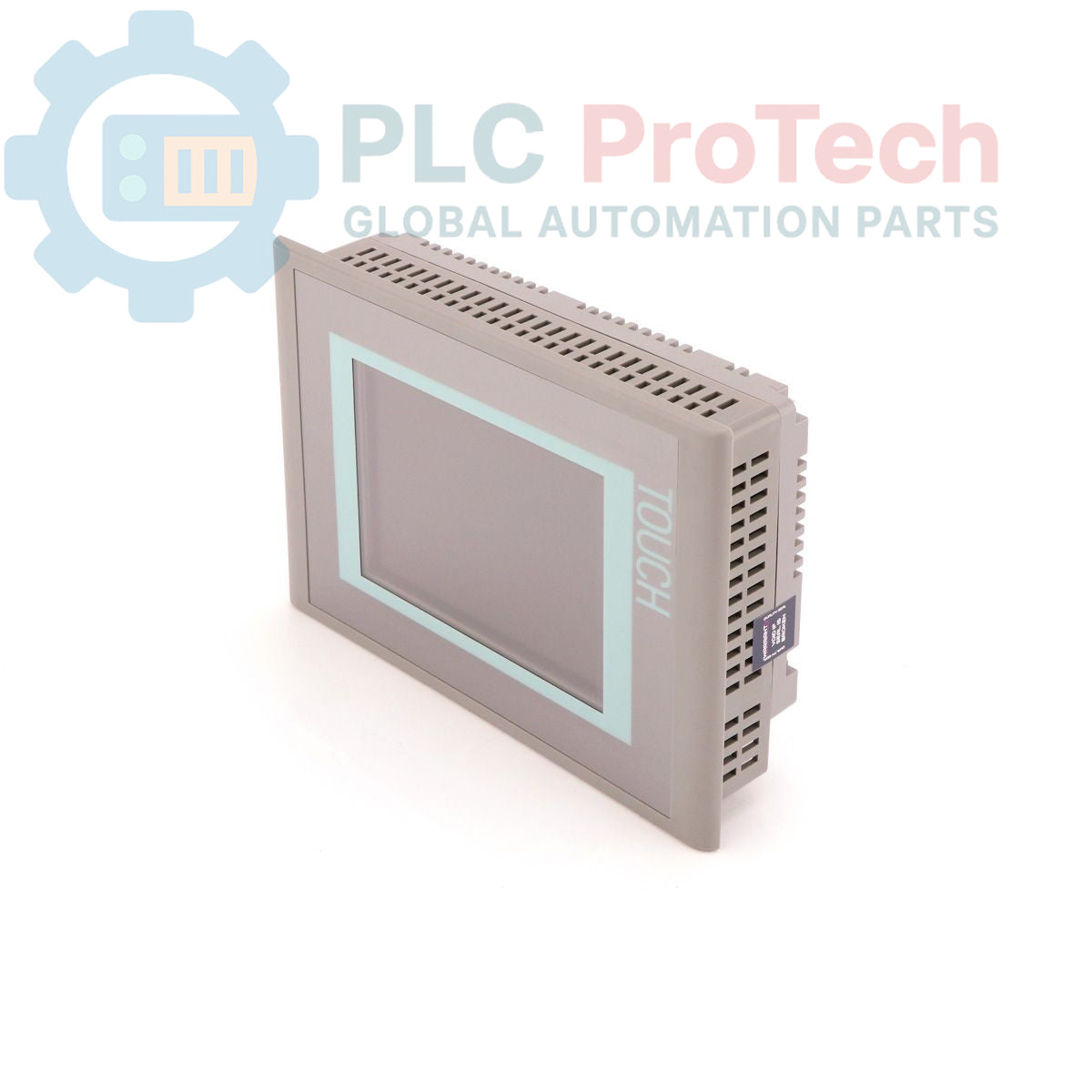

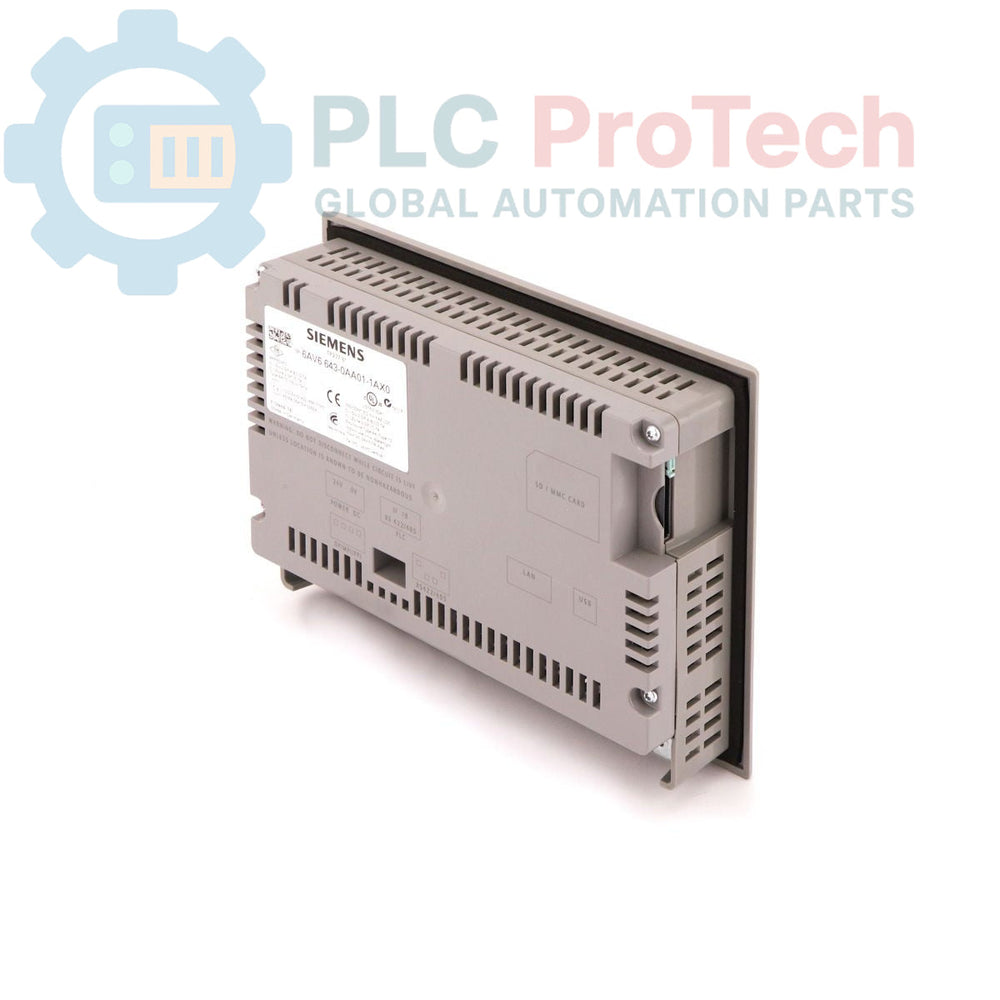

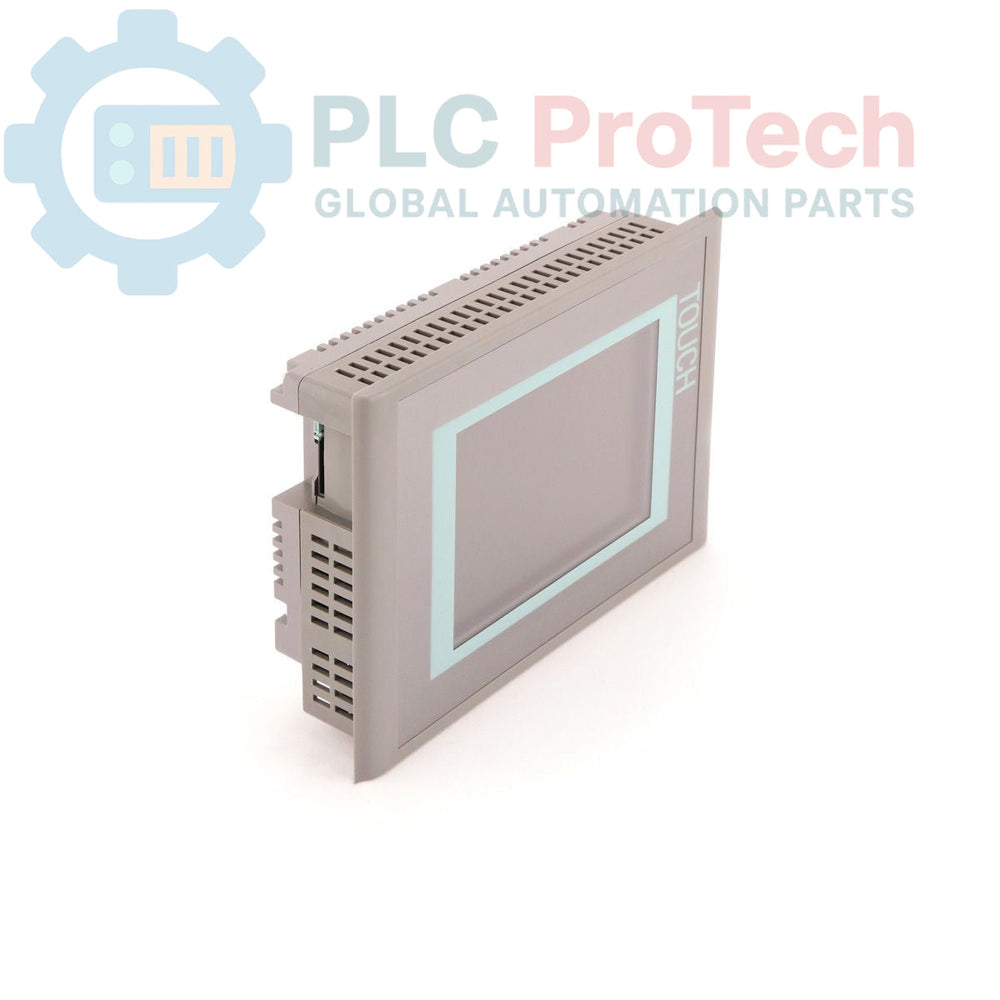

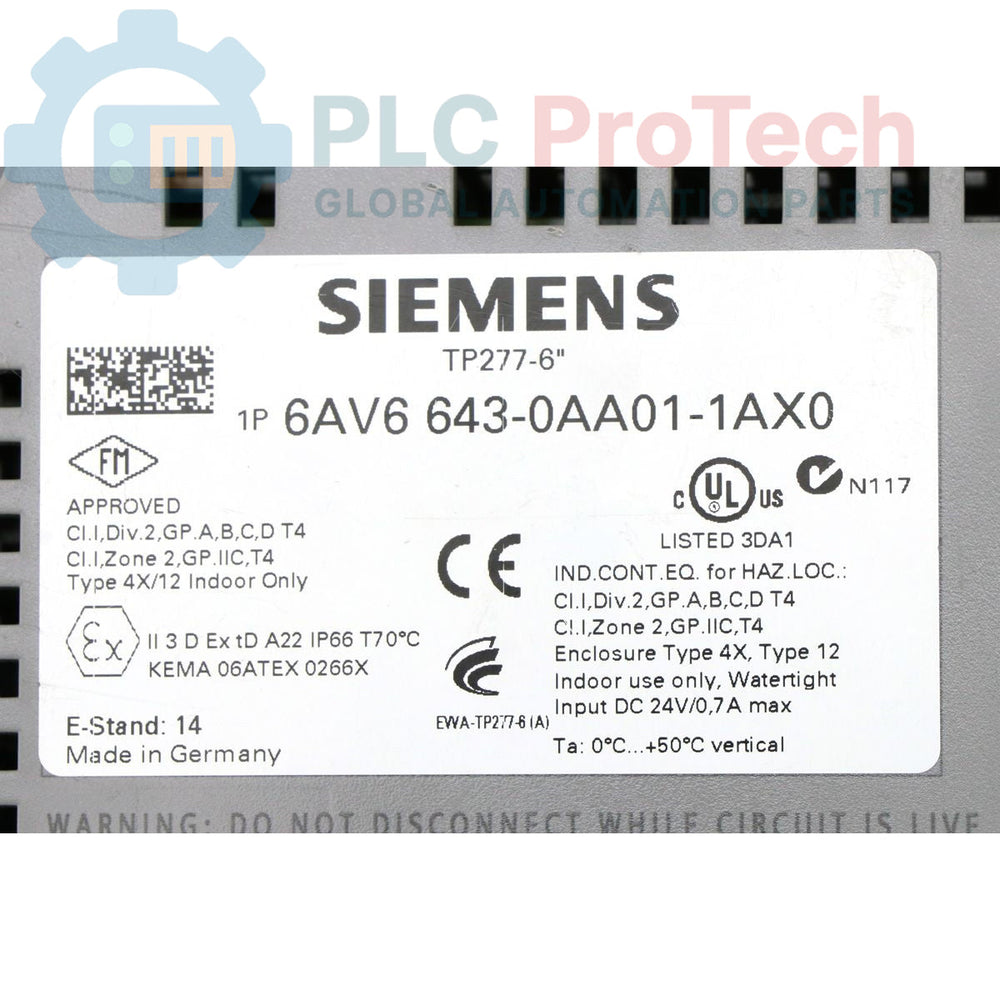

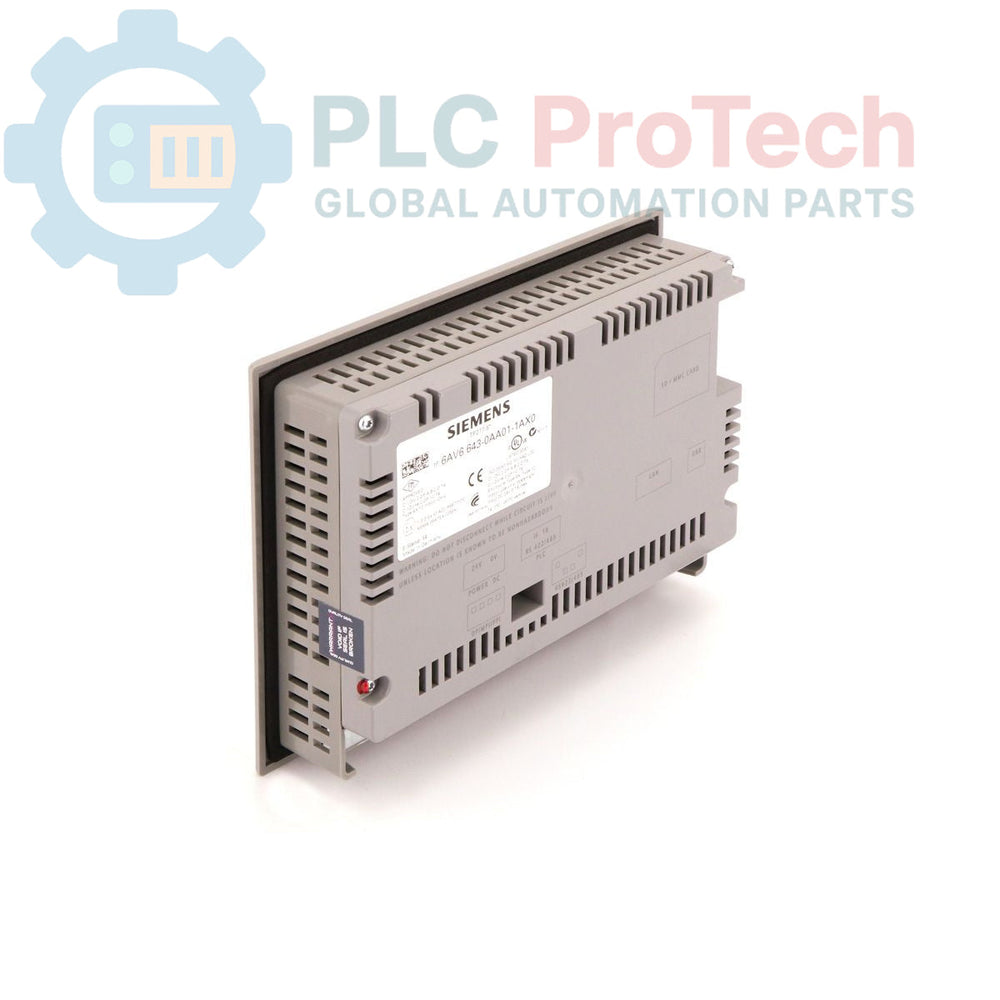

Siemens 6AV6643-0AA01-1AX0 Panneau tactile SIMATIC TP 277

The 6AV6643-0AA01-1AX0 is a SIMATIC TP 277 6-inch human-machine interface (HMI) panel, designed for demanding industrial automation tasks. This touch panel features a 5.7-inch TFT display with a resolution of 320 x 240 pixels and supports 256 colors, providing clear and reliable process visualization. It is equipped with 4 MB of configuration memory, facilitating efficient data handling and user interface navigation. Compatible with WinCC flexible 2005 (or higher), this unit is engineered for seamless integration into existing control architectures using Profinet or Profibus protocols.

Features

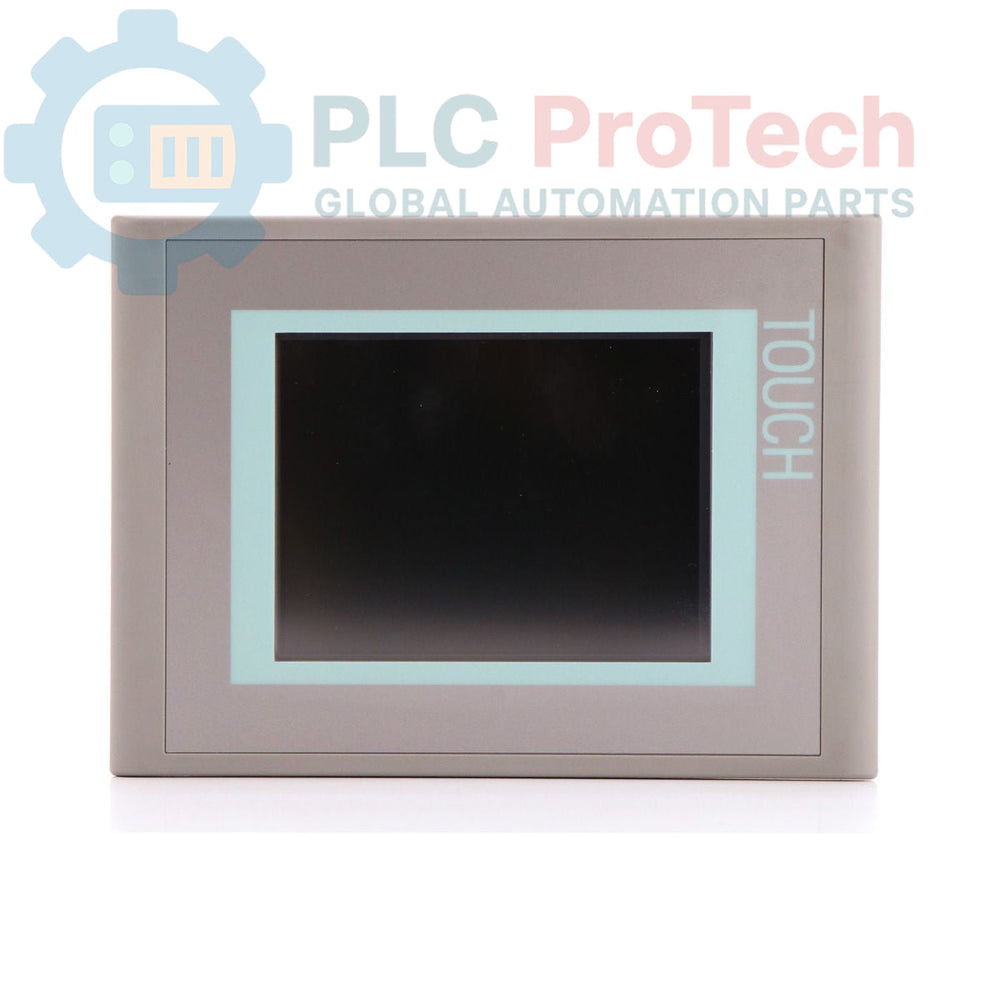

• Display: 5.7-inch TFT screen (320 x 240 pixels).
• Color Depth: Supports 256 colors for process visualization.
• Memory: 4 MB of user memory for project configuration.

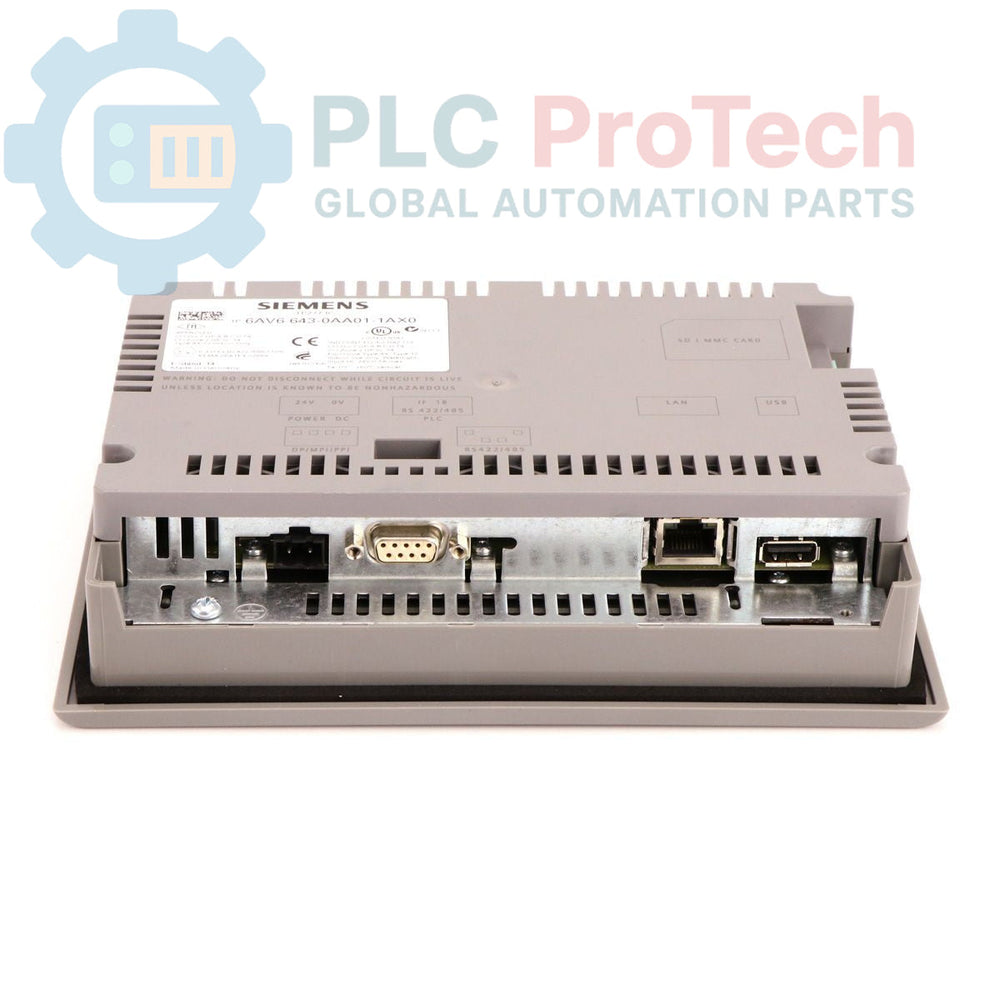

• Connectivity: Integrated interfaces for Profinet and Profibus DP.
• Input Method: Analog resistive touch screen for precise operator input.
• Power: 24V DC supply voltage.

Applications

• Machine-level operator control and monitoring.
• Industrial automation process supervision.
• Integration within modular automation systems.
• Retrofitting and maintenance of existing SIMATIC-based control platforms.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the panel is installed in a cut-out with the provided gasket to maintain the required IP protection rating on the front side.
• Ventilation: Maintain adequate clearance behind the unit to prevent overheating, especially in enclosed control cabinets.
• Grounding: Use the designated functional ground terminal to ensure electromagnetic compatibility (EMC) and reduce electrical noise interference.
• Cable Routing: Separate signal cables (Profinet/Profibus) from high-voltage power lines to minimize potential signal degradation.
• Cleaning: Use a damp, soft cloth with a mild cleaning agent for the touch screen surface; avoid abrasive materials that could scratch the resistive overlay.
