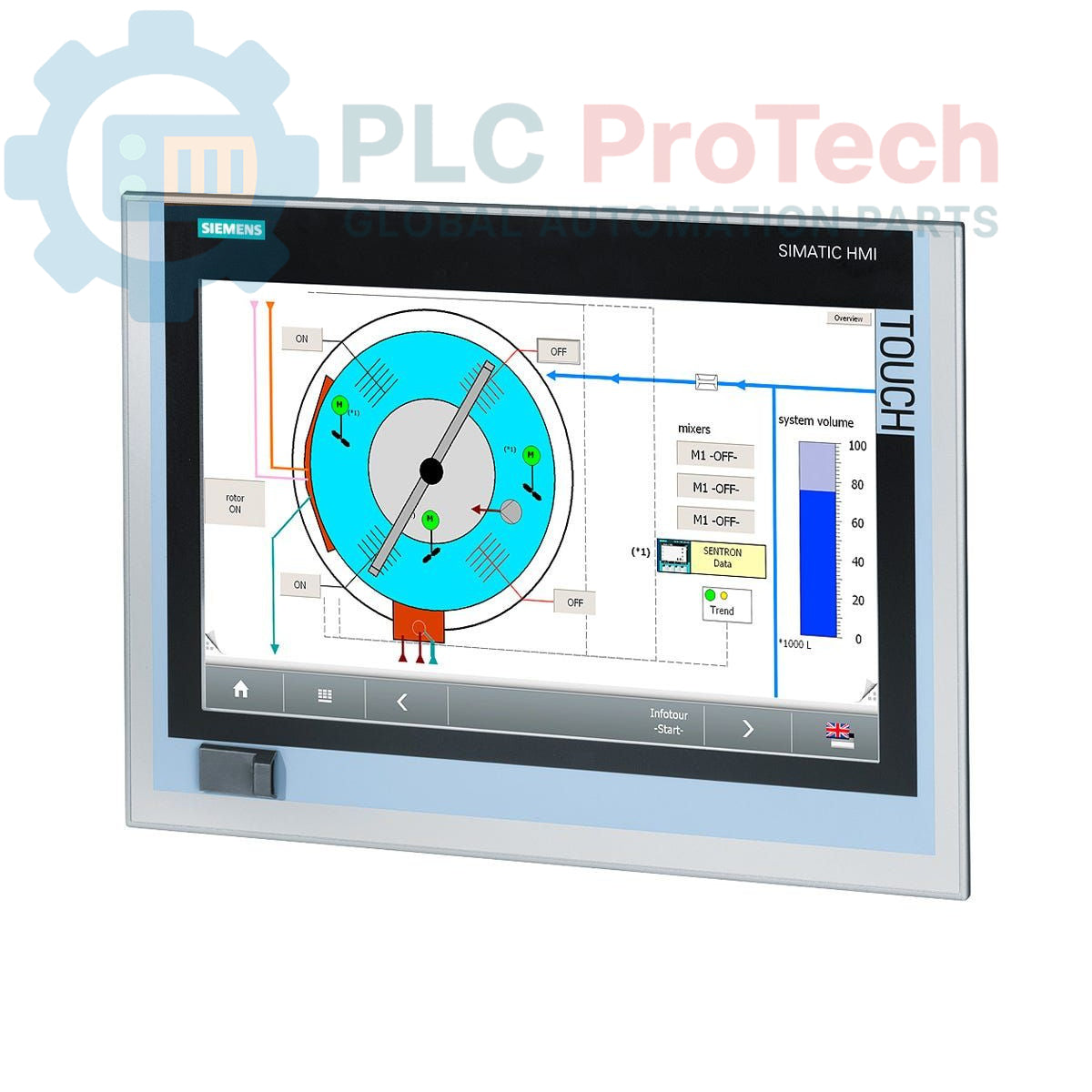

Siemens 6AV7882-0DB30-7CA0 SIMATIC IPC277E Panel PC

Il ne reste que 7 article(s) en stock

Fabricant : Siemens
N° de produit : 6AV7882-0DB30-7CA0
Pays d'origine :Allemagne
Type de produit : Panel PC
Code-barres : 85371098
Paiement : Virement bancaire, Western Union
Poids : 4g
Dimensions : 45 cm x 35 cm x 15 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Description

The Siemens 6AV7882-0DB30-7CA0 is a SIMATIC IPC277E Nanopanel PC designed for demanding visualization and control tasks in industrial environments. This unit features a 15-inch TFT touch display, powered by an Intel Celeron N2930 processor with four cores. It is equipped with 8 GB of RAM and a 240 GB Solid State Drive (SSD) for responsive performance and reliable data storage. The device operates on a standard 24 V DC power supply and provides extensive connectivity options, including dual Gigabit Ethernet ports and multiple USB interfaces.

Features

15-inch TFT color touchscreen display
Intel Celeron N2930 processor (4 cores / 4 threads)
8 GB of installed RAM
240 GB Solid State Drive (SSD) for storage
Dual 10/100/1000 Mbps Ethernet ports for network connectivity
Multiple USB ports including USB 3.0, USB 2.0, and a front-accessible USB port
DisplayPort for connecting an external monitor
Integrated CFast card slot for expansion
Powered by a 24 V DC supply
Pre-installed with Windows 10 Pro or Windows 11 Pro (64-bit)

Applications

This Panel PC is suitable for a variety of industrial applications, including:

Human-Machine Interface (HMI) for machinery control
Process visualization and data acquisition (SCADA)
Machine-level data logging and analysis
Control room operator stations
Factory automation and assembly line monitoring

Technical Specifications

Product Identification
Manufacturer	Siemens
Product Series	SIMATIC IPC277E (Nanopanel PC)
Model Number	6AV7882-0DB30-7CA0
Product Lifecycle Status	Phase-Out
Hardware
Processor	Intel Celeron N2930 (4 Cores / 4 Threads)
Memory (RAM)	8 GB
Storage	240 GB SSD
Display	15-inch Touch TFT
Interfaces
Ethernet	2x 10/100/1000 Mbps RJ45
USB	1x USB 3.0, 3x USB 2.0, 1x Front USB
Video Output	1x DisplayPort
Serial	1x Serial (COM 1)
Expansion	1x CFast Slot
Electrical
Power Supply	24 V DC
Software
Operating System	Windows 10 Pro or Windows 11 Pro, 64-bit, MUI (EN, DE, FR, IT, ES)
Included SIMATIC Software	None
Logistics & Compliance
Shipping Weight	4.00 kg
Commodity Code	85371098
ECCN	5A992
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	45 cm x 35 cm x 15 cm

Installation Guidelines

CRITICAL WARNING: Installation must be performed by qualified personnel only. Failure to follow proper safety procedures can result in equipment damage, serious injury, or death. Always de-energize and lock out/tag out (LOTO) all power sources before installation or maintenance.

1 Ensure the control cabinet is de-energized and all related circuits are locked out before beginning work.
2 Prepare the panel cutout according to the device's mechanical specifications. Verify dimensions for a precise fit.
3 Insert the Panel PC into the cutout from the front and secure it evenly using the mounting clamps provided. Do not overtighten.
4 Connect the functional earth (FE) or protective earth (PE) terminal to the cabinet's ground bus using a low-impedance conductor.
5 Connect the 24 V DC power supply to the designated power terminals, ensuring correct polarity.
6 Connect Ethernet, USB, and any other required peripheral cables. Ensure proper cable routing and strain relief.
7 After verifying all connections, remove the lockout/tagout devices and re-energize the cabinet to begin system configuration.

Key Features:

#Panel PC #SIMATIC IPC277E

What processor is used in the 6AV7882-0DB30-7CA0 Panel PC?

This unit is equipped with an Intel Celeron N2930 processor, which features four cores and four threads for efficient multitasking in industrial applications.

What are the primary communication interfaces on this device?

It includes two Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports, one USB 3.0 port, three USB 2.0 ports, a front-accessible USB port, and one serial (COM 1) port.

What operating system is pre-installed on this Panel PC?

The device is supplied with a pre-installed 64-bit version of either Windows 10 Pro or Windows 11 Pro. The OS includes multi-language support (English, German, French, Italian, Spanish).

Does this unit require an external power supply?

Yes, the SIMATIC IPC277E requires a stable 24 V DC power supply for operation, which is standard in industrial control panels.

Is any Siemens SIMATIC software included with this model?

No, the product description explicitly states that this specific model is supplied 'WITHOUT SIMATIC SOFTWARE', allowing users to install their own licensed software packages.
