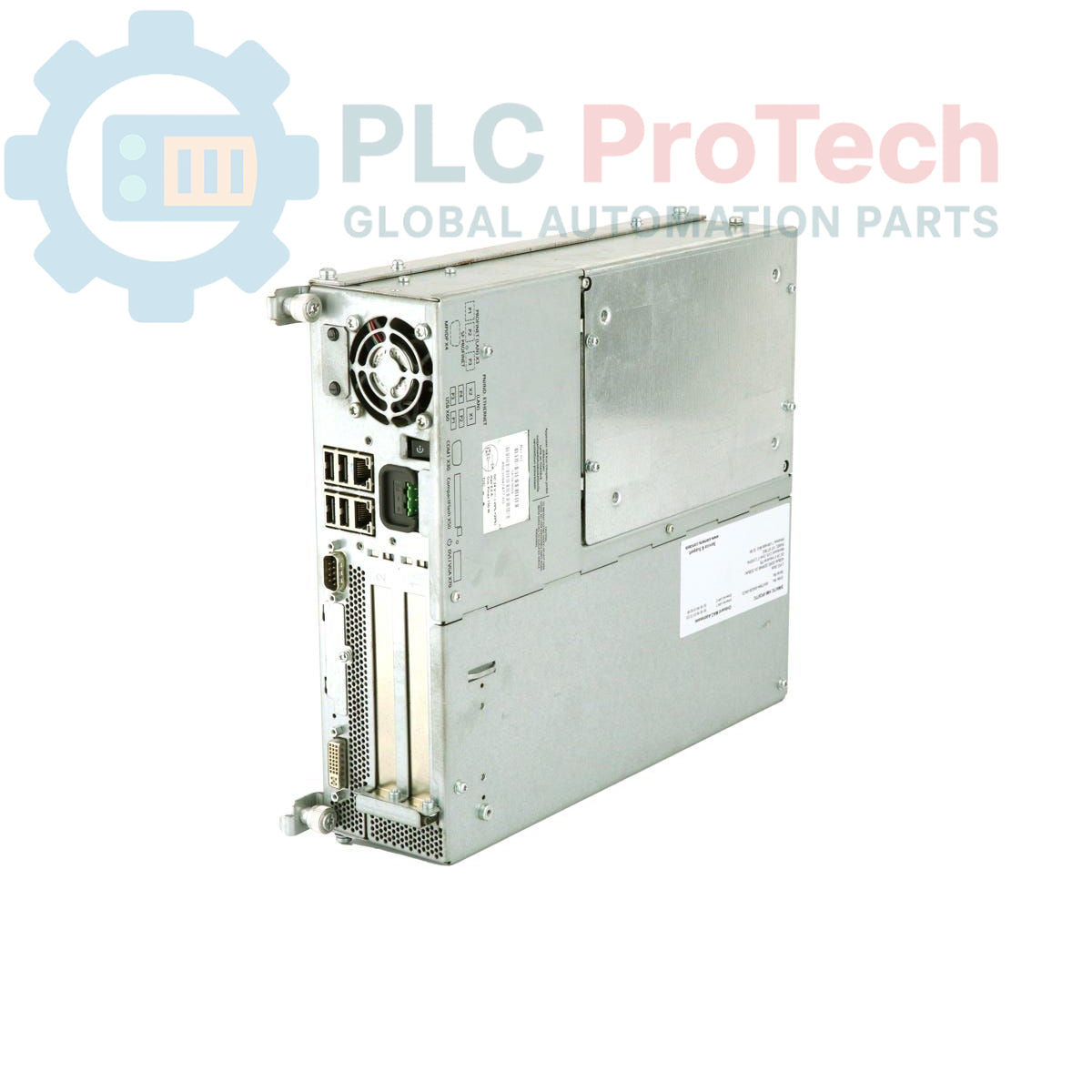

Siemens 6AV7894-0AG32-1BB0 SIMATIC HMI IPC677C Panel PC

Description

Features

• 19-inch Touchscreen Display (1280 x 1024 resolution)
• Intel Core i7-610E Processor (2.53 GHz, 2 Cores/4 Threads, 4 MB Cache)
• 4 GB DDR3 1066 DIMM RAM
• Dual 10/100/1000 Mbit/s Gigabit Ethernet Ports
• Multiple USB 2.0 Interfaces (4 rear, 1 front-side)
• Serial COM1 Port
• Onboard RAID1 (2 x 320 GB SATA mirrored disks)
• Watchdog, Temperature, and Fan Monitoring
• DVD+-R+-RW Drive
• Expansion Slots: 1x PCI, 1x PCIe (x16)
• Pre-installed Windows XP Professional SP3 MUI
• 24 V DC Power Supply

Applications

• Industrial automation and control systems
• Human-Machine Interface (HMI) for process visualization
• Data acquisition and processing in demanding production environments
• Machine control and operational monitoring

Technical Specifications

Connections / Interfaces

The Siemens 6AV7894-0AG32-1BB0 provides the following external interfaces:

• 2x 10/100/1000 Mbit/s Ethernet ports for network connectivity.
• 4x USB V2.0 ports located at the rear for peripheral connections.
• 1x Serial (COM1) port for legacy device communication.
• 1x Front-side USB interface for convenient access.
• 24 V DC power input terminal.

Installation Guidelines

1. De-energize System: Before commencing any installation or wiring, ensure that all power to the system and the Panel PC is completely de-energized and secured against accidental re-energization.
2. Mounting: Securely mount the Panel PC into the designated panel cutout. Ensure proper sealing to maintain the specified IP rating of the front panel.
3. Power Connection: Connect the 24 V DC power supply to the designated terminals, observing correct polarity. Verify the power source meets the required voltage and current specifications.
4. Grounding: Establish a robust protective earth (PE) connection for the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect standard Ethernet cables to the Gigabit Ethernet ports for network integration. Ensure cables are routed to avoid interference with power lines.
6. USB and Serial Connections: Connect USB peripherals and serial devices as required. Utilize the front-side USB port for temporary connections or frequently accessed devices.
7. Cable Management: Route all cables neatly and securely, ensuring they do not obstruct ventilation openings or moving parts. Use cable ties and strain relief where appropriate.
8. Environmental Considerations: Ensure adequate ventilation around the Panel PC to facilitate heat dissipation, especially given the integrated temperature and fan monitoring features. Avoid mounting in direct sunlight or near heat sources.
9. System Startup: After all connections are verified, re-energize the system and power on the Panel PC. Monitor initial startup for any error indicators.
