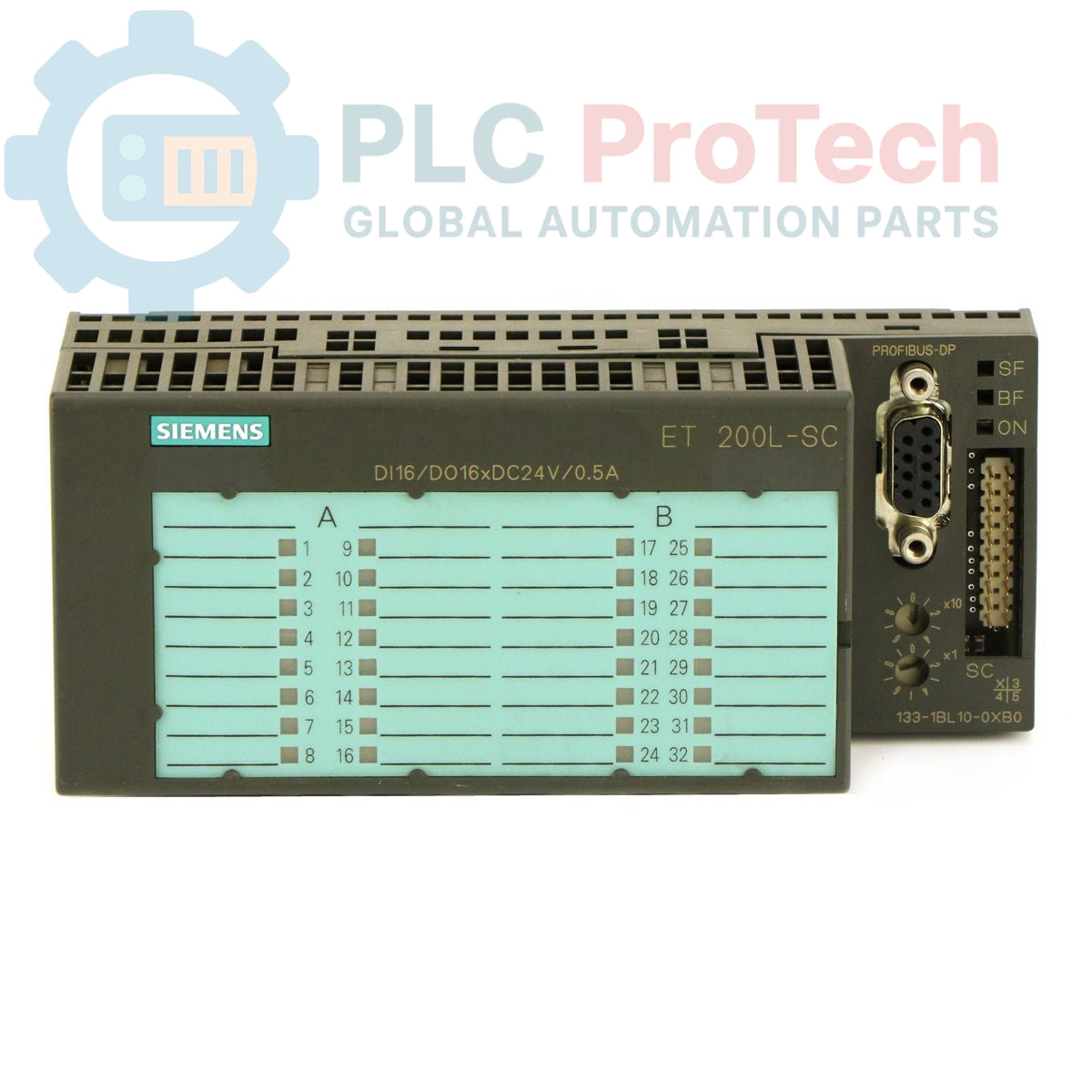

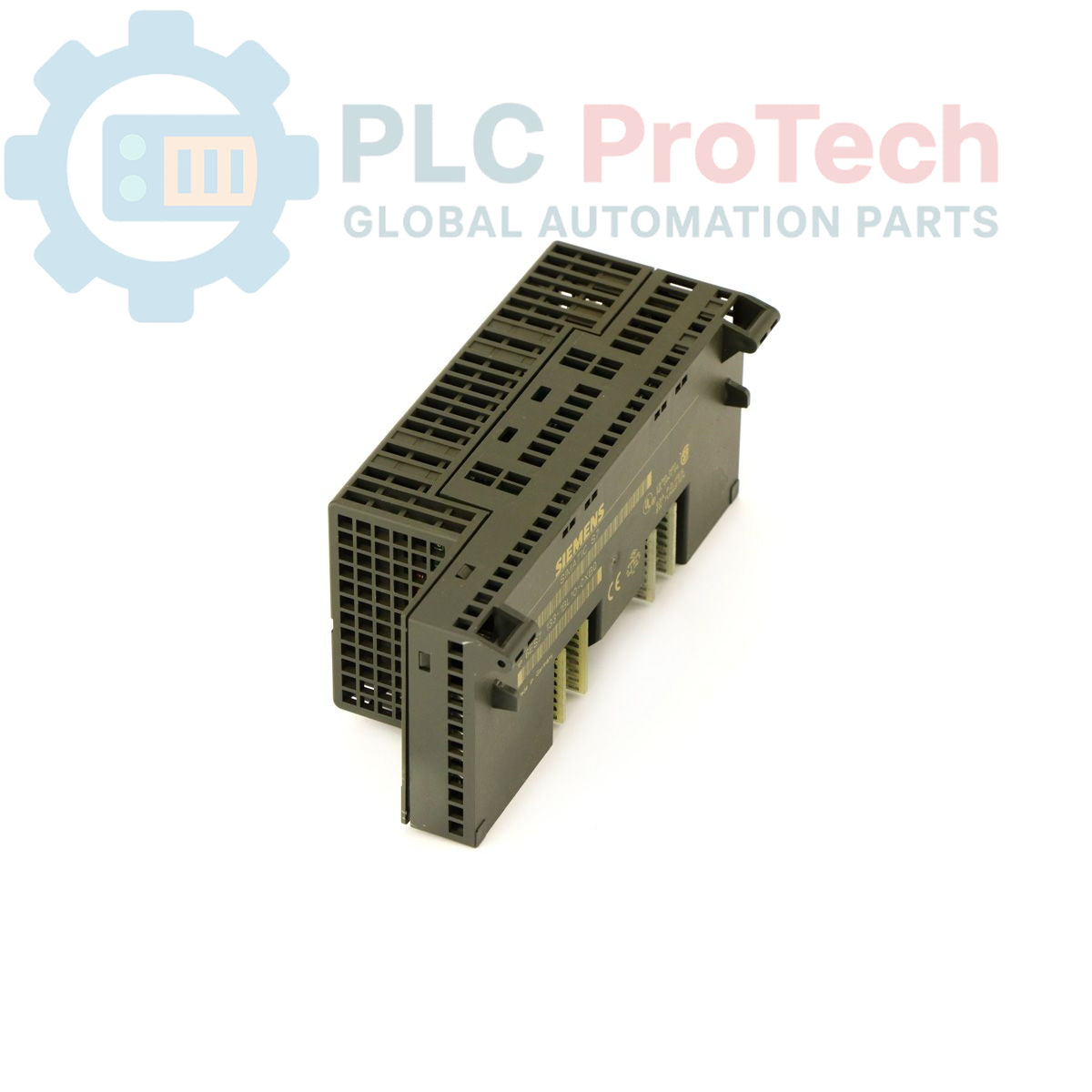

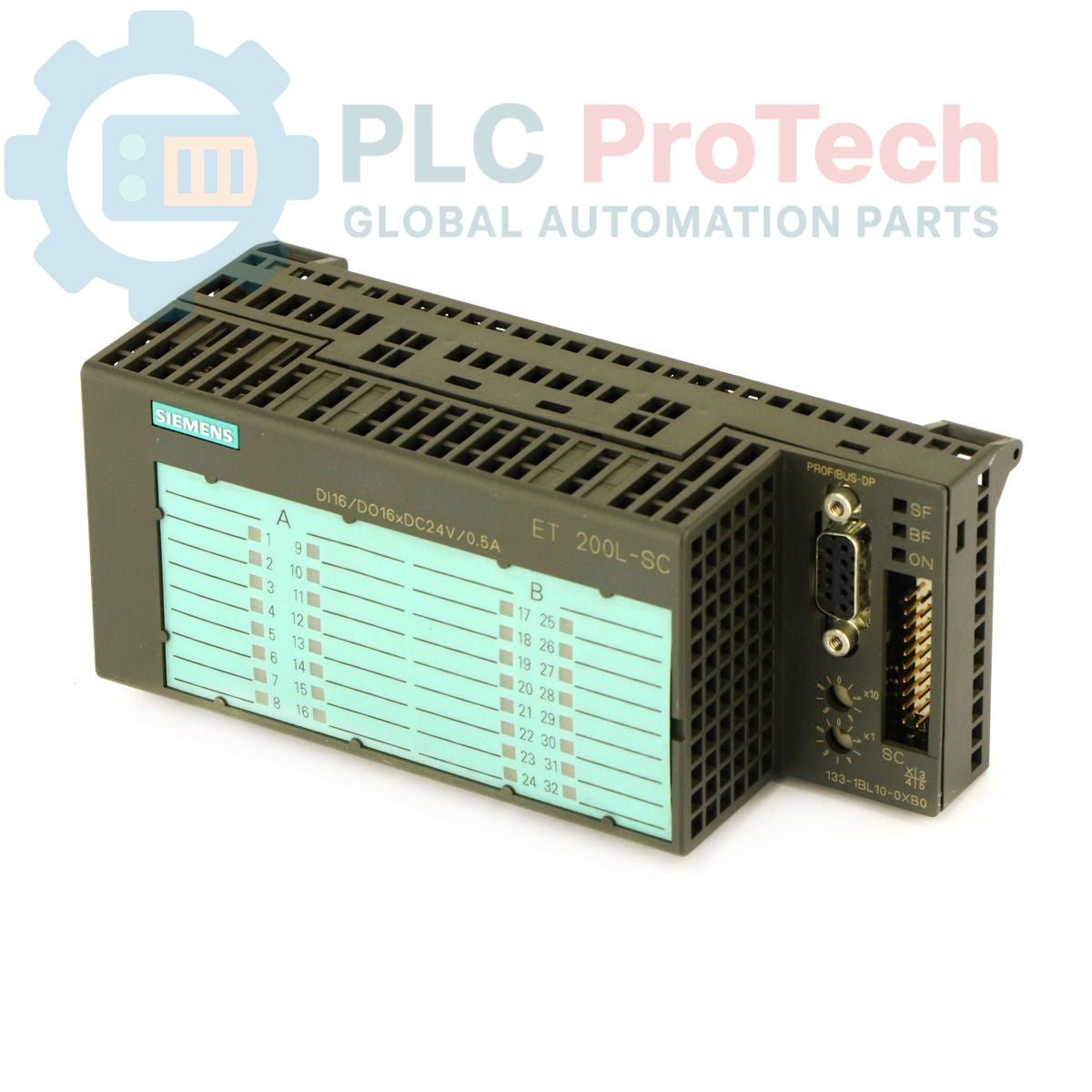

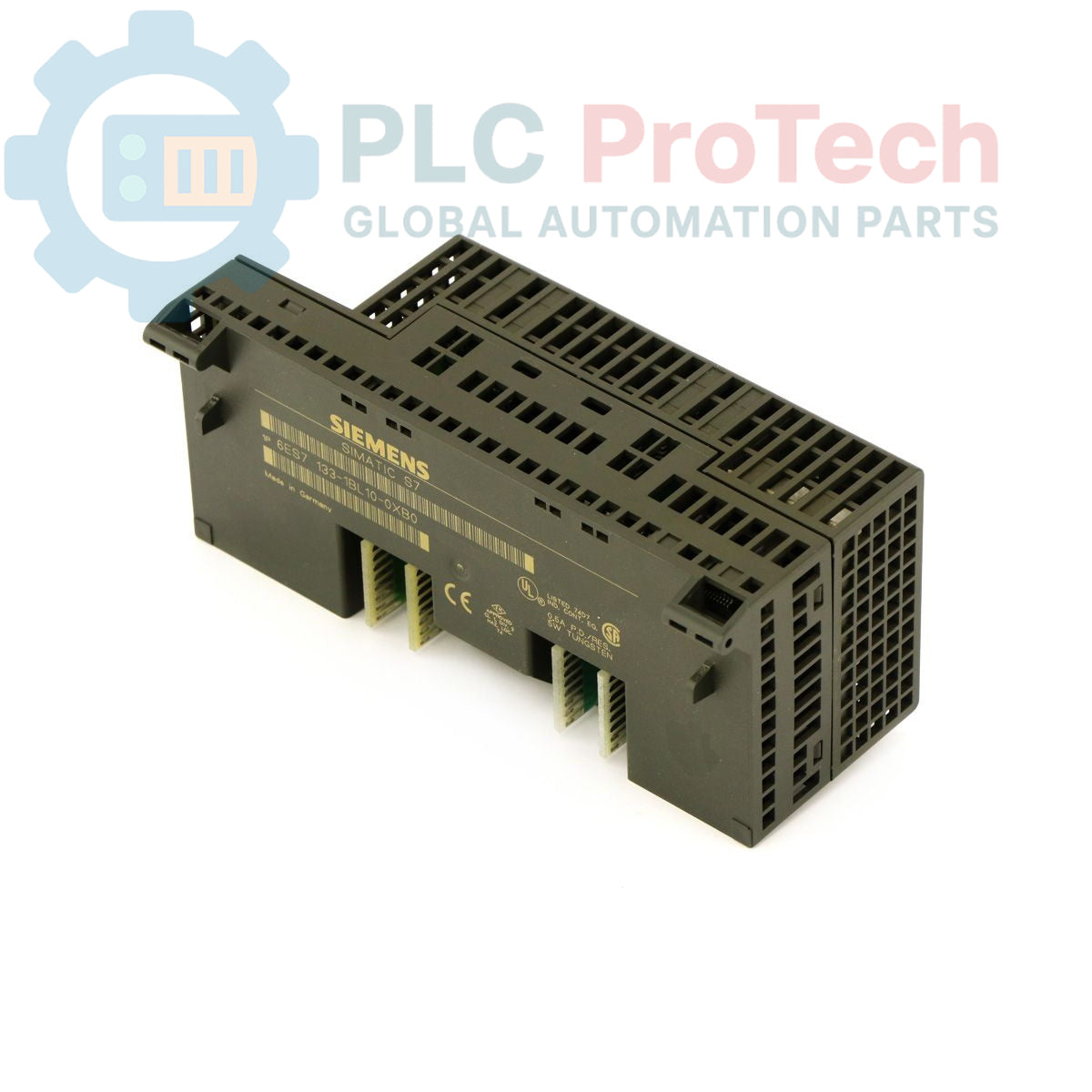

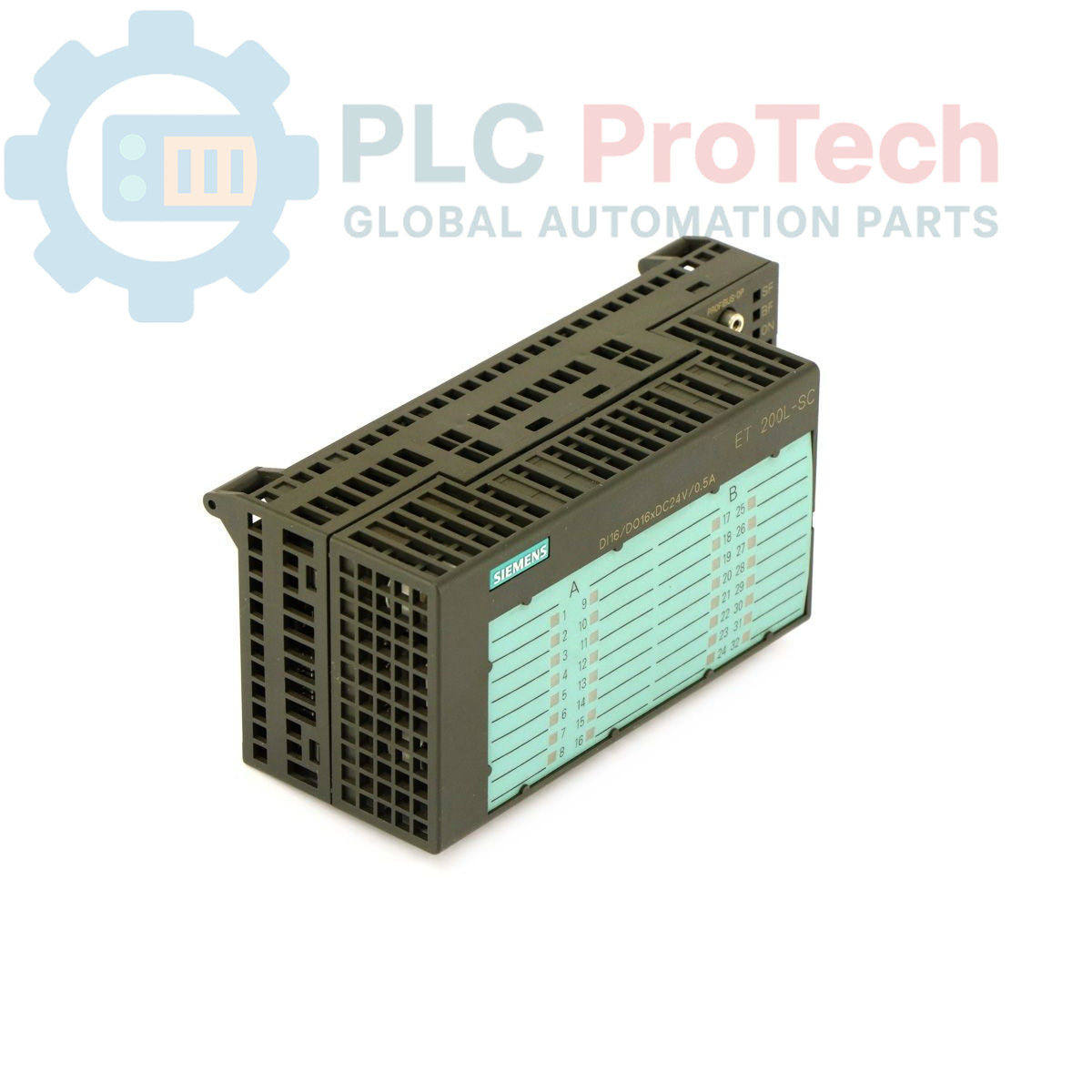

Siemens 6ES7133-1BL10-0XB0 Bloc électronique SIMATIC ET 200L-SC

Overview

The 6ES7133-1BL10-0XB0 (6ES71331BL100XB0) is a high-density electronic block for the SIMATIC ET 200L-SC distributed I/O system. This integrated module combines 16 digital inputs and 16 digital outputs (16 DI / 16 DO) into a single, compact unit designed for space-sensitive industrial applications. Operating on 24V DC, it provides a cost-effective solution for decentralized automation where a fixed number of I/O points is required. The "SC" designation refers to "Smart Connect," highlighting its role in simplifying field wiring and reducing cabinet footprint through its integrated block architecture.

Detailed Specifications

Operational Capabilities

The 6ES7133-1BL10-0XB0 excels in straightforward digital signal processing. Because it integrates both input and output functions into one electronic block, it eliminates the need for multiple separate modules, significantly reducing the required DIN rail length. It is commonly used in material handling, simple machine control, and secondary process loops. As an obsolete component, it is primarily sought after for maintenance and exact-replacement repairs in existing Siemens PLC installations to avoid the need for system re-engineering.

FAQs

How does the ET 200L-SC differ from the standard ET 200S?

The ET 200L series is a "Block" I/O system with a fixed configuration (e.g., 16/16), whereas the ET 200S is fully modular, allowing you to mix and match individual 2-channel or 4-channel cards. The ET 200L is generally more compact but less flexible.

Can I replace this module with the 6ES7133-1BL11-0XB0?

Yes, the 6ES7133-1BL11-0XB0 is the official Siemens successor. It provides the same 16DI/16DO functionality and physical footprint, typically offering improved component longevity and updated internal circuitry.
