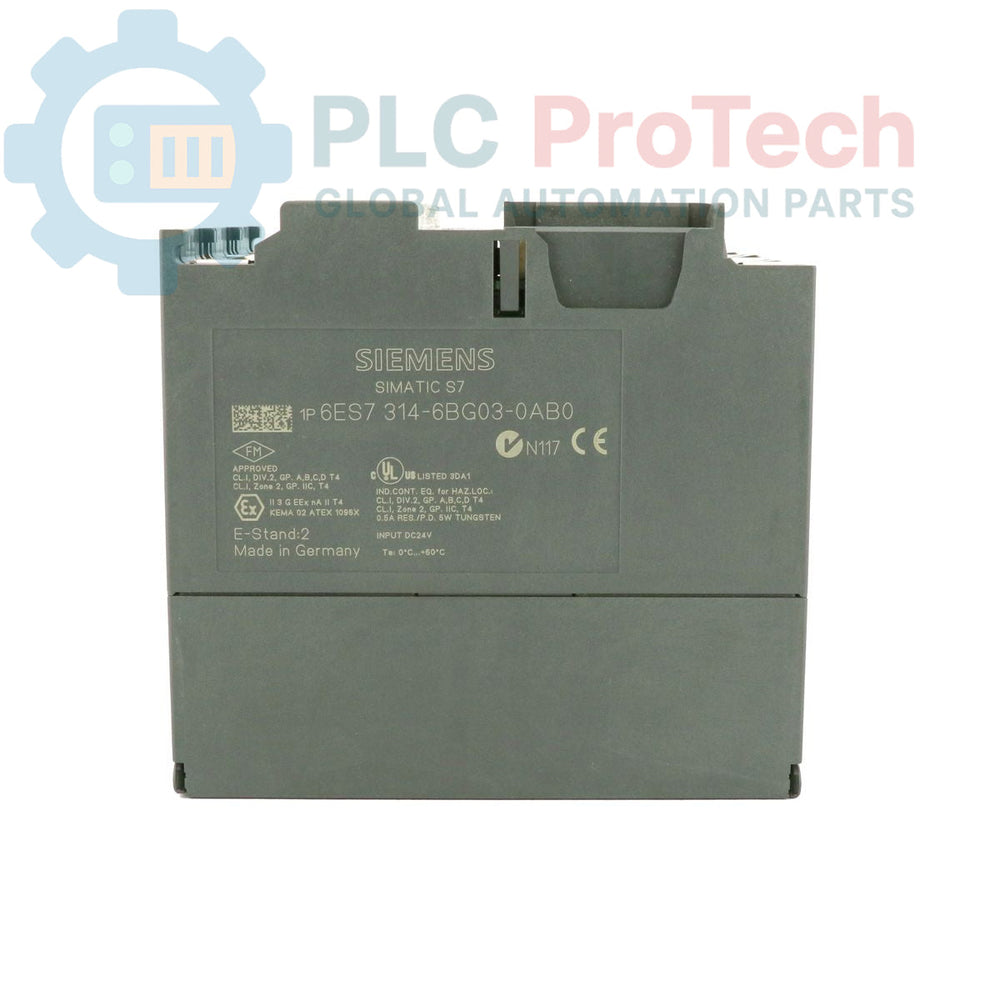

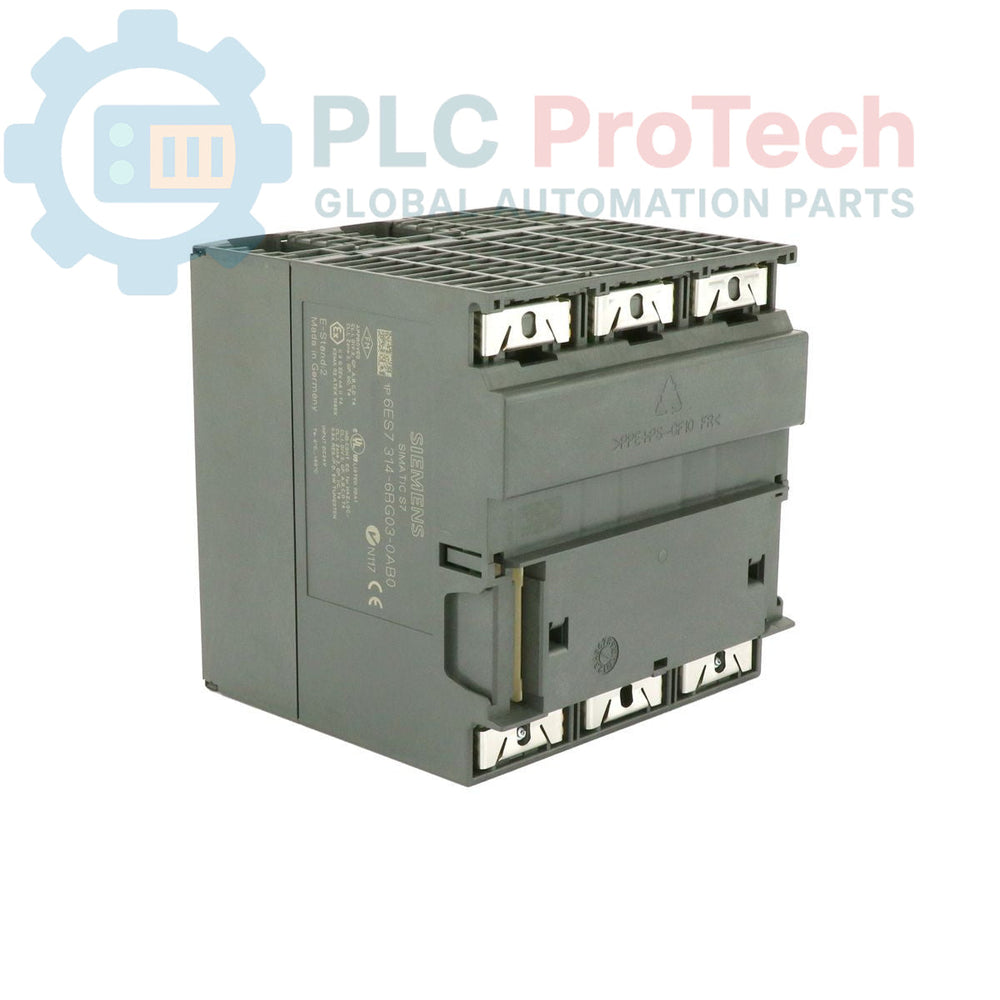

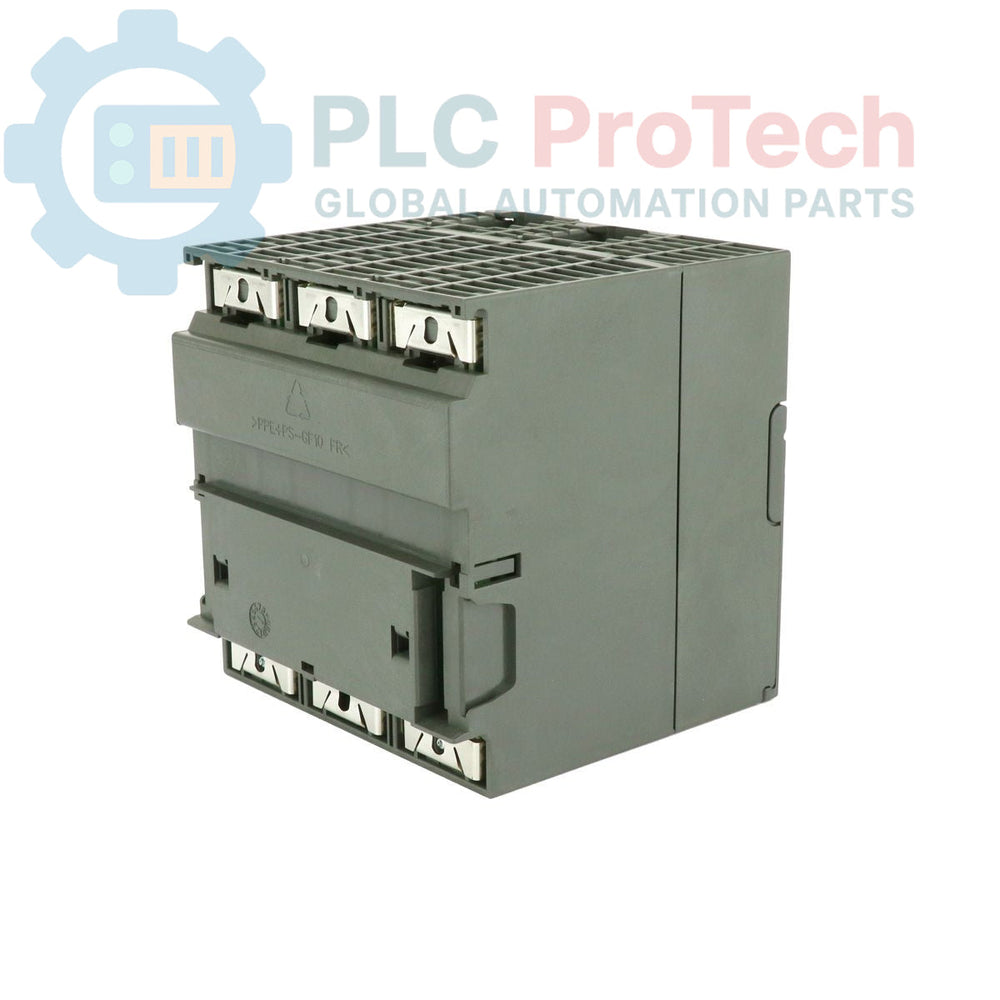

Siemens 6ES7314-6BG03-0AB0 CPU compacte SIMATIC S7-300

Description

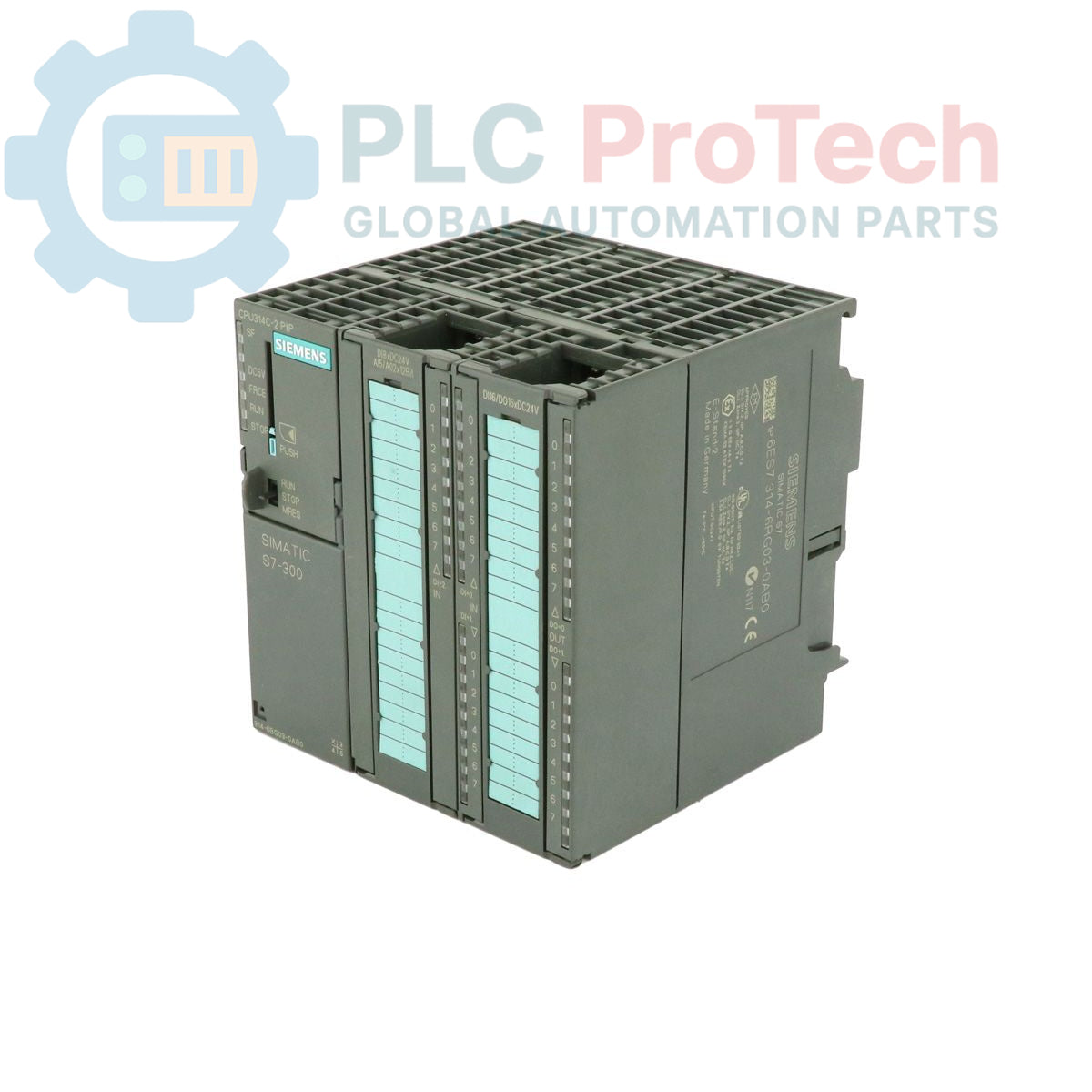

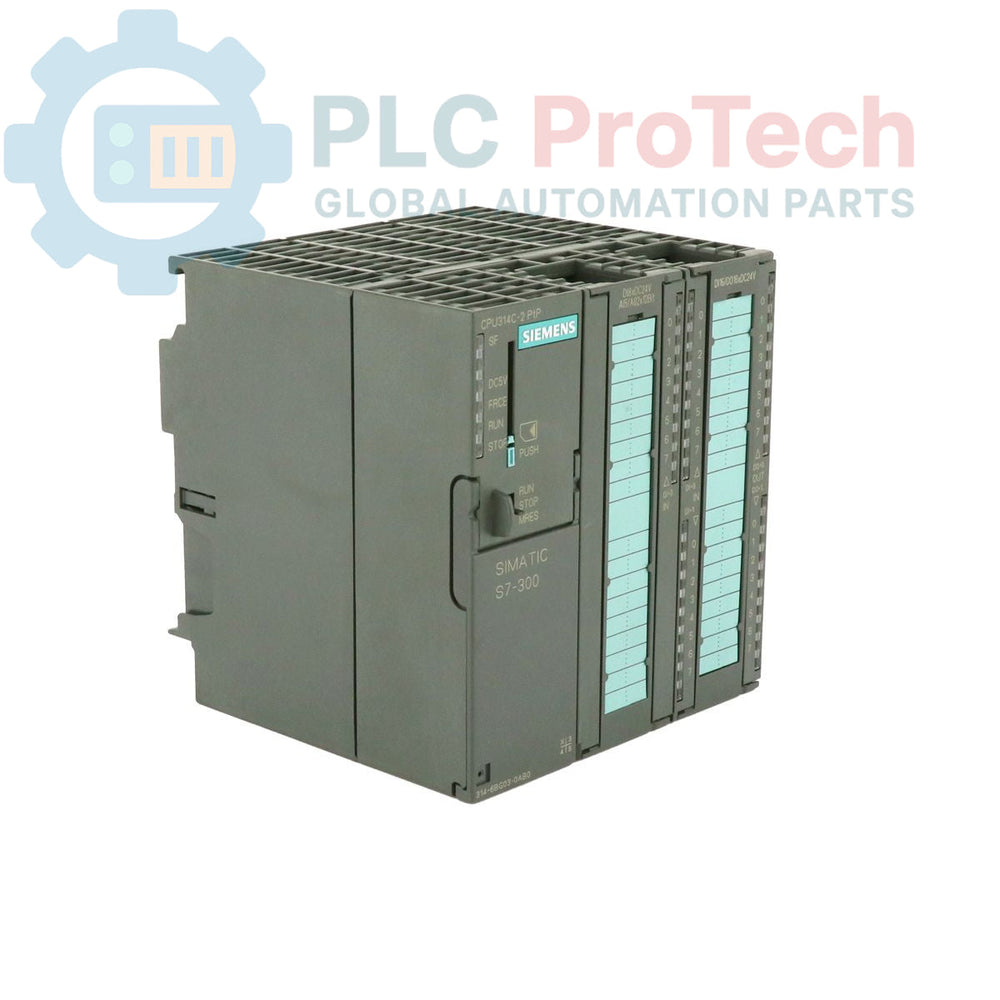

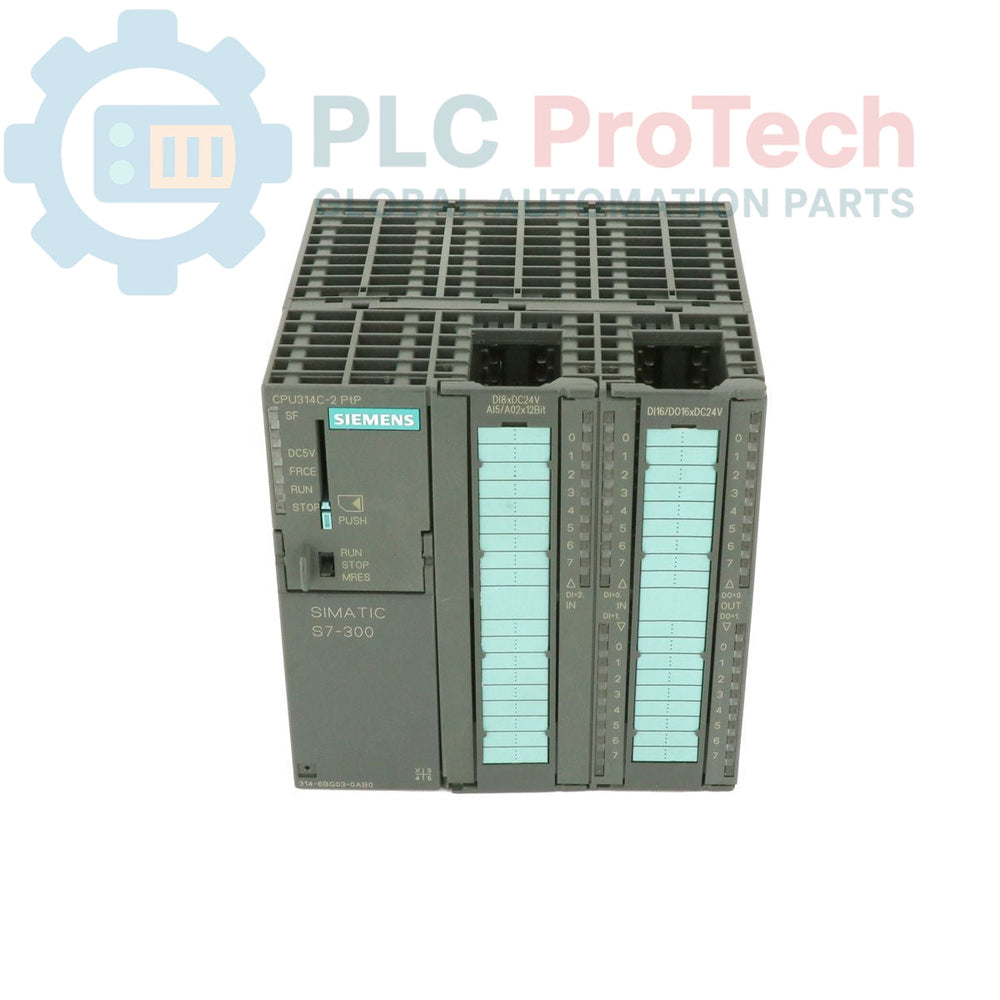

The Siemens 6ES7314-6BG03-0AB0 is a versatile Compact CPU (CPU 314C-2 PTP) designed for the SIMATIC S7-300 automation system. Combining processing power with integrated I/O functionality, this CPU is ideal for medium-sized automation tasks that require digital/analog control and high-speed counting. It features a 96 KB work memory, integrated 24 V DC power supply, and comprehensive I/O capabilities, reducing the need for external expansion modules.

Features

• Integrated I/O: 24 Digital Inputs (DI), 16 Digital Outputs (DO), 4 Analog Inputs (AI), 2 Analog Outputs (AO), and 1 Pt100 temperature input.
• Processing: 96 KB work memory for efficient logic execution.
• Performance: Four high-speed counters (60 kHz) for precision motion or encoder tasks.

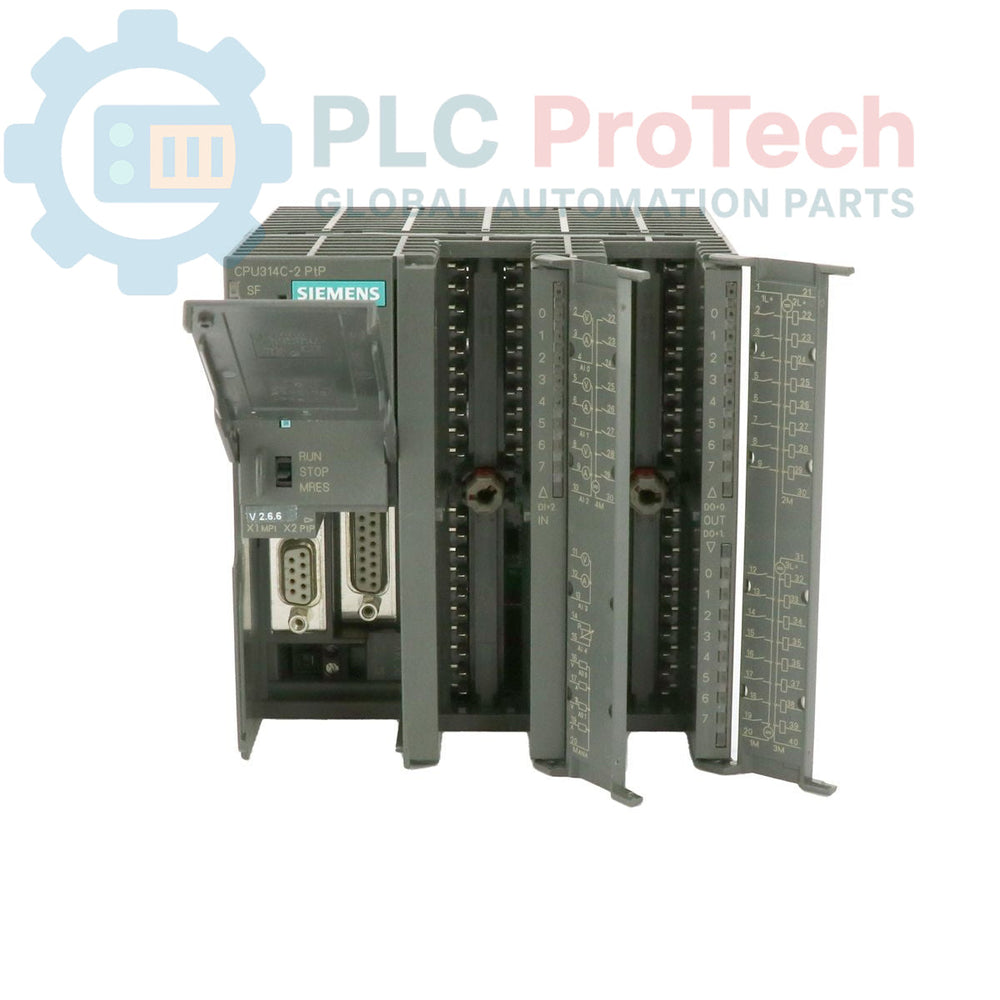

• Communication: Integrated MPI and RS485 (PTP) interfaces.
• Power: Integrated 24 V DC power supply.
• Required Accessories: Requires a Micro Memory Card (MMC) for program storage and 2 x 40-pole front connectors for wiring.

Applications

• Integrated machine control and factory automation.
• Process control requiring simultaneous analog and digital signal handling.
• High-speed pulse counting and position monitoring.
• Compact control cabinets where space and module count are restricted.

Technical Specifications

Installation Guidelines

• Mounting: Mount horizontally on an S7-300 standard profile rail. Ensure the CPU is secured using the provided mounting screws.
• Wiring: Utilize two 40-pole front connectors to terminate field devices. Always use the appropriate cable cross-sections to prevent voltage drops.
• Memory Card: Ensure a compatible Micro Memory Card is inserted into the slot before powering on the CPU to ensure the firmware and project data are loaded correctly.
• Grounding: Connect the CPU reference ground to the system common ground to maintain signal integrity, especially for analog input/output loops.
