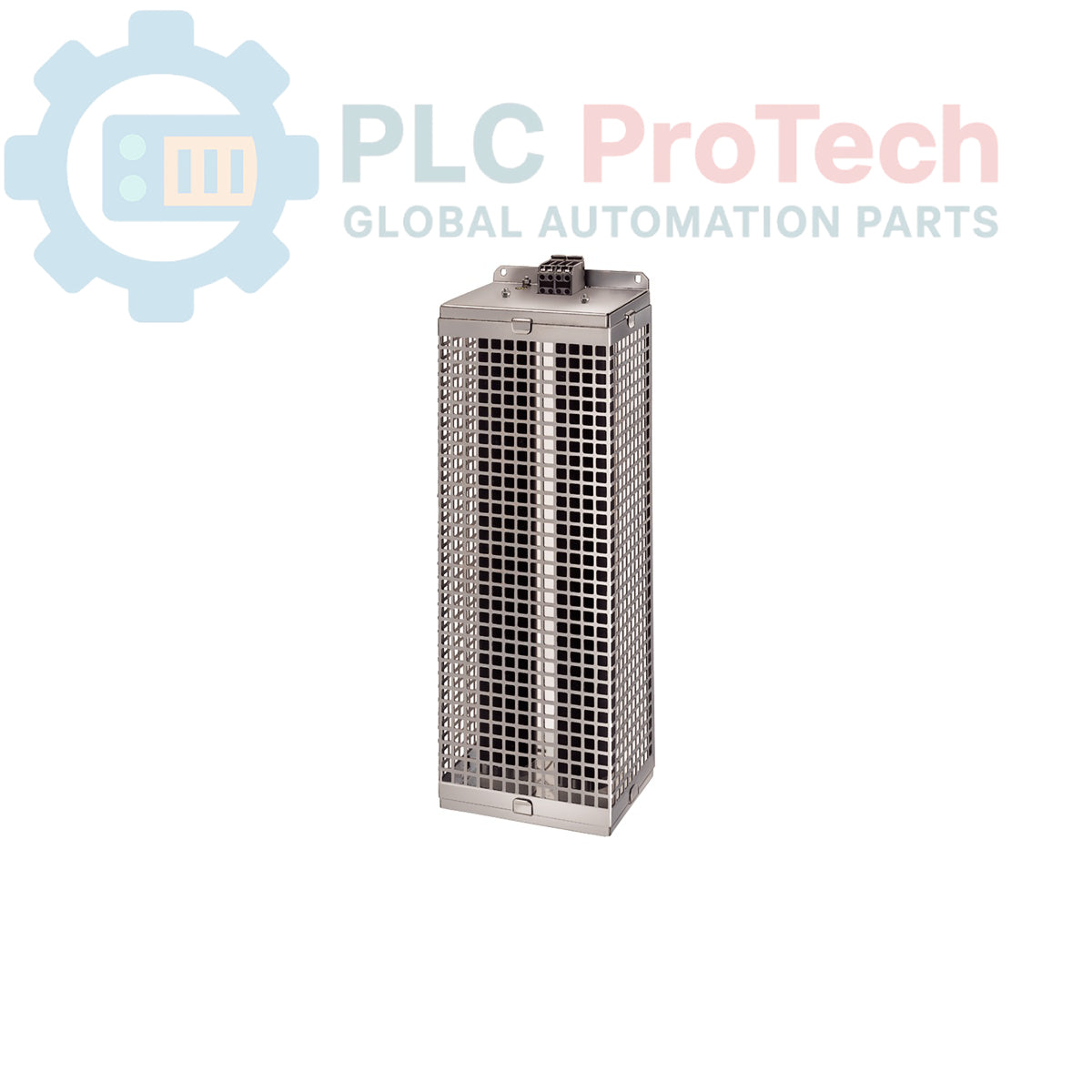

Résistance de freinage SIMOVERT MASTERDRIVES Siemens 6SE7022-0ES87-2DC0

The 6SE7022-0ES87-2DC0 is a high-performance braking resistor engineered for the SIMOVERT MASTERDRIVES series, specifically optimized for Compact Plus drive units. This resistor is designed to dissipate the kinetic energy generated during the deceleration of industrial motors, protecting the drive’s DC link from overvoltage. It provides a nominal braking power of 12 kW and is rated for a continuous dissipation (P_perm) of 900 W, with a resistance value of 33.3 Ohm. Capable of handling peak power (P3) levels up to 18 kW, this unit is essential for applications requiring controlled, high-torque deceleration in automated production lines.

Features

• Braking Capacity: Nominal braking power of 12 kW with a peak performance rating of 18 kW.
• Compatibility: Specifically designed for integration with SIMOVERT MASTERDRIVES Compact Plus drive units.
• Safety & Protection: IP20 degree of protection for safe operation in standard industrial cabinets.
• Efficient Dissipation: Provides a resistance value of 33.3 Ohm, optimized for rapid and stable energy dissipation.

Applications

• Controlled deceleration of high-inertia loads.
• Industrial crane and hoist systems.
• Fast-cycling machine tools and automated assembly equipment.
• Conveyor systems requiring frequent speed adjustments or emergency stopping.

Technical Specifications

Installation Guidelines

• Thermal Clearance: Due to the heat dissipated during braking, ensure adequate clearance is maintained around the resistor to prevent thermal saturation of surrounding components.
• Ventilation: If installed within a control cabinet, verify that the cabinet has sufficient forced-air ventilation to exhaust the heat generated by the resistor.
• Wiring: Use high-temperature resistant cabling for the connections between the drive braking unit and the resistor, as terminal temperatures can reach high levels during operation.
• Placement: Position the resistor as close to the drive as possible to minimize cable inductance, while adhering to required clearance distances.
