8965450000 | Weidmuller | Isolateurs de Sortie Courant ACT20X-SAI-HAO-S

Il ne reste que 10 article(s) en stock

Fabricant : Weidmuller
N° de produit : 8965450000
Pays d'origine :Allemagne
Type de produit : Isolateurs de Sortie Courant
Paiement : Virement bancaire, Western Union
Poids : 189g
Dimensions : 117.2 mm x 22.5 mm x 113.6 mm
Port d'expédition : Xiamen
Garantie : 12 mois

Voir les détails complets

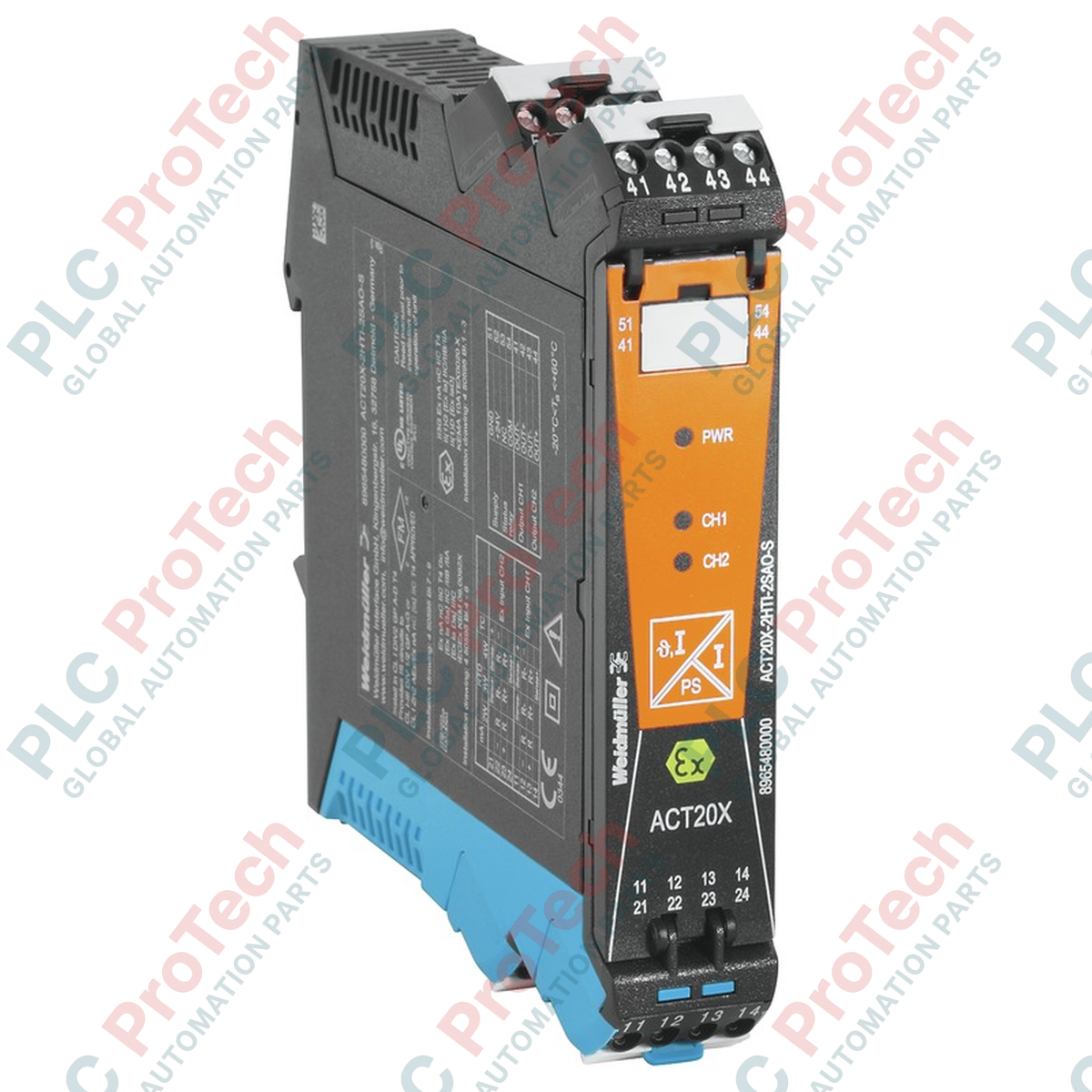

Weidmuller 8965450000 ACT20X-SAI-HAO-S Current Output Isolator

Description

Designed for hazardous area applications, the Weidmuller 8965450000 (ACT20X-SAI-HAO-S) provides reliable galvanic isolation and signal conditioning for analog current outputs. This high-performance current output isolator safely transmits control signals from safe-area controllers to intrinsically safe (Ex i) actuators, control valves, or I/P converters located in hazardous environments. Featuring an integrated alarm relay, the module monitors critical faults such as line interruptions, signal limit violations, and power supply failures, ensuring maximum process safety and system availability.

The device is fully configurable via standard FDT/DTM software, allowing engineers to customize alarm thresholds and operational parameters to match specific process requirements. Its compact 22.5 mm housing design optimizes cabinet space, making it an ideal choice for high-density control panels in demanding industrial environments.

Features

Galvanic isolation between input, output, and power supply circuits.
Intrinsically safe (Ex i) output design for hazardous area field devices.
Integrated alarm relay for real-time fault signaling and diagnostics.
FDT/DTM software-based configuration for precise parameterization.
Fast step response time of 5 ms or less for dynamic control loops.
Compact DIN-rail mountable housing with screw connection technology.

Applications

Chemical and petrochemical processing plants.
Oil and gas extraction, refining, and distribution.
Water and wastewater treatment facilities.
Power generation and utility control systems.
Intrinsic safety isolation for control valves, positioners, and I/P converters.

Technical Specifications

Manufacturer	Weidmuller
Part Number / Model	8965450000 (ACT20X-SAI-HAO-S)
Product Type	Current Output Isolator
Voltage Supply	19.2...31.2 V DC
Power Consumption	<= 1.0 W
Accuracy	< 0.1% of span
Temperature Coefficient	< 0.01% of span / degC (TU)
Step Response Time	<= 5 ms
Nominal Switching Voltage (Alarm)	<= 125 V AC / 110 V DC
Continuous Current (Alarm)	<= 0.5 A AC / 0.3 A DC
Alarm Functions	Signal limit exceeded, Line interruption at the input, No supply voltage, Device error
Configuration	FDT/DTM software
Type of Connection	Screw connection
Protection Degree	IP20
Operating Humidity	0...95% (no condensation)
Weight	0.189 kg
Dimensions (H x W x D)	117.2 mm x 22.5 mm x 113.6 mm

Installation Guidelines

Mounting: Install the device vertically on a standard TS 35 DIN rail.
Ventilation: Ensure adequate clearance around the module to facilitate natural convection cooling, especially when mounting multiple units side-by-side.
Wiring: Use appropriate wire cross-sections for the screw terminals. Keep intrinsically safe (Ex i) field wiring physically separated from non-intrinsically safe power and signal wiring in compliance with local electrical codes.
Grounding: Ensure the DIN rail is properly grounded to a low-impedance earth ground to maintain signal integrity and safety shielding.

Key Features:

#Current Output Isolators #Weidmuller ACT20X

What is the primary function of the Weidmuller 8965450000?

The Weidmuller 8965450000 (ACT20X-SAI-HAO-S) is a current output isolator designed to safely isolate and transmit analog current signals from safe control areas to intrinsically safe (Ex i) actuators or devices in hazardous environments.

How is the ACT20X-SAI-HAO-S configured?

This module is configured using standard FDT/DTM software, allowing precise parameterization of signal limits, alarm thresholds, and device diagnostics.

What alarm functions are integrated into this isolator?

The device features integrated alarm relays that trigger when a signal limit is exceeded, an input line interruption occurs, supply voltage is lost, or an internal device error is detected.

What is the step response time of this module?

The ACT20X-SAI-HAO-S features a fast step response time of 5 milliseconds or less, making it suitable for dynamic industrial control loops.
