Module d'entrée analogique (4 à 20 mA, 16 canaux) Yokogawa AAI143-S50

Product Overview

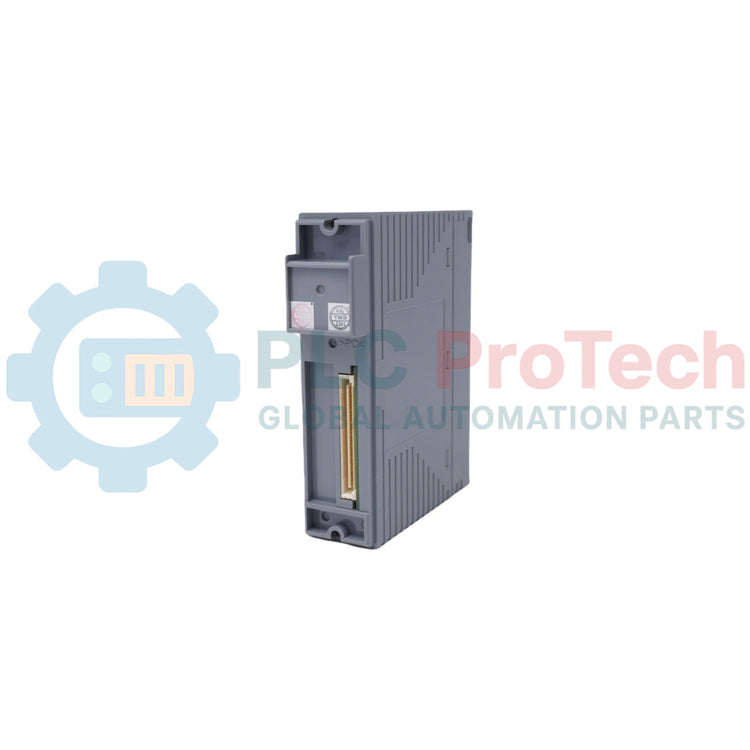

The Yokogawa AAI143-S50 (AAI143S50) is a high-precision 16-channel analog input module designed for the CENTUM VP and CENTUM CS 3000 Integrated Production Control Systems. Engineered to handle standard 4 to 20 mA signals, this module is a foundational component in process industries such as oil and gas, chemical processing, and pharmaceutical manufacturing. By providing high-density signal acquisition and superior galvanic isolation, the AAI143-S50 ensures that critical process variables—such as pressure, flow, and temperature—are transmitted to the DCS with absolute fidelity, maintaining system stability and preventing costly process interruptions.

Technical Specifications

Technical FAQs

Q1: What is the difference between the AAI143-S50 and the AAI143-H50?

A1: The AAI143-S50 is the standard analog input module, whereas the H-version (AAI143-H50) typically denotes the version with dedicated HART communication support built-in for every channel. Always verify your system's software license for HART passthrough functionality.

Q2: Can I use this module for 2-wire and 4-wire transmitters?

A2: Yes. The AAI143-S50 can interface with both. For 2-wire transmitters, an external 24 VDC power supply is usually required to loop-power the instrument, as the module itself is a current-sinking input device.

Q3: Does the S50 version support module redundancy?

A3: Yes. The "5" in the suffix confirms that it is redundancy-ready. When installed in pairs on a redundant-capable terminal board, the system ensures bumpless transfer in the event of a single module failure.

Engineering & Installation Guide

• Signal Loop Shielding: To prevent EMI/RFI interference from affecting the 0.1% accuracy, ensure that signal cables are twisted pairs with an overall shield. The shield should be grounded at only one point—typically at the DCS cabinet ground bus—to avoid ground loops.

• Terminal Tightening: When using the KS1 or pressure-clamp terminals, apply a torque of 0.5 to 0.6 Nm. Over-tightening can damage the module's header pins, while under-tightening leads to contact resistance that skews mA readings.

• Redundancy Validation: After installing a redundant pair, verify the status in the HIS (Human Interface Station) Maintenance Map. Both modules should show a "Normal" status, with one designated as "Active" and the other as "Standby."

Engineering Advantages

The AAI143-S50 is renowned for its long-term stability and minimal calibration drift, even in high-vibration or high-temperature environments. Its high-speed 10 ms data update cycle makes it suitable for fast-acting control loops such as anti-surge control in compressors. Furthermore, its design allows for hot-swapping under power, ensuring that instrument technicians can replace faulty modules without interrupting the continuous process control of the remaining 15 channels or the rest of the FIO node.
