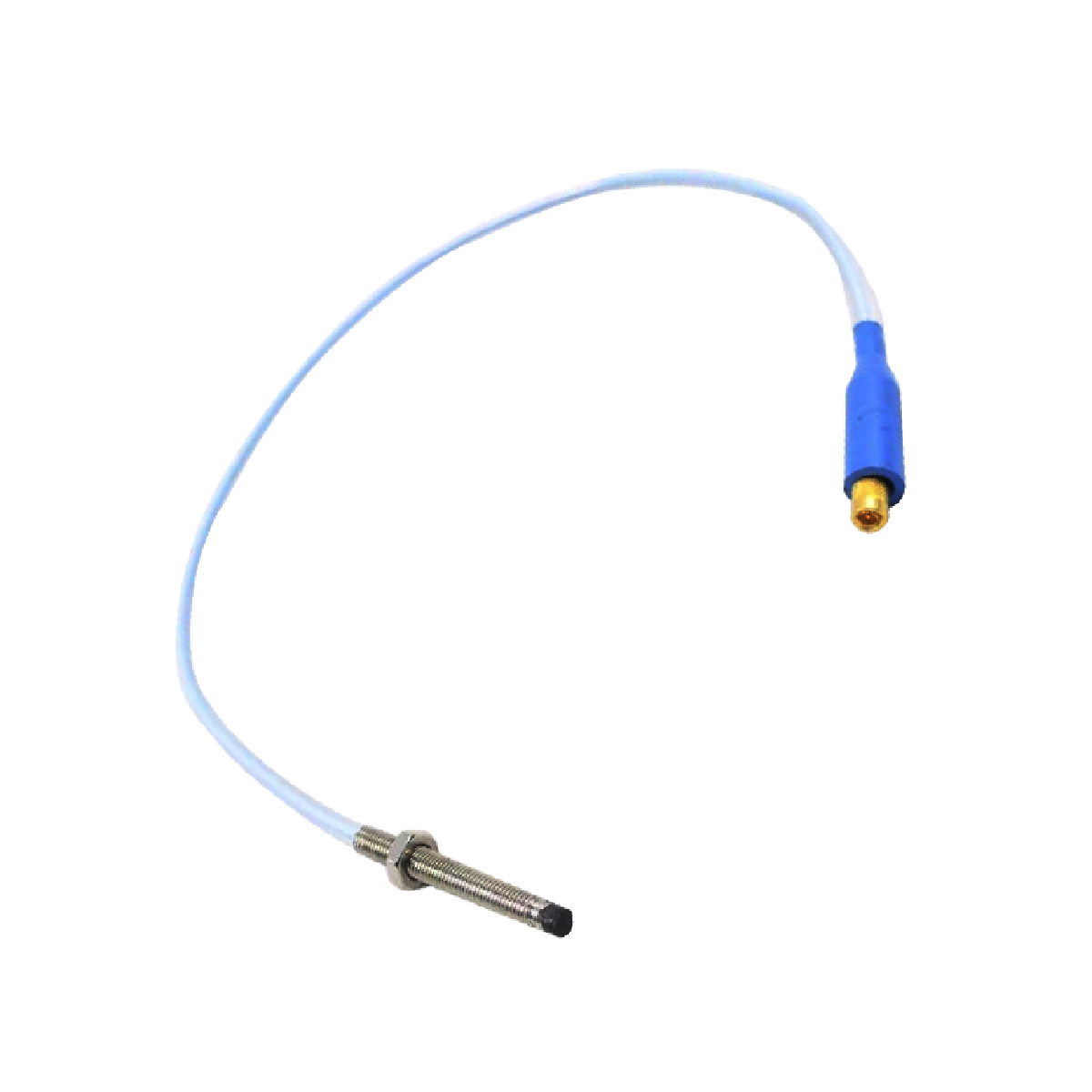

The Bently Nevada 330901-00-10-10-02-00 is a non-contacting 3300 NSv Proximity Probe engineered for critical machine protection in tight installation environments, such as centrifugal air compressors, refrigeration compressors, and process gas compressors. This proximity probe forms part of the 3300 XL NSv Proximity Transducer System and is specifically optimized for applications with counterbore restrictions, narrow side-view clearances, or small target profiles. Operating via the eddy current principle, it delivers precise measurements on fluid-filmed bearing machines where standard 5 mm or 8 mm probes are too large. It provides accurate tracking on shafts smaller than 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in), operating with an Average Scale Factor of 7.87 V/mm (200 mV/mil) across a 1.5 mm (60 mils) linear range.
Optimized Geometry: Specifically engineered for restricted counterbore, side-view, or rear-view deployments where standard industrial probes cannot maintain compliance.
Robust Cable Interconnect: Features a gold-plated brass ClickLoc miniature coaxial connector that locks mechanically into place to prevent field signal disruption.
Advanced Structural Integrity: Utilizes TipLoc molding to establish a high-strength bond between the probe tip and body, combined with a CableLoc design providing 220 N (50 lb) of pull strength.
Process Chemical Resistance: Upgraded polyphenylene sulfide (PPS) tip material offers chemical resilience for deployment inside harsh process compressor enclosures.
System Backwards Compatibility: Directly compatible and interchangeable with legacy Bently Nevada 3300 RAM proximity probes and extension cables.
Radial vibration and radial position monitoring on narrow high-speed compressor shafts.
Axial (thrust) position measurements on compact flat machine targets.
Industrial tachometer and zero speed monitoring systems.
Phase reference and Keyphasor signal synchronization under tight clearance limits.
| Specification Parameter | Technical Data / Value |
|---|---|
| Manufacturer | Bently Nevada (A Baker Hughes Company) |
| Product Number | 330901-00-10-10-02-00 |
| Probe Series / Type | 3300 NSv Proximity Probe (1/4-28 UNF thread, without armor) |
| Unthreaded Length Option | 0.0 in |
| Overall Case Length Option | 1.0 in |
| Total Length Option | 1.0 meter (39 in) |
| Connector and Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval Option | 00 (No Option / Not Required) |
| Average Scale Factor (ASF) | 7.87 V/mm (200 mV/mil) |
| Linear Range | 1.5 mm (60 mils), spanning from 0.25 to 1.75 mm (10 to 70 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| Probe DC Resistance (1.0m) | 4.2 ohms +/- 0.5 ohms (Center Conductor to Outer Conductor) |
| Cable Specification | 75 ohm coaxial, fluoroethylene propylene (FEP) insulated |
| Tip / Case Material | Polyphenylene sulfide (PPS) Tip / AISI 304 Stainless Steel Case |
| Maximum Rated Torque | 5.1 N-m (45 in-lb) |
| Operating Temperature Range | -52 Celsius to +177 Celsius (-62 Fahrenheit to +351 Fahrenheit) |
| Relative Humidity Range | 100% condensing, non-submersible when connectors are protected |
| Functional Safety Rating | SIL 2 (HFT = 0), SIL 3 (HFT = 1) |
| Country of Origin | U.S.A. |
| Net Probe Weight | Approximately 14 g to 150 g (0.5 oz to 5.3 oz) |
| Shipping Weight (Calculated) | 1.50 kg (3.31 lbs) |
| Package Dimensions (Calculated) | 25.0 cm x 20.0 cm x 5.0 cm |
Ensure the entire industrial monitoring machinery and adjacent diagnostic circuits are fully de-energized prior to structural mounting. Take rigorous field precautions against electrostatic discharge (ESD) during raw sensor handling. Keep mechanical connections free of turbine oil or corrosive chemicals to protect signal linearity.
Verify structural machine thread clearance for the 1/4-28 UNF-2A casing. Thread the probe carefully by hand into the pre-drilled or tapped housing hole to prevent cross-threading.
Adjust the exact mechanical probe gap setting to 1.0 mm (40 mils) relative to the AISI 4140 steel target surface to ensure peak incremental scale factor output.
Apply a precision mechanical torque wrench to tighten the standard 7/16-inch lock nut using the 7/32 wrench flats. Do not exceed the maximum rated torque limit of 5.1 N-m (45 in-lb).
Align and snap the miniature male ClickLoc coaxial connector firmly into the extension cable interface. Ensure a clean, secure mechanical engagement to protect against vibration-induced drift.
