6ES7647-6BE21-0BB0

Siemens

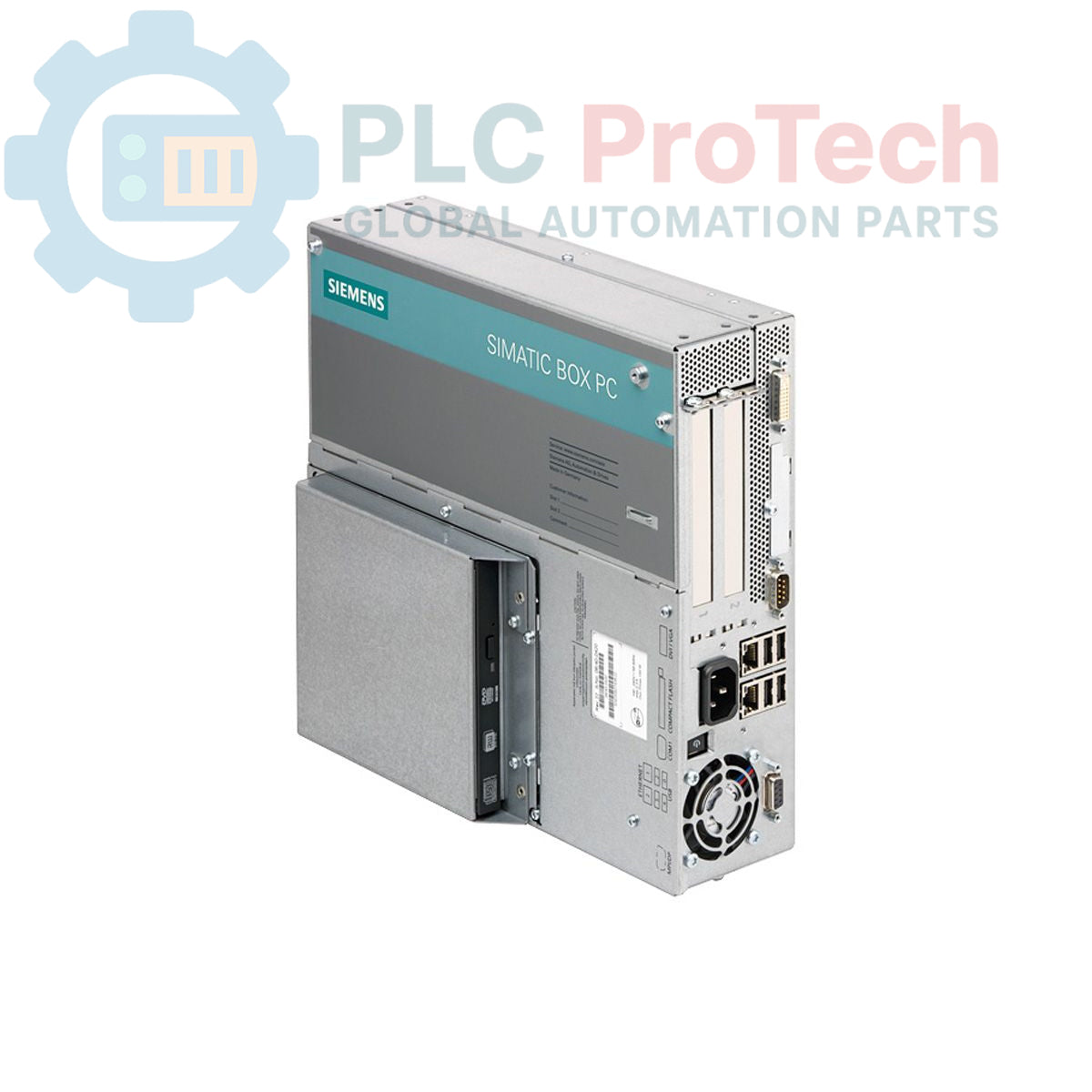

Siemens 6ES7647-6BE21-0BB0 SIMATIC Box PC 627B

SKU 6ES7647-6BE21-0BB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7647-6BE21-0BB0
  • Origin Germany
  • Product Type: PC Box
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 7.05 kg
  • Dimensions: 45.00 x 47.50 x 27.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

PC boxes
Quantità
Call sales Contact

Product Description

Description

The Siemens 6ES7647-6BE21-0BB0 SIMATIC Box PC 627B is an industrial PC designed for robust operation in automation environments. This model features an onboard Core 2 Duo T5500 processor, 1 GB of DDR2 RAM, and a 160 GB SATA HDD, making it suitable for various control and visualization tasks. It comes equipped with comprehensive connectivity options including Gigabit Ethernet, USB 2.0, and a serial port, alongside PROFIBUS/MPI for seamless integration into industrial networks. The unit also includes a RAID controller, watchdog functionality, and temperature/fan monitoring for enhanced reliability. Pre-installed with Windows XP Professional Multi-Language SP2, this Box PC provides a familiar operating environment for industrial applications.

Features

  • SIMATIC Box PC 627B series industrial computer
  • Integrated Core 2 Duo T5500 processor (1.66 GHz, 2 MB L2 Cache, 667 MHz FSB)
  • 1 GB DDR2 667 SODIMM system memory with 2 MB buffered RAM
  • Onboard graphics with 128 MB shared memory
  • Dual 10/100/1000 Mbit/s Ethernet RJ45 interfaces
  • Four USB V2.0 ports (high current support)
  • One serial (COM1) port
  • Integrated RAID controller
  • Front-side CompactFlash drive slot (without CF card)
  • Watchdog, temperature, and fan monitoring functions
  • PROFIBUS/MPI interface for industrial communication
  • 160 GB SATA Hard Disk Drive (HDD)
  • DVD +/-RW optical drive
  • Two free PCI expansion slots
  • AC 110/230V industrial power supply unit with NAMUR compliance
  • Pre-installed Windows XP Professional Multi-Language SP2 (DE, FR, EN, SP, IT)

Applications

  • Industrial control systems
  • Data acquisition and processing
  • Human Machine Interface (HMI) applications
  • Process visualization and monitoring
  • Distributed control systems (DCS)
  • Manufacturing execution systems (MES)
  • Machine automation and robotics

Technical Specifications

Attribute Value
General
Manufacturer Siemens
Brand Siemens
Range SIMATIC Box PC
Subrange PC627B
Type of Product PC Box
Product Phase Obsolete
Hardware
Processor Intel Core 2 Duo T5500 (1.66 GHz)
CPU Cache 2 MB L2 Cache
Front Side Bus (FSB) 667 MHz
System Memory (RAM) 1 GB DDR2 667 SODIMM
Buffered RAM 2 MB
Graphics Onboard, 128 MB Shared Memory
Storage 160 GB SATA HDD
Optical Drive DVD +/-RW
CompactFlash Slot 1x Front-side (without CF)
Expansion Slots 2x PCI (free)
Monitoring Watchdog, Temperature/Fan Monitoring
RAID Controller Onboard
Interfaces
Ethernet 2x 10/100/1000 Mbit/s Ethernet (RJ45)
USB Ports 4x USB V2.0 (High Current)
Serial Port 1x Serial (COM1)
Fieldbus PROFIBUS/MPI
Electrical
Input Voltage AC 110/230V
Power Supply Type Industrial Power Supply Unit with NAMUR
Power Supply Cable UK Type
Software
Operating System Windows XP Professional Multi-Language SP2 (German, French, English, Spanish, Italian)
Pre-installed Software Without expansion (software)
Logistics
Weight 7.05 kg
Shipping Weight (Calculated) 7.05 kg
Package Dimensions (Calculated) 45.00 x 47.50 x 27.00 cm
Commodity Code 85371091
Export Control Regulations (ECCN) N

Connections / Interfaces

  • Ethernet: 2x RJ45 ports for 10/100/1000 Mbit/s connectivity
  • USB: 4x USB V2.0 ports (high current capable)
  • Serial: 1x COM1 port
  • Fieldbus: PROFIBUS/MPI interface
  • Expansion: 2x PCI slots for additional cards
  • Storage: CompactFlash drive slot (front-side)

Installation Guidelines

The Siemens SIMATIC Box PC 627B is designed for industrial environments. Ensure proper ventilation and adherence to mounting instructions provided in the product manual to maintain optimal operating temperatures. Connect the industrial power supply unit to a stable AC 110/230V source. Utilize appropriate cabling for Ethernet, USB, and serial connections. For PROFIBUS/MPI, follow standard industrial network cabling practices. Always power down the unit before installing or removing expansion cards or storage devices.

Compliance and Certifications

This product is compliant with relevant industrial standards for its specified operating environment. Specific certifications are typically detailed in the product's official documentation. The power supply unit is NAMUR compliant, indicating suitability for process control applications.

Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What operating system is pre-installed on the Siemens 6ES7647-6BE21-0BB0?
The Siemens 6ES7647-6BE21-0BB0 SIMATIC Box PC 627B comes with Windows XP Professional Multi-Language SP2 pre-installed, supporting German, French, English, Spanish, and Italian.
What type of processor does the SIMATIC Box PC 627B 6ES7647-6BE21-0BB0 use?
This industrial PC is equipped with an Intel Core 2 Duo T5500 processor, running at 1.66 GHz, with 2 MB of L2 Cache and a 667 MHz Front Side Bus (FSB).
What are the connectivity options for the 6ES7647-6BE21-0BB0?
The unit features 2x 10/100/1000 Mbit/s Ethernet RJ45 ports, 4x USB V2.0 ports (high current), 1x serial (COM1) port, and a PROFIBUS/MPI interface for industrial communication.
Does the 6ES7647-6BE21-0BB0 support expansion cards?
Yes, the Siemens SIMATIC Box PC 627B includes two free PCI expansion slots, allowing for the addition of compatible industrial I/O or communication cards.
What is the storage capacity and memory configuration of this Box PC?
The 6ES7647-6BE21-0BB0 comes with a 160 GB SATA Hard Disk Drive (HDD) and 1 GB of DDR2 667 SODIMM system memory, complemented by 2 MB of buffered RAM.
