Description

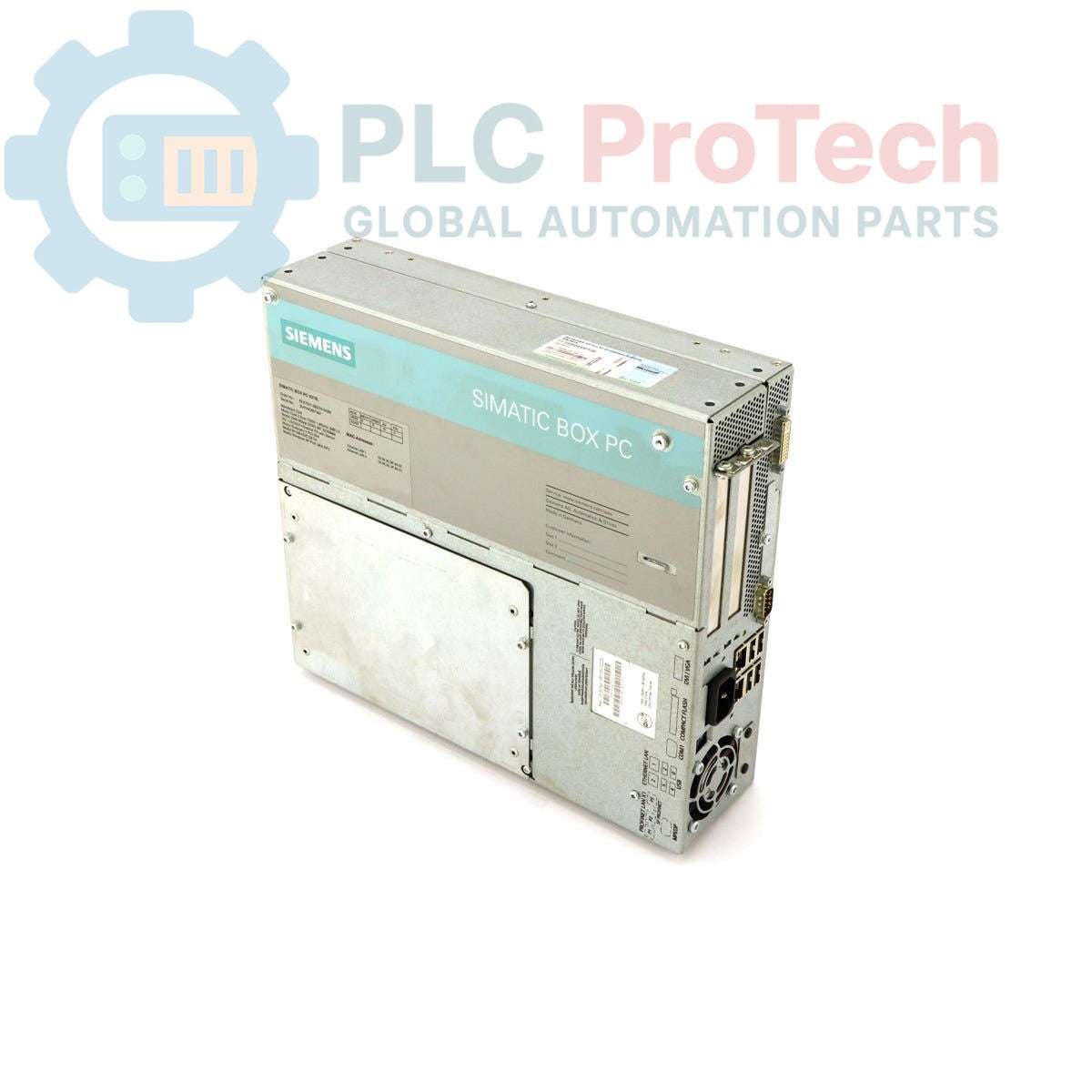

The Siemens 6ES7647-6BD30-0BA0 is a SIMATIC Box PC 627B, an industrial personal computer designed for robust operation in automation environments. This unit features onboard graphics with 128 MB of shared memory, dual 10/100/1000 Mbit/s Ethernet RJ45 ports, and four high-current USB V2.0 interfaces. It includes a serial COM1 port and an onboard RAID controller for data integrity. Storage options comprise a front-side CompactFlash drive slot (CF card not included) and a 160 GB SATA hard disk drive, complemented by a DVD +/-RW drive. The system is powered by an Intel Core 2 Duo T5500 processor (1.66 GHz, 2 MB L2 cache, 667 MHz FSB) and equipped with 2 GB DDR2 667 SODIMM RAM. It operates with an AC 110/230V industrial power supply unit with NAMUR support and comes with a Europe power supply cable. The PC also features watchdog, temperature, and fan monitoring, and includes two free PCI expansion slots. It is pre-installed with Windows 2000 Professional Multi-Language SP4.

Features

• Onboard Graphics with 128 MB shared memory
• Dual 10/100/1000 Mbit/s Ethernet (RJ45)
• Four USB V2.0 ports (high current)
• One serial COM1 port
• Integrated RAID controller
• Front-side CompactFlash drive slot (CF not included)
• Watchdog and temperature/fan monitoring
• Intel Core 2 Duo T5500 processor (1.66 GHz, 2 MB L2, 667 MHz FSB)
• 2 GB DDR2 667 SODIMM RAM
• AC 110/230V industrial power supply with NAMUR support
• Two free PCI expansion slots
• 160 GB SATA HDD and DVD +/-RW drive
• Pre-installed Windows 2000 Professional Multi-Language SP4

Applications

The Siemens SIMATIC Box PC 627B is suitable for a wide range of industrial applications, including:

• Human Machine Interface (HMI) systems
• Data acquisition and processing
• Control system integration
• Manufacturing execution systems (MES)
• Industrial visualization and monitoring
• Edge computing in production environments

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work. Verify with appropriate lockout/tagout procedures.
2. Mounting: Securely mount the SIMATIC Box PC 627B in a suitable industrial enclosure or control cabinet. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the AC 110/230V industrial power supply unit to a stable power source using the provided Europe power supply cable. Ensure proper grounding.
4. Grounding: Connect the device to the protective earth (PE) ground terminal of the control cabinet to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication. Use shielded cables in environments with high electromagnetic interference.
6. Peripheral Connections: Connect USB devices, serial devices, and any other peripherals to their respective ports.
7. Expansion Cards: If utilizing the PCI expansion slots, carefully insert and secure the expansion cards according to their respective documentation.
8. Cooling: Ensure that the cooling fins and fan openings are not obstructed to allow for proper heat dissipation and maintain optimal operating temperature.
9. Power On: After all connections are secure and verified, restore power to the system.
