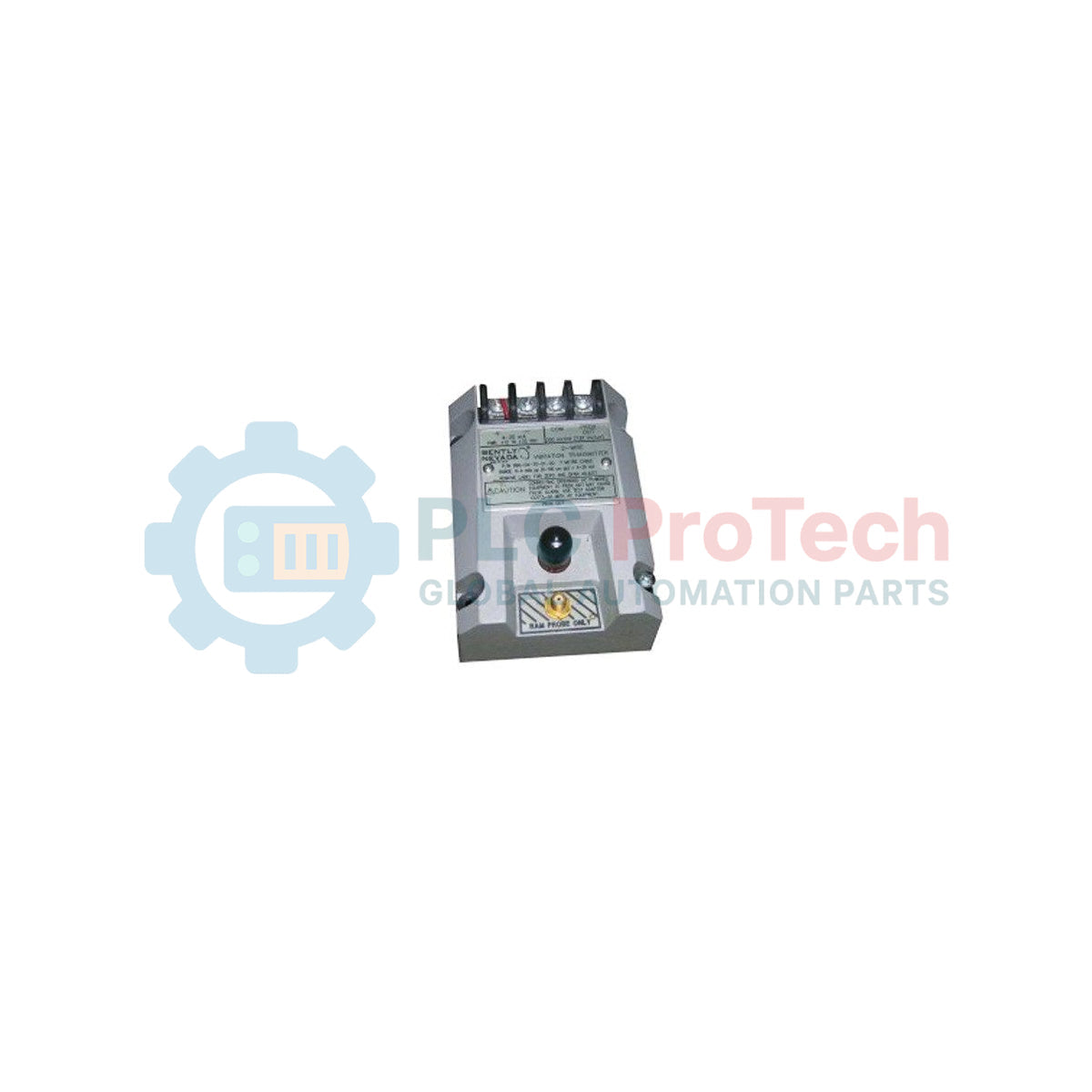

The 990 Vibration Transmitter is a loop-powered, two-wire vibration measurement device designed for direct integration with machinery protection or condition monitoring systems in rotating equipment applications such as compressors, pumps, motors, and fans. It converts radial vibration sensed by a 3300 NSv proximity probe system into a proportional 4–20 mA signal representing peak-to-peak vibration amplitude, enabling continuous monitoring at the control system level.
This transmitter is typically applied where simplified vibration indication is required without full diagnostic vibration analysis capability. It incorporates an internal Proximitor-style signal conditioning stage, eliminating the need for an external driver module.
The 990-05-50-01-CN configuration defines a 0–5 mils peak-to-peak measurement range, a 5.0 meter system length, DIN rail mounting hardware, and region-specific approval marking for installation in regulated environments.
A secondary diagnostic output is available via PROX OUT interface, allowing access to raw vibration signal for troubleshooting using compatible test equipment with proper isolation.
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Product Type | 2-Wire Vibration Transmitter |
| Model | 990-05-50-01-CN |
| Input | 3300 NSv proximity probe system |
| Output Signal | 4–20 mA proportional vibration |
| Measurement Range | 0–5 mils pp (0–100 µm pp) |
| System Length | 5.0 m (16.4 ft) |
| Power Supply | +12 to +35 Vdc |
| Loop Resistance | Up to 1000 ohm (including cable) |
| Frequency Response | 5 Hz to 6000 Hz |
| Operating Temperature | -35 C to +85 C |
| Storage Temperature | -52 C to +100 C |
| Relative Humidity | 100% condensing (non-submerged) |
| Transmitter Weight | 0.43 kg |
| Total System Weight | 0.82 kg |
| Housing Material | Potted industrial enclosure |
| Probe Case Material | AISI 303 / 304 stainless steel |
| Probe Cable | 75 ohm FEP insulated coaxial |
| Tensile Strength | 222 N (50 lbf) |
| Minimum Target Size | 9.5 mm diameter |
| Connector / Terminal | Function |
|---|---|
| PROX OUT | Raw vibration signal output (diagnostic use) |
| COM | Common reference |
| Loop + | 4–20 mA loop power input/output |
| Test Input | Signal verification input |
Install the transmitter on a stable panel or DIN rail with minimal mechanical vibration influence. Maintain correct probe gap between 0.5 mm and 1.75 mm to ensure linear operation. Use shielded coaxial cable routing for probe signal integrity. Avoid running probe cables parallel to high-voltage power lines to reduce EMI coupling.
For PROX OUT diagnostic usage, apply proper signal isolation when connecting to grounded test instruments. Ensure enclosure sealing is maintained in high humidity environments.
Is this transmitter suitable for vibration diagnostics?
It is designed for basic vibration monitoring and trending, not full diagnostic analysis.
Does it require an external signal conditioner?
No, the signal conditioning is integrated inside the transmitter.
What probe type is supported?
It is designed for use with the 3300 NSv proximity probe system.
Can PROX OUT be used directly on oscilloscope?
Yes, but isolation is recommended when using grounded test equipment.
What happens during probe failure?
The output enters NOT OK condition and drops below 3.6 mA to indicate fault.
Is this suitable for critical turbine monitoring?
No, it is intended for non-critical or auxiliary machinery applications.
