BECKHOFF

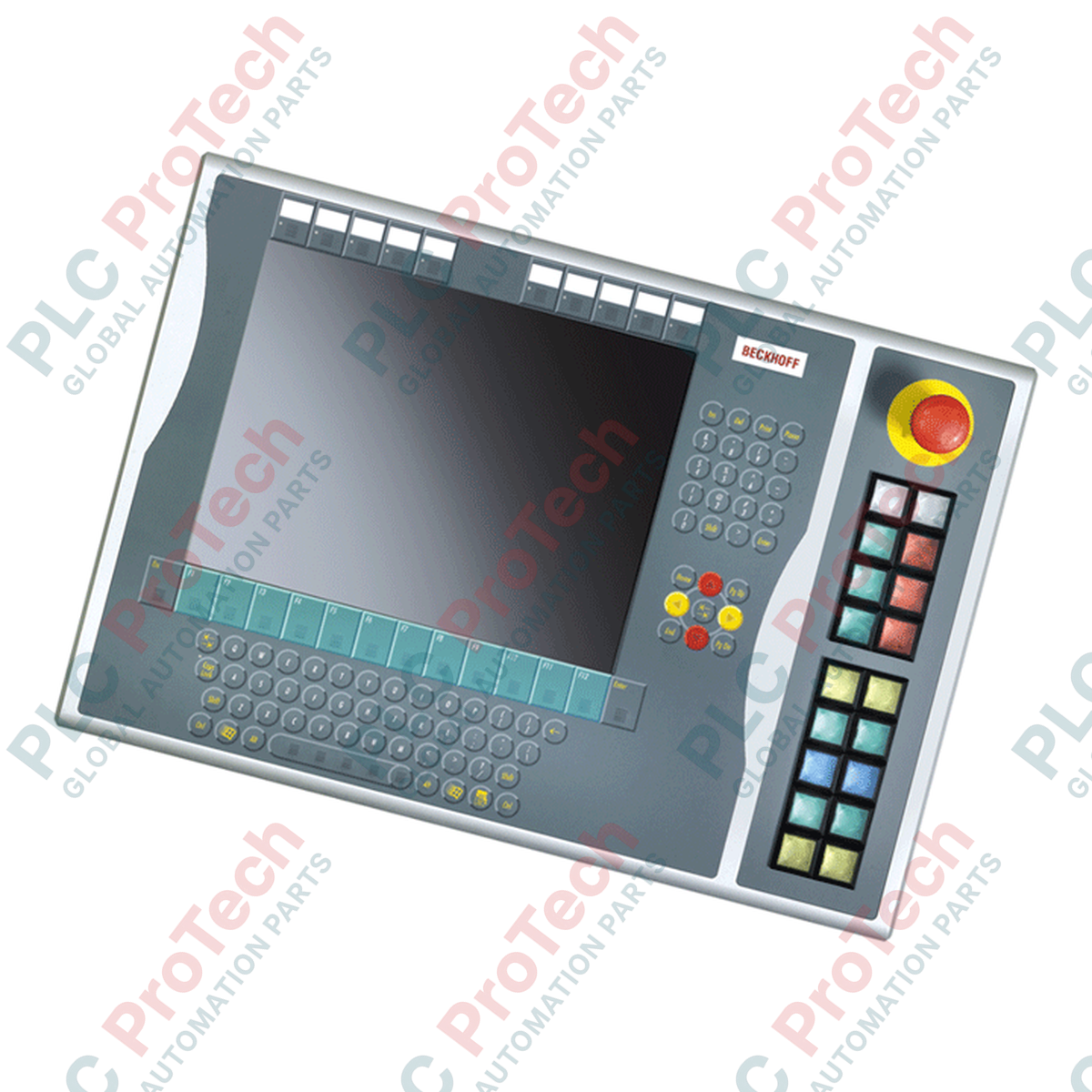

Beckhoff C9900-E675 CP6xxx/CP7xxx Push-Button Extension Module

SKU C9900-E675

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: C9900-E675
  • Origin Germany
  • Product Type: HMI Push-Button Extensions
  • Payment: T/T, Western Union
  • Weight: 0.5 kg
  • Dimensions: drawings with dimensions of the push-button e x tensions as AutoCAD DXF file
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Description

Designed to expand the manual operator control interface of modern industrial workstations, the Beckhoff C9900-E675 provides physical command execution directly adjacent to CP6xxx and CP7xxx control panels. This robust hardware extension is specifically sized and engineered to mount on the right side of control systems utilizing a 15-inch display paired with an alphanumeric keyboard layout, including the CP6x32-00xx and CP7x32-00xx series. Operating in its service phase, this module ensures reliable physical input channels to supplement touchscreen and keyboard operations in demanding industrial environments.

Features

  • Right-Side Panel Integration: Directly mounts and aligns with the right-side profile of 15-inch Beckhoff Control Panels and Panel PCs.
  • Industrial Actuators: Equipped with 18 square (30 x 30 mm) Siemens Signum push-button keys integrated with individual signal lamps.
  • Dedicated Safety Path: Includes 1 heavy-duty Siemens Signum emergency stop button designed for direct, hardwired connection to safety control systems.
  • Custom Labeling Options: Push-button caps are designed to accept custom labeling inserts for clear, site-specific function identification.
  • Dual-Channel Transmission Schema: Primary control transmission is processed via CP-Link or USB (normally-open contact mapping), while a secondary terminal row allows direct hardwired execution of a second normally-open contact.
  • Monitored Signal Lamps: All integrated status lamps are driven via the digital CP-Link or USB interface.

Applications

  • Heavy CNC & Machining Centers: Provides immediate tactile overrides for axis manipulation, spindle control, and coolant commands.
  • Automated Production Lines: Enables localized, high-reliability manual operation next to visual HMI screens.
  • Safety-Critical Cells: Separates standard operator control pathways from direct safety wiring (such as emergency stop circuits).

Technical Specifications Table

Parameter Specification
Manufacturer Beckhoff Automation
Model Number C9900-E675
Compatibility CP6x32-00xx and CP7x32-00xx (15-inch display models with alphanumeric keyboard)
Push-Button Configuration 18x Push-buttons with feedback signal lamps
Emergency Stop 1x Siemens Signum Emergency Stop (directly wireable)
Button Mechanical Size 30 x 30 mm (Square)
Transmission Interfaces CP-Link or USB, plus independent hardwired terminal row
Signal Lamp Control CP-Link / USB only
Contact Configuration Dual Normally-Open (N.O.) contacts per push-button
Lifecycle Phase Service Phase (Legacy support and spare parts availability)
Country of Origin Germany
Shipping Weight (Calculated) 5.0 kg

Connections and Interfaces

Connection Point Function / Circuit Assignment
CP-Link / USB Interface Data transmission path for Primary Contact (1st N.O.) and power/signal commands for all integrated status lamps.
Terminal Row (Internal) Direct copper termination for Secondary Contact (2nd N.O.) per button, bypassing active USB/CP-Link electronics.
Emergency Stop Terminals Isolated, direct-wired terminal connection dedicated to safety relay loop insertion.

Empirical Engineering Insights

Alternative Models & Compatibility

Because this extension module is in its service phase, physical replacements must precisely match the host panel display size. The C9900-E675 is specifically dimensioned for 15-inch displays with alphanumeric keyboards. Swapping with modules designed for alternative display sizes (e.g., 12-inch or 19-inch variants) will result in physical mounting misalignment and mechanical stress on the housing seals.

Application Pitfalls & Engineering Notes

While standard button closures are communicated efficiently via CP-Link or USB, communication latency can occur under heavy PLC bus loading or operating system interrupts. Consequently, critical interlocks, active machine movement overrides, and safety circuits must utilize the secondary, direct-wired terminal row rather than relying solely on the USB/CP-Link data path.

Commissioning & Wiring Tips

During initial installation, ensure that the internal cabling for the direct-wired terminal block is routed with sufficient slack to prevent strain when opening or servicing the control panel assembly. Use shielded, twisted-pair cabling for all direct-wired signals to maintain high electromagnetic compatibility (EMC) in high-noise environments near variable frequency drives.

Installation Guidelines

CRITICAL WARNING: Isolate and de-energize all power sources feeding the Control Panel and the associated control cabinet before initiating physical installation. Confirm that all residual electrical charge has completely dissipated. Failure to follow proper lock-out/tag-out (LOTO) procedures can result in severe equipment damage or electrical shock.
1

Align the C9900-E675 housing with the mounting channels located on the right side of the CP6x32 or CP7x32 Control Panel.

2

Secure the mechanical connection using the provided fastening screws, ensuring a flush fit to maintain the ingress protection rating of the assembly.

3

Route and connect the internal USB or CP-Link connector to the matching header on the mainboard of the Control Panel.

4

Terminate the hardwired emergency stop safety loop and auxiliary terminal row connections back to the corresponding safety PLC or terminal block distribution inside the main control cabinet.

5

Reapply power, perform local signal loop checks on all 18 buttons and lamps, and execute a functional safety test of the emergency stop circuit before putting the system into active operation.

Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What host panel series are compatible with the C9900-E675 extension?
This module is designed exclusively for Beckhoff CP6x32-00xx and CP7x32-00xx Panel PCs and Control Panels with 15-inch displays and alphanumeric keyboards.
Does the emergency stop button communicate via the digital USB or CP-Link interface?
No. For compliance with functional safety regulations, the Siemens Signum emergency stop button must be directly wired to an external safety controller or monitoring relay via its hardwired terminals.
How are the dual contacts of the 18 push-buttons configured?
Each button features two normally-open (N.O.) contacts. The first contact is transmitted digitally over the USB or CP-Link interface. The second contact is routed directly to an integrated terminal row for hardwired I/O integration.
Are the signal lamps controlled through local terminal wiring?
No. The integrated signal lamps are driven and controlled exclusively via the USB or CP-Link data transmission path.
