BECKHOFF C9900-E858 CP6xxx/CP7xxx Series Push-Button Extension

Name: BECKHOFF C9900-E858 CP6xxx/CP7xxx Series Push-Button Extension
Brand: BECKHOFF
SKU: C9900-E858

SKU C9900-E858

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: C9900-E858
Origin Germany
Product Type: Push-Button Extensions
Payment: T/T, Western Union
Weight: 5.0 kg
Dimensions: drawings with dimensions of the push-button e x tensions as AutoCAD DXF file
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

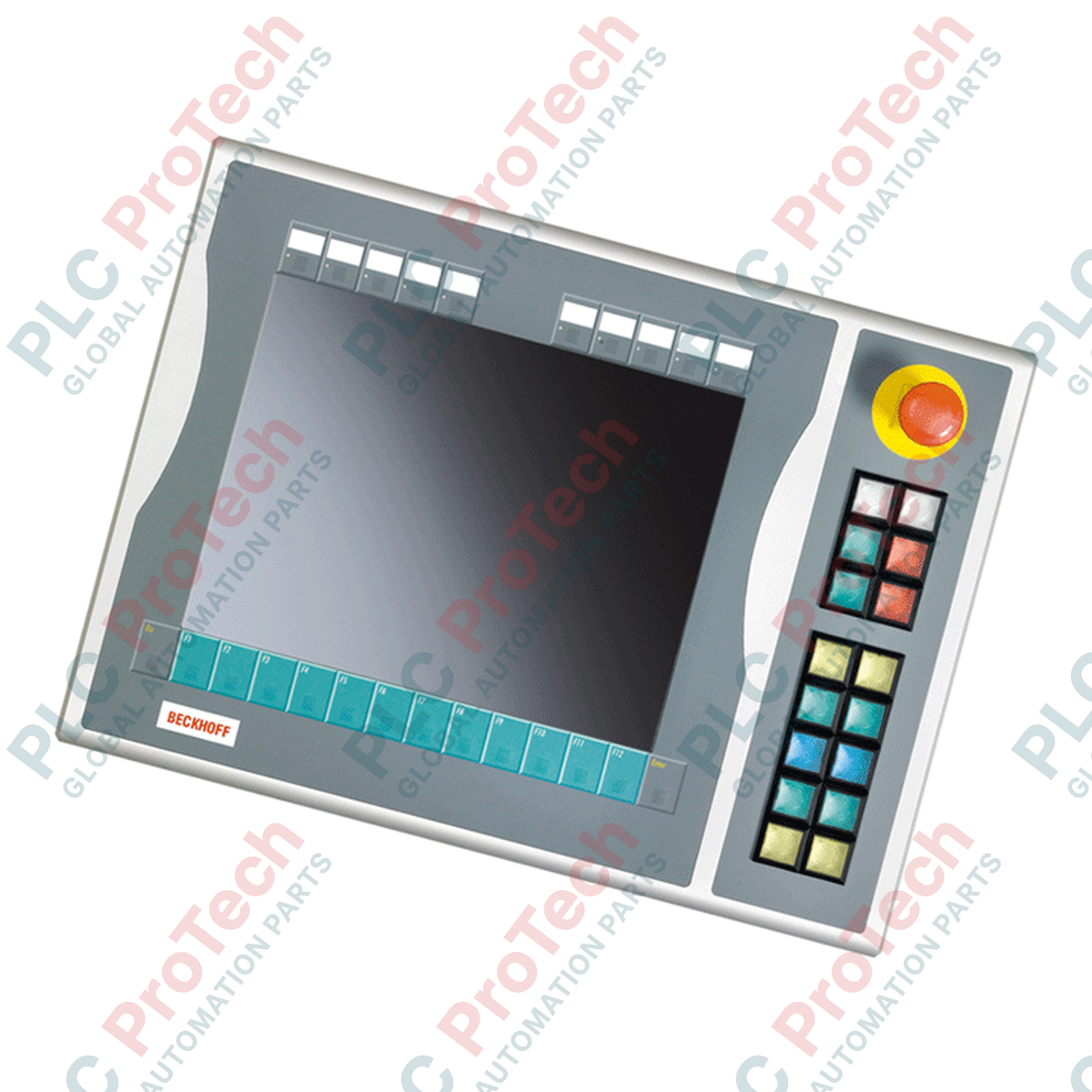

Designed to expand the manual control capabilities of 15-inch display industrial panels, the Beckhoff C9900-E858 provides a robust, right-side mounted physical interface extension. This push-button module is engineered specifically for CP6x12-00xx and CP7x12-00xx Control Panels and Panel PCs operating without integrated keyboards.

This extension integrates sixteen square Siemens Signum (30 x 30 mm) push-buttons, each equipped with an integrated signal lamp, alongside a dedicated, directly wireable Siemens Signum emergency stop button. Electrical configuration features dual-channel flexibility: all main push-buttons communicate primary states via CP-Link or USB using a normally-open (NO) contact, while a terminal row enables direct wiring of a secondary normally-open contact for hardwired safety or control integration. The integrated signal lamps are driven exclusively through the CP-Link or USB communication interface.

Features

Right-side mounting configuration specifically designed for 15-inch display panels.
Equipped with 16 square Siemens Signum push-buttons (30 x 30 mm) featuring built-in status indicator lamps.
Includes 1 Siemens Signum emergency stop key designed for direct, hardwired safety integration.
Dual-path communication system: primary signaling over CP-Link or USB interface, and secondary signaling via a direct-wire terminal row.
Customizable insert labels on push-button caps to allow individual, application-specific marking.
Signal lamp control managed dynamically through CP-Link or USB communication protocols.

Applications

Industrial machinery human-machine interface (HMI) integration.
Heavy industrial automation control desks and panels.
Process manufacturing production lines.
Safety systems requiring physical emergency stop control alongside digital panel interaction.

Technical Specifications

ParameterValue

Manufacturer	BECKHOFF
Part Number/Model	C9900-E858
Compatibility	CP6x12-00xx and CP7x12-00xx (15-inch display without keyboard)
Mounting Location	Right side of Control Panel / Panel PC
Push-Buttons	16 x Siemens Signum square (30 x 30 mm) with integrated signal lamps
Emergency Stop	1 x Siemens Signum emergency stop key, directly wireable
Primary Button Contact	1 x normally-open (NO) contact via CP-Link / USB
Secondary Button Contact	1 x normally-open (NO) contact via hardwired terminal row
Signal Lamp Control	Exclusively via CP-Link or USB
Approximate Shipping Weight	5.0 kg

Connections and Interfaces

Connector Pin / PortFunction

CP-Link / USB	Primary push-button status communication and signal lamp drive power
Terminal Row	Direct connection points for secondary normally-open (NO) push-button contacts
E-Stop Terminals	Direct wiring contacts for hardwired emergency stop integration

Installation Guidelines

Mounting: Ensure the host Control Panel or Panel PC is fully powered off before attaching the extension module. Mount securely to the right-hand chassis mounting points according to standard dimensional specifications.
Wiring: Route physical auxiliary cabling for the emergency stop switch and terminal rows separate from high-power AC lines to minimize electromagnetic interference.
Grounding: Maintain chassis-to-panel ground continuity to prevent communication faults over the CP-Link or USB interface.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Which specific Beckhoff panels are compatible with the C9900-E858 extension?

The C9900-E858 is compatible with Beckhoff CP6x12-00xx and CP7x12-00xx Control Panels and Panel PCs featuring a 15-inch display without an integrated keyboard.

Can the signal lamps on the push-buttons be wired directly to terminals?

No. The signal lamps on the 16 push-buttons are transmitted and controlled exclusively via the CP-Link or USB interface.

Does the C9900-E858 support direct hardwired safety connections?

Yes. The Siemens Signum emergency stop button is directly wireable, and all 16 push-buttons have a secondary normally-open (NO) contact that can be directly wired through a terminal row.
