BECKHOFF CP3916-1414-0010 Stainless Steel Multi-Touch Control Panel

SKU CP3916-1414-0010

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CP3916-1414-0010
Origin Germany
Product Type: Industrial Control Panels
Payment: T/T, Western Union
Weight: 0.5 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

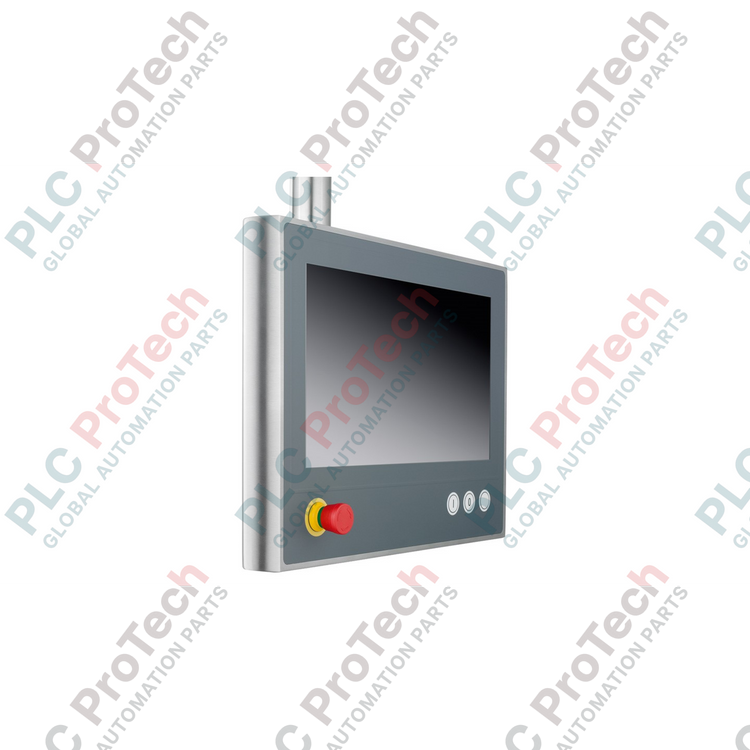

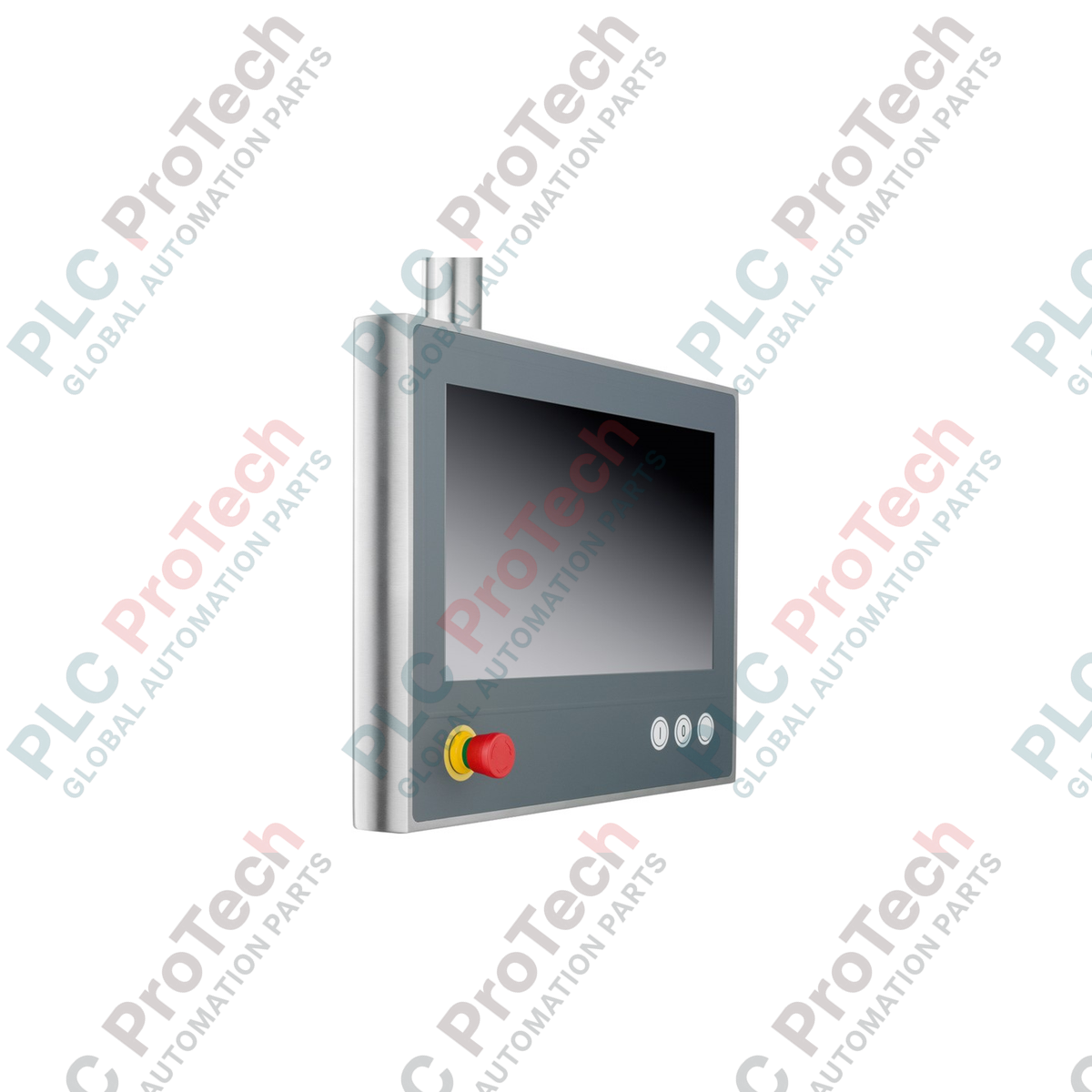

The BECKHOFF CP3916-1414-0010 is a stainless steel multi-touch Control Panel featuring the CP-Link 4 – The One Cable Display Link interface. Designed for demanding industrial environments, this robust operator interface combines a high-quality glass touch screen with a sealed stainless steel housing to deliver reliable visualization and control capabilities.

Equipped with an integrated CP-Link 4 connection, the Control Panel links to an Industrial PC over distances of up to 100 meters utilizing a single Cat.6A cable. This connection technology transmits DVI video signals and USB 2.0 data simultaneously while supporting flexible power supply options depending on the chosen transmitter module.

Features

Stainless steel housing constructed from material 1.4301 with a continuous glass front
Multi-finger touch screen with flush lamination and integrated splinter protection
CP-Link 4 interface transmits DVI and USB 2.0 data over a distance of up to 100 m using a Cat.6A cable
Push-button extension featuring three illuminated short-stroke buttons with RGBW LED ring lighting and exchangeable slide-in labels
Integrated emergency stop key connected via a 4-pin round connector with dual normally-closed contacts
IP65 protection rating for reliable operation in harsh industrial environments

Applications

Machine tool automation and plant visualization
Food processing, pharmaceutical, and cleanroom applications requiring washdown-resistant stainless steel housings
Remote operator control stations connected via CP-Link 4 infrastructure

Technical Specifications

General

Parameter	Specification
Manufacturer	BECKHOFF
Exact Model	CP3916-1414-0010
Device Type	Multi-touch Control Panel with CP-Link 4
Housing Material	Stainless steel 1.4301 with glass front
Protection Rating	IP65
Country of Origin	Germany

Display and Touch Screen

Parameter	Specification
Touch Screen	Multi-finger touch screen, flush laminated, splinter protection

Interfaces and Connection

Parameter	Specification
Connection Technology	CP-Link 4 (DVI and USB 2.0 transmission via Cat.6A cable up to 100 m)
Interfaces	2 x M12 round connectors (IP65) for CP-Link 4 and optional 24 V power supply; 1 x USB A socket with IP65 screw-on cap

Control Elements and Options

Parameter	Specification
Push Button Extension	3 x illuminated short-stroke buttons (round, 19 mm, RGBW LED ring lighting, USB connected, 2 labeled I and 0 with exchangeable slide-in labels), 1 x emergency stop key (RAFI RAFIX 22FS+, 2 NC contacts, 4-pin round connector)

Mechanical and Environmental

Parameter	Specification
Operating Temperature Range	0 to 45 degC
Mounting	6 x M5 threaded holes for mounting arm adapter

Installation Guidelines

Ensure the installation location meets the operating temperature limits of 0 to 45 degC and maintains IP65 environmental sealing.
De-energize the system and associated power supplies before beginning mechanical or electrical installation.
Mount the Control Panel securely using the 6 M5 threaded holes provided for the mounting arm adapter.
Connect the Cat.6A cable from the CP-Link 4 transmitter module to the M12 round connector on the panel, ensuring proper sealing against moisture and dust.
Connect the 24 V DC power supply wiring according to the selected transmitter module configuration.
Verify all M12 screw connections and the USB protective cap are tightly secured before restoring power and commissioning the system.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the BECKHOFF CP3916-1414-0010 and how does it connect to a host system?

The BECKHOFF CP3916-1414-0010 is a stainless steel multi-touch control panel designed for demanding industrial automation environments. It features the CP-Link 4 One Cable Display Link interface, which transmits both DVI video signals and USB 2.0 data over distances up to 100 meters using a single Cat.6A cable. This single-cable architecture significantly simplifies wiring and reduces installation complexity in distributed control layouts.

What are the environmental protection ratings and housing materials of this control panel?

The BECKHOFF CP3916-1414-0010 is constructed with a rugged housing made of 1.4301 stainless steel paired with a continuous, flush-laminated glass front that includes integrated splinter protection. It carries an IP65 protection rating, making it completely dust-tight and resistant to low-pressure water jets from any direction. These specifications make the unit exceptionally well-suited for washdown-resistant applications in food processing, pharmaceutical, and cleanroom environments.

What built-in control elements and safety features are included on the unit?

The BECKHOFF CP3916-1414-0010 features an integrated push-button extension that includes three illuminated short-stroke buttons with customizable RGBW LED ring lighting and exchangeable slide-in labels. Additionally, it incorporates a safety emergency stop key utilizing a RAFI RAFIX 22FS+ mechanism with dual normally-closed contacts connected via a 4-pin round connector. This combination of multi-finger touch operation, functional push buttons, and a hardwired emergency stop ensures both efficient visualization and high-level operator safety.

What are the power and interface connection specifications for the panel?

The BECKHOFF CP3916-1414-0010 utilizes two IP65-rated M12 round connectors on the rear to handle the CP-Link 4 data stream and the optional 24V DC power supply feed. It also features a single USB A socket equipped with an IP65 screw-on protective cap for secure external peripheral connection. Operating temperature limits for the device range strictly from 0 to 45 degrees Celsius to guarantee reliable thermal performance within sealed mounting arms.
