Description

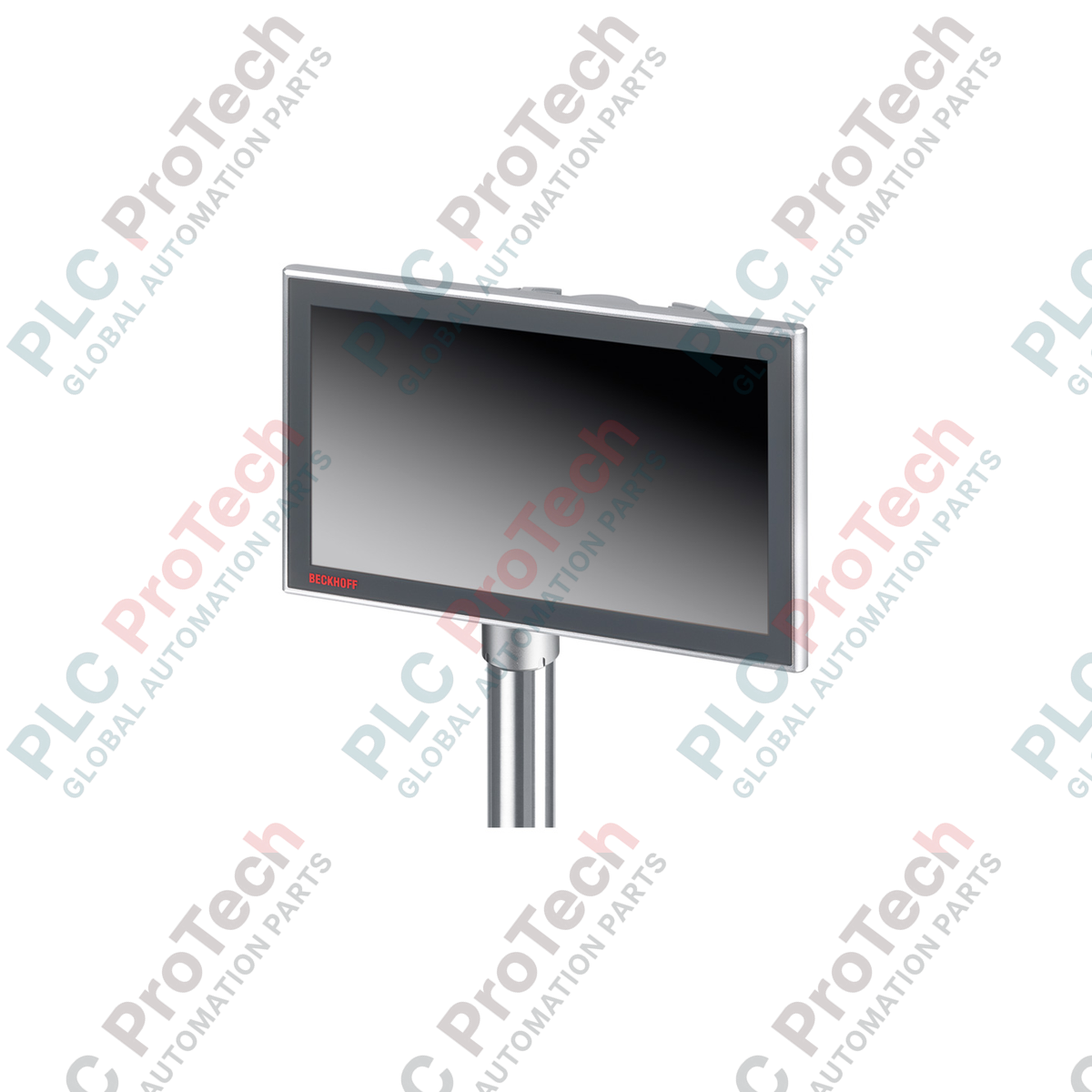

Designed for space-saving control cabinet installation, the BECKHOFF CP6201-0021-0070 functions as a highly integrated, industrial-grade built-in Panel PC. This unit combines robust computing power with a high-contrast 12-inch TFT display, providing a reliable operator interface and control platform for demanding manufacturing applications. Featuring an aluminum front bezel and a rugged sheet-steel rear cover, it is engineered to withstand harsh factory floors while maintaining a sleek, flush-mounted profile.

The system is equipped with an Intel Celeron G3900TE processor operating at 2.3 GHz and houses a 3.5-inch motherboard with DDR4 RAM architecture, ensuring efficient processing of PLC and visualization tasks. Outfitted with versatile connection options, including dual Gigabit Ethernet ports and multiple USB 3.0 interfaces, the CP6201-0021-0070 integrates into standard industrial networks and easily connects with decentralized I/O systems and field devices.

Features

• Bright 12-inch active matrix TFT display with a clear 800 x 600 pixel resolution.
• Robust housing design featuring an IP65-rated aluminum front panel and an IP20-rated sheet-steel rear cover.
• Efficient installation process utilizing integrated pull-out clamping levers for quick cabinet mounting without loose parts.
• Dual on-board 100/1000BASE-T Ethernet ports for redundant network architectures and seamless communication.
• Flexible memory configuration with DDR4 RAM support up to 32 GB.
• Dedicated storage slots supporting both 2.5-inch SATA hard drives/SSDs and CFast cards.
• Comprehensive interface suite including 4x USB 3.0 ports, 1x RS232 serial port, and 1x DVI-D port.

Applications

• Machine tool visualization and control.
• Automotive assembly line monitoring.
• Process control and SCADA interface terminals in water treatment and energy sectors.
• Packaging machine automation and human-machine interface (HMI) coordination.

Technical Specifications

Installation Guidelines

For safe installation and long-term operating reliability, adhere to the following setup parameters:

• Mounting: Insert the device into the prepared control cabinet cutout. Secure the unit in place using the integrated pull-out clamping levers. Ensure the seal on the front bezel lies completely flat against the cabinet door to guarantee IP65 protection.
• Cooling and Ventilation: To prevent overheating, ensure there is adequate free space around the rear ventilation openings. Maintain an ambient operating environment between 0 and 55 degC.
• Power & Grounding: Connect the device to a regulated 24 V DC power supply. Connect a functional earth ground cable with a low-impedance path to the ground terminal on the chassis to minimize electromagnetic interference (EMI).
• Cabling: Keep signal cables (Ethernet, serial communication) separate from high-power load lines to protect against signal degradation and electrical noise.
