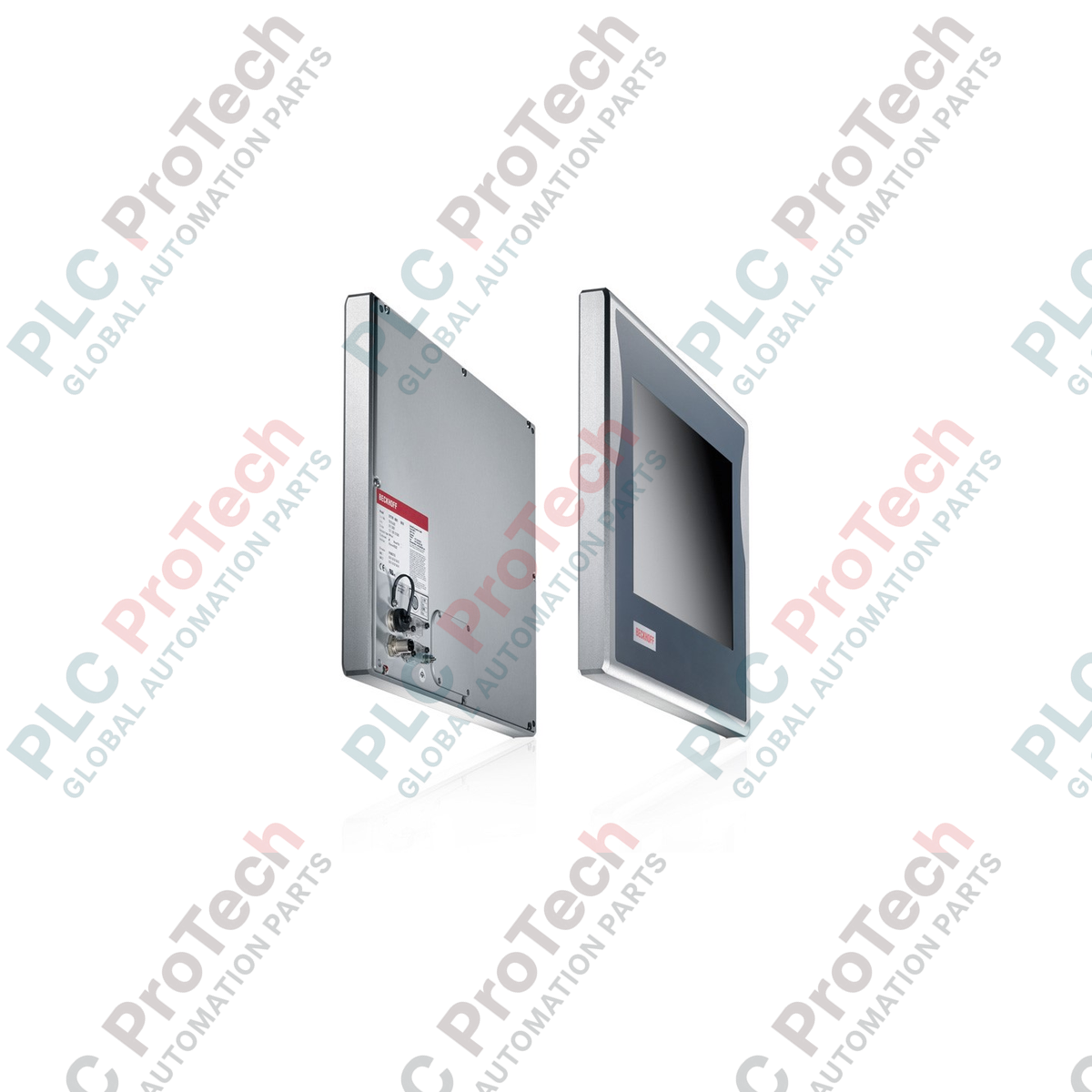

Designed for direct integration into mounting arm systems, the Beckhoff CP7732-0001-0050 provides high-performance control and visualization capabilities directly at the machine interface. This industrial Panel PC features a fully enclosed, robust aluminum housing designed to withstand harsh industrial environments while maintaining a compact footprint.
| Parameter | Specification |
|---|---|
| Manufacturer | Beckhoff Automation GmbH & Co. KG |
| Model / SKU | CP7732-0001-0050 |
| Display Size | 12-inch |
| Resolution | 800 x 600 pixels |
| Processor | Intel Atom x5-E3930, 1.3 GHz, 2 cores |
| TwinCAT Compatibility | Platform level 40 (TC3: 40) |
| Memory | 4 GB DDR4 RAM |
| Storage | 40 GB CFast card |
| Operating System | Windows 10 IoT Enterprise |
| Power Supply | 24 V DC |
| Protection Rating | IP65 (fully enclosed) |
| Operating Temperature | 0 to 45 degC |
| Housing Material | Aluminum |
| Mounting Interface | 4 x M6 x 18 mm threaded holes in backplane, mounting arm adapter |
| Country of Origin | Germany |
| Shipping Weight (Calculated) | 5.0 kg |
| Interface Port | Connection Type / Assignment |
|---|---|
| Ethernet 1 & 2 | 10/100/1000BASE-T, IP65-rated RJ45 connectors |
| Serial Port | 1 x RS232, DIN 12-pin IP65 (supports adapter to D-sub 9-pin) |
| Power Input | 24 V DC terminal connection |
The CP7732-0001-0050 is a direct replacement for legacy CP77xx series units. When upgrading, verify that your TwinCAT 3 runtime configuration is set to platform level 40 (TC3: 40) to match the Intel Atom x5-E3930 processor architecture.
Because the unit relies on passive cooling via its aluminum chassis, ensure that the rear cooling fins are not obstructed. Avoid mounting the unit in enclosed spaces where ambient temperatures exceed 45 degC, as thermal throttling may occur under heavy CPU loads.
Always use the official Beckhoff DIN 12-pin to D-sub 9-pin adapter cable to maintain the IP65 seal on the RS232 serial port. Ensure that the mounting arm adapter is securely grounded to the machine frame to prevent electrical noise from affecting the display or communication interfaces.
CRITICAL WARNING
De-energize all power sources before mounting, wiring, or servicing this Panel PC. Ensure the 24 V DC power supply is locked out and tagged out to prevent accidental energization and potential equipment damage.
Prepare the mounting arm or backplane surface, ensuring the 4 x M6 threaded holes are clean and free of debris.
Mount the Panel PC using M6 screws with a maximum thread engagement depth of 18 mm. Torque to OEM specifications.
Connect the IP65-rated Ethernet and serial cables, ensuring the locking collars are fully engaged to maintain the environmental seal.
Connect the 24 V DC power supply cable, verifying correct polarity before applying power to the system.
