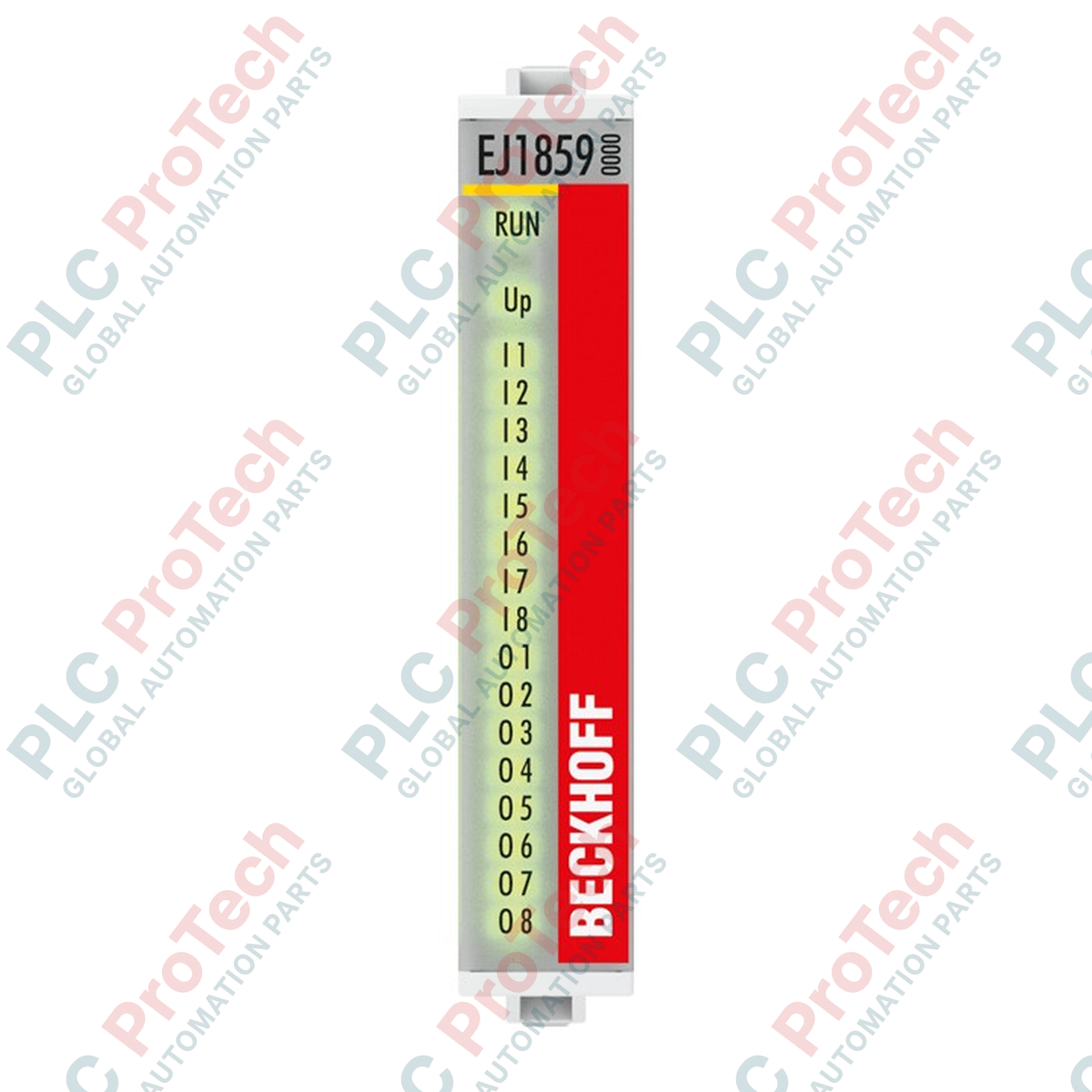

Beckhoff EJ1859 EtherCAT Plug-in Module

SKU EJ1859

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EJ1859
Origin Germany
Product Type: EtherCAT plug-in module
Payment: T/T, Western Union
Weight: 0.5 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The EJ1859 is a combi plug-in module from the EtherCAT range, designed to provide efficient signal management with a combined configuration of 8 digital inputs and 8 digital outputs. This module operates at a nominal voltage of 24 V DC and is engineered for high-density, space-saving applications. Featuring a compact 30 g design, it supports ohmic, inductive, and lamp loads, with outputs capable of handling a maximum current of 0.5 A per channel, ensuring versatile performance in industrial automation tasks.

Features

Combined configuration: 8 inputs and 8 outputs
24 V DC nominal operating voltage
0.5 A output current capacity per channel
Supports ohmic, inductive, and lamp loads
Reverse voltage protection included
EtherCAT plug-in design for high-density integration
Electrical isolation of 500 V between E-bus and field potential

Applications

Distributed industrial automation
High-density sensor and actuator interfacing
Compact machine control cabinets
Motion and process control systems

Technical Specifications

Feature	Specification
Manufacturer	Beckhoff
Channels	8 inputs + 8 outputs
Nominal Voltage	24 V DC (-15% / +20%)
Max. Output Current	0.5 A (per channel)
Input Filter	typ. 3.0 ms
Electrical Isolation	500 V (E-bus/field potential)
Current Consumption	typ. 90 mA (E-bus)
Operating Temperature	-25 to +60 deg C
Weight	approx. 30 g

Installation Guidelines

Mounting: Ensure proper placement in the designated slot for plug-in modules. Consult the system documentation for required installation positions to maintain IP20 rating.
Wiring: Connect field devices according to the terminal mapping provided in the documentation; ensure polarity is respected for the 24 V DC supply.
Protection: Utilize the integrated reverse voltage protection to safeguard against accidental miswiring during installation.
Environment: Ensure the ambient temperature remains within the -25 to +60 deg C range; avoid environments with condensation.
Safety: Verify that the total load connected does not exceed the power supply limitations of the module or the backplane power rail.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the channel configuration for the EJ1859?

This module features 8 digital inputs and 8 digital outputs.

What is the maximum output current for each channel?

The maximum output current is 0.5 A per channel.

Does the EJ1859 support different load types?

Yes, it supports ohmic, inductive, and lamp loads.

What is the electrical isolation rating?

The module provides 500 V electrical isolation between the E-bus and field potential.
