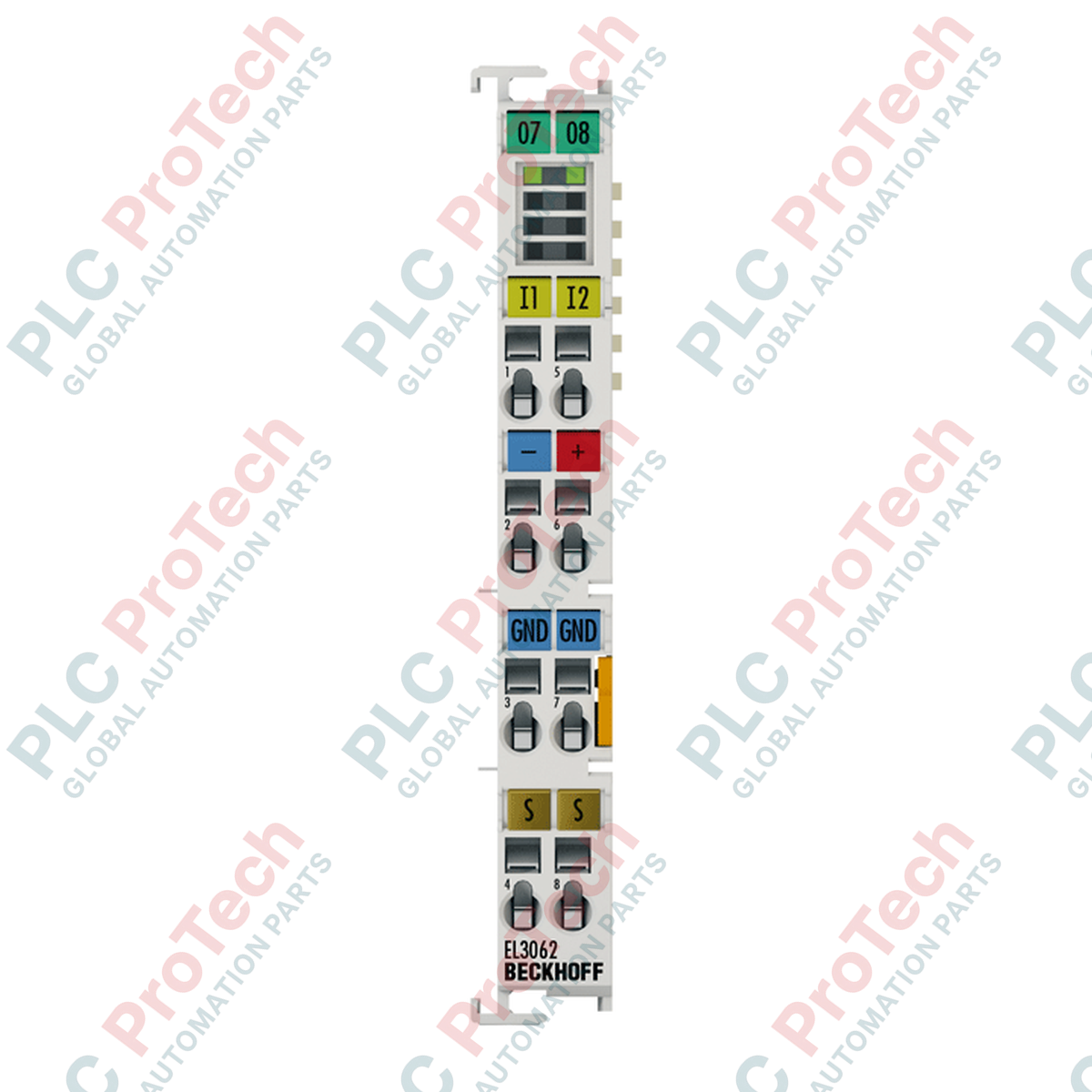

Beckhoff EL3062 EtherCAT Terminal 2-Channel Analog Input Module

SKU EL3062

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: EL3062
  • Origin Germany
  • Product Type: Analog Input Modules
  • Payment: T/T, Western Union
  • Weight: 0.06 kg
  • Dimensions: 12 mm x 100 mm x 68 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Analog Input Modules EtherCAT
Quantità
Call sales Contact

Product Description

Description

Processing analog voltage signals from field devices to higher-level controllers, the Beckhoff EL3062 EtherCAT Terminal features two single-ended analog inputs. Designed for reliable signal transmission, the module processes standard industrial signals in the 0 to 10 V range with a resolution of 12 bits. The input circuitry is electrically isolated from the E-bus up to 500 V, protecting sensitive control electronics from field-level electrical noise. Built-in configurable software filters (FIR/IIR) and integrated limit value monitoring allow engineers to optimize signal quality and diagnostic responses directly at the I/O level.

Features

  • Two single-ended analog inputs designed for 0 to 10 V voltage signals.
  • 12-bit resolution with standard 16-bit presentation including sign representation.
  • Integrated software-configurable FIR and IIR filters for high-precision signal conditioning.
  • Active limit value monitoring for immediate field-level error and threshold detection.
  • Electrical isolation of up to 500 V between the E-bus and the analog signal voltage.
  • Compact 12 mm housing width supporting dense side-by-side DIN rail mounting.
  • Status LEDs showing real-time operational state and diagnostic feedback.

Applications

  • Process technology and industrial control systems requiring precise 0 to 10 V sensor interfacing.
  • Factory automation, machinery manufacturing, and assembly line tracking.
  • HVAC, climate control, and environmental monitoring systems.
  • General packaging and material handling applications utilizing pressure, flow, or position transmitters.

Technical Specifications

ManufacturerPart Number / ModelNumber of InputsSignal Voltage RangeInternal ResistanceInput Filter Limit FrequencyDielectric StrengthConversion TimeResolutionMeasuring ErrorElectrical IsolationCurrent Consumption E-busProcess Image Bit WidthHousing WidthDimensions (W x H x D)WeightOperating TemperatureStorage TemperatureRelative HumidityVibration/Shock ResistanceEMC Immunity/EmissionProtection Rating
Beckhoff
EL3062
2 (single-ended)
0 to 10 V
> 130 kOhm
1 kHz
Max. 30 V
0.625 ms (default, configurable, multiplex)
12 bit (16 bit presentation including sign)
< ±0.3 % (relative to full scale value)
500 V (E-bus / signal voltage)
Typ. 130 mA
8 bytes (inputs)
12 mm
12 mm x 100 mm x 68 mm
Approx. 60 g
-25 to +60 degC
-40 to +85 degC
95 %, non-condensing
Conforms to EN 60068-2-6 / EN 60068-2-27
Conforms to EN 61000-6-2 / EN 61000-6-4
IP20

Installation Guidelines

  • Mounting: Mount horizontally or vertically on standard 35 mm DIN rails conforming to EN 60715 using the integrated locking mechanism.
  • Wiring Connection: Utilize spring actuation terminals. Strip solid or stranded wire to 8 to 9 mm.
  • Wire Cross-Sections:
    • Solid wire: 0.08 to 2.5 mm² (AWG 28 to 14)
    • Stranded wire: 0.08 to 2.5 mm² (AWG 28 to 14)
    • With ferrule: 0.14 to 1.5 mm² (AWG 26 to 16)
  • Grounding: Ensure the DIN rail is properly grounded to guarantee optimal electromagnetic compatibility (EMC).

Compliance and Certifications

  • CE
  • UL
  • ATEX: II 3 G Ex nA IIC T4 Gc
Shipping &amp; Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the input signal range supported by the Beckhoff EL3062?
The Beckhoff EL3062 supports a voltage signal range of 0 to 10 V DC across 2 single-ended channels.
What is the resolution of the EL3062 analog input module?
The module features a 12-bit resolution, which is presented as a 16-bit value including the sign.
Does the EL3062 support hardware filters?
Yes, the EL3062 features software-configurable FIR and IIR filters to reduce high-frequency electrical noise from field signals.
What are the environmental temperature limits for the Beckhoff EL3062?
The module operates in temperatures from -25 to +60 degC and can be stored in temperatures from -40 to +85 degC.
Is the EL3062 suitable for hazardous area installations?
Yes, the module is certified for ATEX environments under the marking II 3 G Ex nA IIC T4 Gc.
Reviews

More from this brand

ABB 1SAP131000R0278 PM5630-2ETH AC500 Processor Module
1SAP131000R0278 PM5630-2ETHABB 1SAP131000R0278 PM5630-2ETH AC500 Processor Module
ABB DSQC 351 3HNE 00006-1 DeviceNet/Interbus Gateway Module
DSQC351 3HNE00006-1ABB DSQC 351 3HNE 00006-1 DeviceNet/Interbus Gateway Module
ABB 3BSE008544R2 AI820-eA S800 I/O Analog Input Module
3BSE008544R2 AI820-eAABB 3BSE008544R2 AI820-eA S800 I/O Analog Input Module
ABB 8VZZ000167H1 DO05 16CH Digital Output w/Relay I/O Module
8VZZ000167H1 DO05ABB 8VZZ000167H1 DO05 16CH Digital Output w/Relay I/O Module

EL3062

Stock &amp; lead time on request

Call
  • EL3062
1 1

Beckhoff EL3062 EtherCAT Terminal 2-Channel Analog Input Module

Only 10 item(s) left in stock

  • Manufacturer: BECKHOFF

  • Product No.: EL3062

  • Country of origin:Germany

  • Product Type: Analog Input Modules

  • Payment: T/T, Western Union

  • Weight: 60g

  • Dimensions: 12 mm x 100 mm x 68 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Processing analog voltage signals from field devices to higher-level controllers, the Beckhoff EL3062 EtherCAT Terminal features two single-ended analog inputs. Designed for reliable signal transmission, the module processes standard industrial signals in the 0 to 10 V range with a resolution of 12 bits. The input circuitry is electrically isolated from the E-bus up to 500 V, protecting sensitive control electronics from field-level electrical noise. Built-in configurable software filters (FIR/IIR) and integrated limit value monitoring allow engineers to optimize signal quality and diagnostic responses directly at the I/O level.

Features

  • Two single-ended analog inputs designed for 0 to 10 V voltage signals.
  • 12-bit resolution with standard 16-bit presentation including sign representation.
  • Integrated software-configurable FIR and IIR filters for high-precision signal conditioning.
  • Active limit value monitoring for immediate field-level error and threshold detection.
  • Electrical isolation of up to 500 V between the E-bus and the analog signal voltage.
  • Compact 12 mm housing width supporting dense side-by-side DIN rail mounting.
  • Status LEDs showing real-time operational state and diagnostic feedback.

Applications

  • Process technology and industrial control systems requiring precise 0 to 10 V sensor interfacing.
  • Factory automation, machinery manufacturing, and assembly line tracking.
  • HVAC, climate control, and environmental monitoring systems.
  • General packaging and material handling applications utilizing pressure, flow, or position transmitters.

Technical Specifications

ManufacturerPart Number / ModelNumber of InputsSignal Voltage RangeInternal ResistanceInput Filter Limit FrequencyDielectric StrengthConversion TimeResolutionMeasuring ErrorElectrical IsolationCurrent Consumption E-busProcess Image Bit WidthHousing WidthDimensions (W x H x D)WeightOperating TemperatureStorage TemperatureRelative HumidityVibration/Shock ResistanceEMC Immunity/EmissionProtection Rating
Beckhoff
EL3062
2 (single-ended)
0 to 10 V
> 130 kOhm
1 kHz
Max. 30 V
0.625 ms (default, configurable, multiplex)
12 bit (16 bit presentation including sign)
< ±0.3 % (relative to full scale value)
500 V (E-bus / signal voltage)
Typ. 130 mA
8 bytes (inputs)
12 mm
12 mm x 100 mm x 68 mm
Approx. 60 g
-25 to +60 degC
-40 to +85 degC
95 %, non-condensing
Conforms to EN 60068-2-6 / EN 60068-2-27
Conforms to EN 61000-6-2 / EN 61000-6-4
IP20

Installation Guidelines

  • Mounting: Mount horizontally or vertically on standard 35 mm DIN rails conforming to EN 60715 using the integrated locking mechanism.
  • Wiring Connection: Utilize spring actuation terminals. Strip solid or stranded wire to 8 to 9 mm.
  • Wire Cross-Sections:
    • Solid wire: 0.08 to 2.5 mm² (AWG 28 to 14)
    • Stranded wire: 0.08 to 2.5 mm² (AWG 28 to 14)
    • With ferrule: 0.14 to 1.5 mm² (AWG 26 to 16)
  • Grounding: Ensure the DIN rail is properly grounded to guarantee optimal electromagnetic compatibility (EMC).

Compliance and Certifications

  • CE
  • UL
  • ATEX: II 3 G Ex nA IIC T4 Gc
Key Features:
#Analog Input Modules #EtherCAT

What is the input signal range supported by the Beckhoff EL3062?
The Beckhoff EL3062 supports a voltage signal range of 0 to 10 V DC across 2 single-ended channels.

What is the resolution of the EL3062 analog input module?
The module features a 12-bit resolution, which is presented as a 16-bit value including the sign.

Does the EL3062 support hardware filters?
Yes, the EL3062 features software-configurable FIR and IIR filters to reduce high-frequency electrical noise from field signals.

What are the environmental temperature limits for the Beckhoff EL3062?
The module operates in temperatures from -25 to +60 degC and can be stored in temperatures from -40 to +85 degC.

Is the EL3062 suitable for hazardous area installations?
Yes, the module is certified for ATEX environments under the marking II 3 G Ex nA IIC T4 Gc.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS

Country of origin
Germany

Technical knowledge
