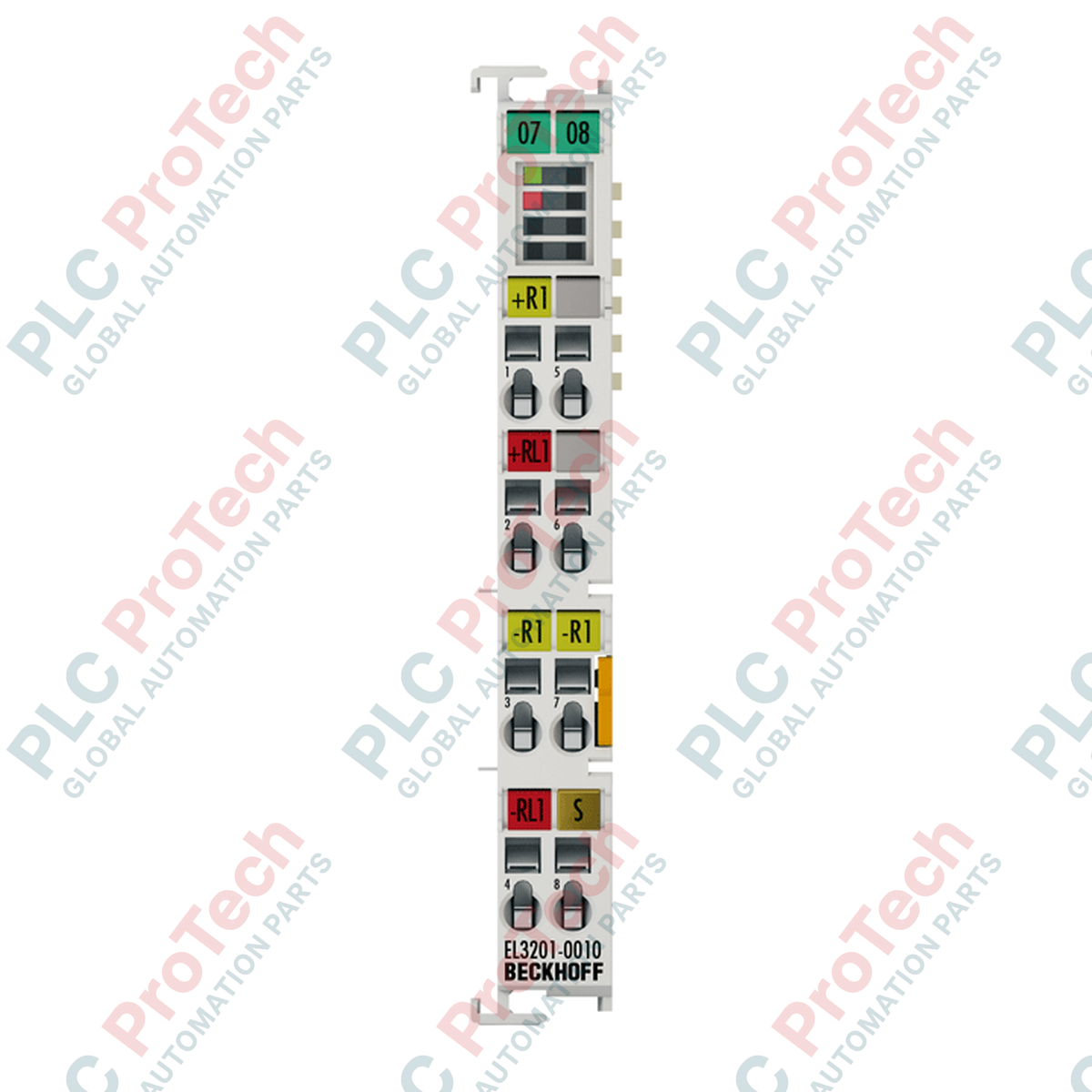

Designed for high-precision temperature sensing in demanding industrial environments, the Beckhoff EL3201-0010 is a 1-channel analog input terminal engineered to interface directly with resistance temperature detectors (RTDs). This EtherCAT terminal utilizes a 4-wire connection methodology, enabling active lead resistance compensation to achieve high measurement accuracy across varying environments.
By digitizing signals with 16-bit resolution, the EL3201-0010 RTD sensor terminal provides highly stable and linearized temperature monitoring. The module comes equipped with integrated digital filtering, limit value monitoring, and configurable conversion rates, making it an essential hardware component for critical thermal management, process monitoring, and calibration systems.
| Manufacturer | Beckhoff |
| Part Number/Model | EL3201-0010 |
| Product Type | EtherCAT Terminal (1-Channel Analog Input) |
| Number of Inputs | 1 |
| Connection Technology | 4-wire |
| Supported Sensor Types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (10 Ohm to 1/4 kOhm), KTY sensors |
| Measuring Range | -200 to +850 degC (Pt sensors); -60 to +250 degC (Ni sensors); -200 to +320 degC (high-precision) |
| Resolution | 0.01 degC per digit |
| Conversion Time | Approx. 24 ms default (4 to 500 ms configurable) |
| Input Filter Limit Frequency | Typ. 1 kHz |
| Measuring Current | < 0.5 mA (load-dependent) |
| Measuring Error | < ±0.1 degC at 40 degC ambient temperature (4-wire, Pt100, -200 to +320 degC, 50 Hz filter) |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Current Consumption E-bus | Typ. 190 mA |
| Process Image Bit Width | 1 x 32 bit RTD input |
| Operating Temperature | -25 to +60 degC |
| Storage Temperature | -40 to +85 degC |
| Relative Humidity | 95%, non-condensing |
| EMC Immunity / Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Vibration / Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Protection Rating | IP20 |
| Housing Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 60 g |
| Connection Parameter | Specification |
|---|---|
| Solid Conductor Cross-section | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Stranded Conductor Cross-section | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Ferrule Cross-section | 0.14 to 1.5 mm² (AWG 26 to 16) |
| Stripping Length | 8 to 9 mm |
| Wiring Mechanism | Spring actuation by screwdriver |
| Power Contacts Current Load | Imax: 10 A |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EL3201-0010
Country of origin:Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 60g
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months
