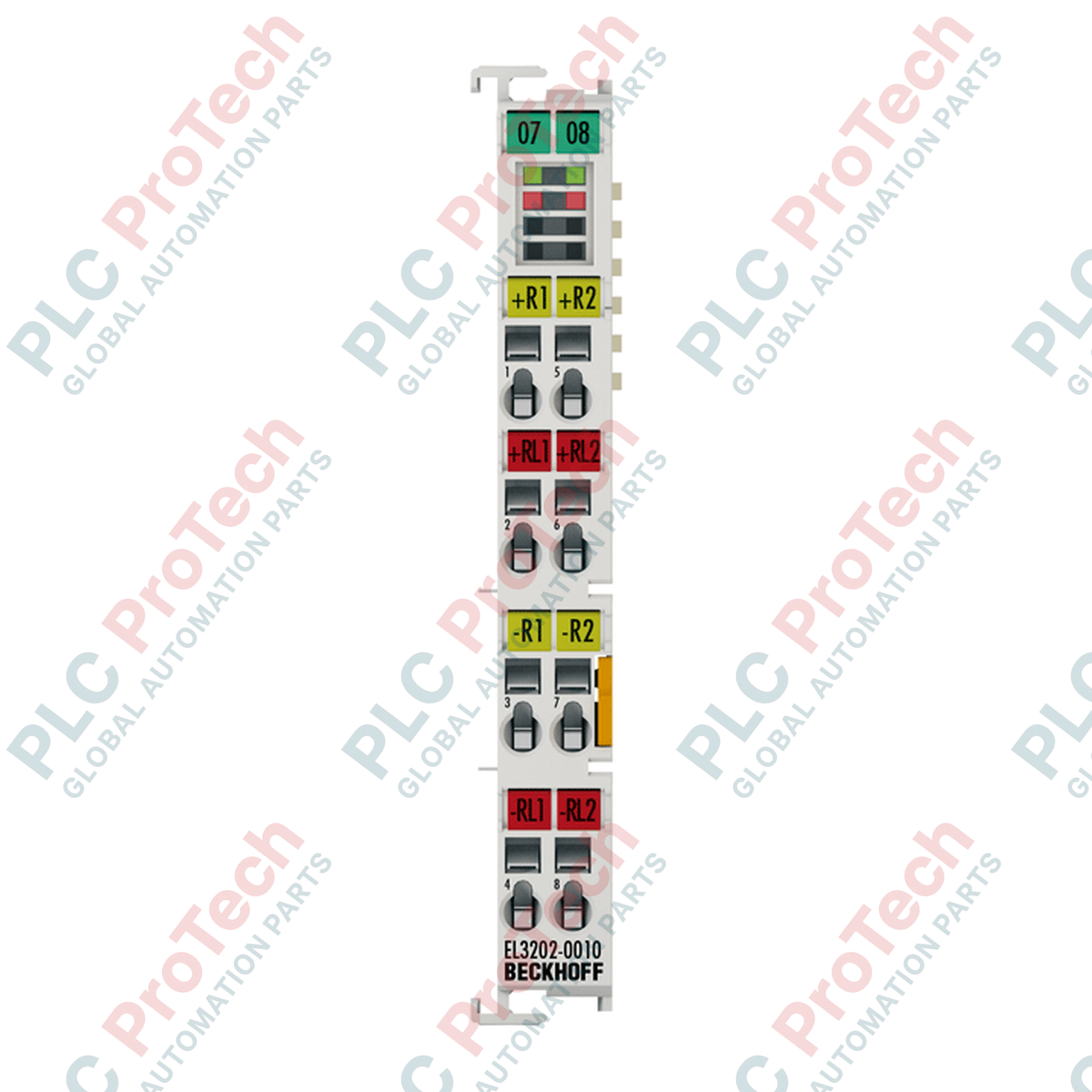

For high-precision temperature measurements in demanding automation architectures, the Beckhoff EL3202-0010 delivers dual-channel analog sensor integration in a highly compact form factor. This EtherCAT Terminal is engineered to handle Resistance Temperature Detectors (RTD) with high resolution and absolute measurement reliability. By utilizing direct 4-wire connection technology, the module effectively eliminates signal degradation and measurement errors caused by long sensor cables, securing accurate process data for feedback control loops.
The unit receives power directly through the standard E-bus connection. Operating with a 16-bit analog-to-digital converter, it provides process temperature values down to a resolution of 0.01 Celsius per digit. An integrated configurable low-pass filter, limit monitoring, and detailed diagnostics ensure that users can tailor the terminal's performance to match specific process dynamics and harsh electrical noise environments.
| Manufacturer | Beckhoff |
| Part Number / Model | EL3202-0010 |
| Number of Inputs | 2 |
| Technology | 4-wire |
| Input Filter Limit Frequency | typ. 1 kHz |
| Sensor Support | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance (e.g. potentiometer 10 Ohm to 1/4 kOhm), KTY sensors |
| Measuring Range | -200 to +850 Celsius (Pt sensors); -60 to +250 Celsius (Ni sensors); -200 to +320 Celsius (high-precision range) |
| Resolution | 0.01 Celsius per digit |
| Conversion Time | approx. 85 ms default setting, 2 to 800 ms configurable |
| Measuring Current | < 0.5 mA (load-dependent) |
| Measuring Error | < +/-0.1 Celsius at 40 Celsius ambient temperature, 4-wire connection, Pt100 sensors (-200 to +320 Celsius range) and 50 Hz filter |
| Electrical Isolation | 500 V (E-bus / signal voltage) |
| Power Supply | via the E-bus |
| Current Consumption E-bus | typ. 190 mA |
| Process Image Bit Width | 2 x 32 bit RTD input |
| Operating Temperature | -25 to +60 Celsius |
| Storage Temperature | -40 to +85 Celsius |
| Relative Humidity | 95 %, non-condensing |
| Vibration / Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity / Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| IP Rating | IP20 |
| Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 60 g |
| Connection Property | Specification |
|---|---|
| Wiring Mechanism | Spring actuation by screwdriver |
| Solid Conductor (s) | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Stranded Conductor (st) | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Flexible Conductor with Ferrule (f) | 0.14 to 1.5 mm² (AWG 26 to 16) |
| Stripping Length | 8 to 9 mm |
| Current Load Power Contacts | Imax: 10 A |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EL3202-0010
Country of origin:Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 60g
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months
