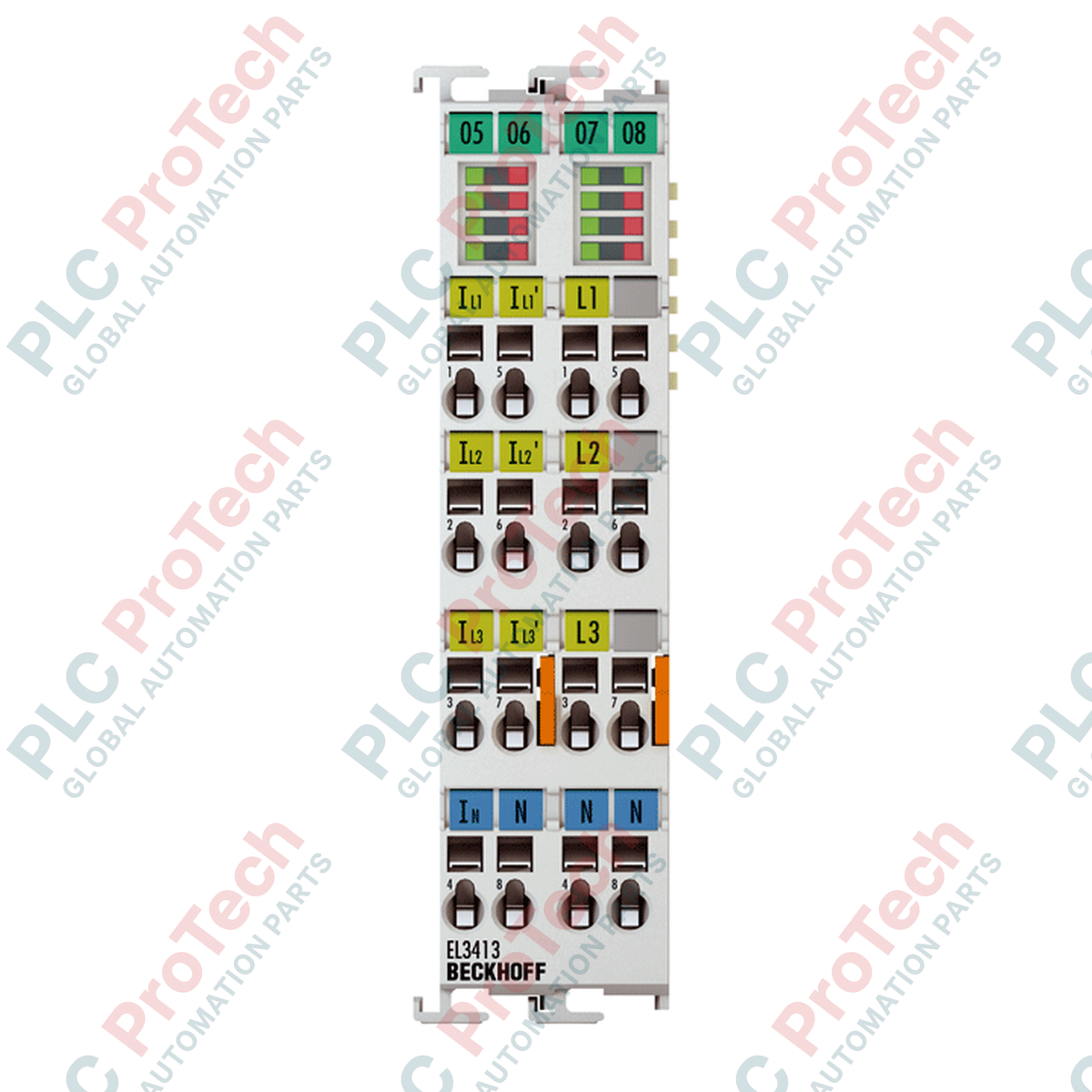

Designed for precise utility-grade analysis, the EL3413-0001 functions as a highly integrated 3-channel power measurement terminal within the Beckhoff EtherCAT I/O system. This industrial-grade module enables comprehensive evaluation of 3-phase AC power grids by direct connection of voltages up to 690 V AC. It features galvanically isolated current inputs designed for adjustable ranges of 100 mA, 1 A, and 5 A, providing high-accuracy readings even in electrically noisy environments.
The EL3413-0001 power measurement terminal performs mains-synchronous conversion with a 16-bit resolution, calculating essential network parameters such as active, reactive, and apparent power, energy consumption, frequency, power factor (cos phi), and harmonic wave analysis. It is optimized for energy management systems, grid synchronization, and machine-level load monitoring, transferring all calculated values directly to the PLC or DCS via high-speed EtherCAT communication.
| Manufacturer | Beckhoff | EL3413-0001 |
| Technology | 3-phase power measurement for alternating voltages | Single-ended |
| Number of Inputs | 4 x current, 3 x voltage | Mains-synchronous |
| Measuring Voltage | Max. 690 V AC 3-phase (ULX-N: max. 400 V AC) | Adjustable: 100 mA, 1 A (default), 5 A (potential-free) |
| Resolution | 1 microampere, 0.1 mV, 10 mW | 16-bit |
| Measuring Error | 0.5% relative to full scale value (U/I), 1% calculated value | 4500 V |
| Current Consumption (E-bus) | Typ. 160 mA | IP20 / variable |
| Operating Temperature | -25 to +60 degC | -40 to +85 degC |
| Relative Humidity | 95%, non-condensing | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | Approx. 100 g |
| Connection Type | Conductor Specifications |
|---|---|
| Wiring Technology | Spring actuation by screwdriver |
| Solid Conductor (e) | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Flexible Conductor (f) | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Ferrule Connection (a) | 0.14 to 1.5 mm² (AWG 26 to 16) |
| Stripping Length | 8 to 9 mm |
| Power Contact Current Load | Imax: 10 A |
