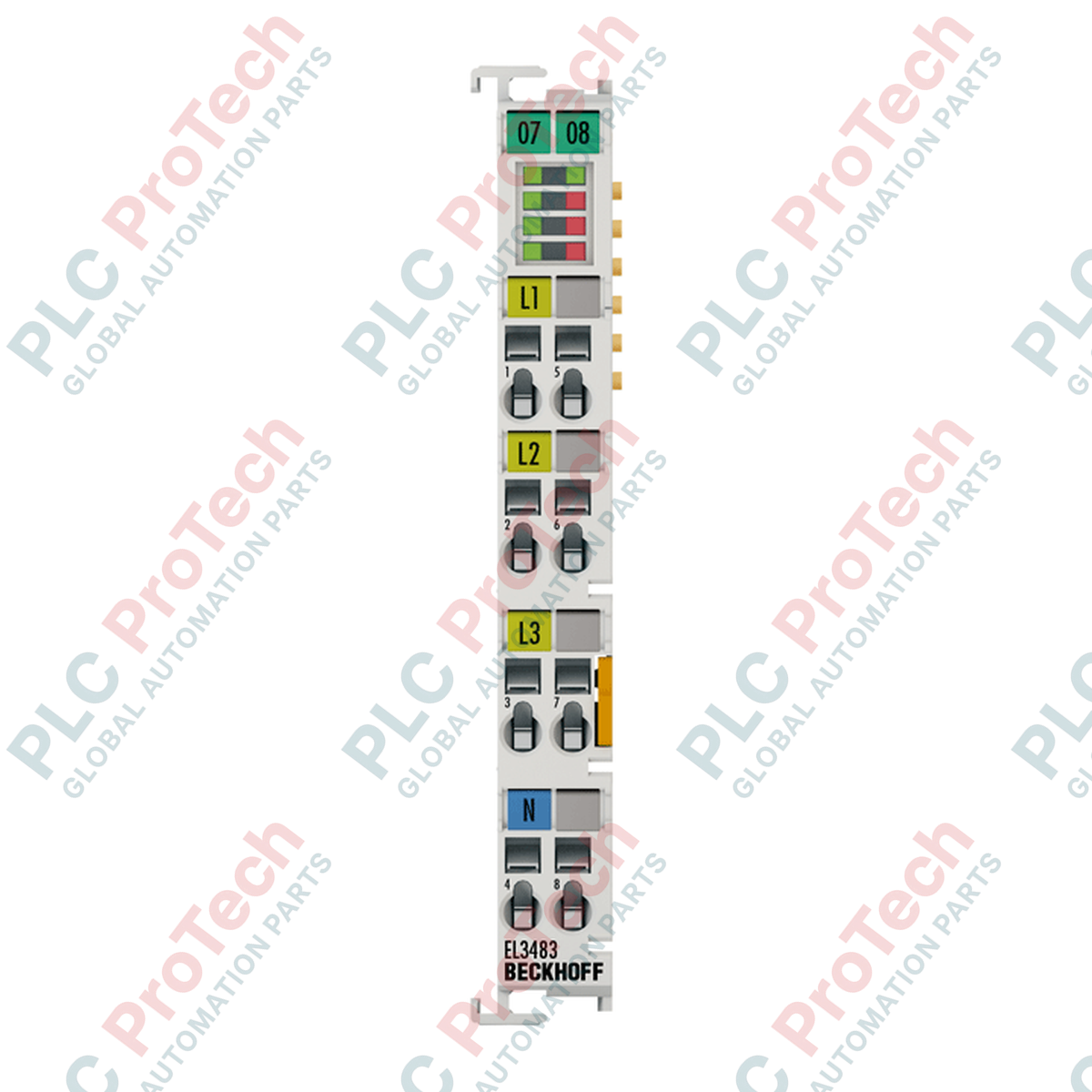

Beckhoff EL3483 EtherCAT Terminal

SKU EL3483

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL3483
Origin Germany
Product Type: EtherCAT Terminal
Payment: T/T, Western Union
Weight: 2.0 kg
Dimensions: 12 mm x 100 mm x 68 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The EL3483 is an EtherCAT terminal designed for monitoring the electrical parameters of a 3-phase supply network. It internally measures voltage by directly connecting to phases L1, L2, L3, and the neutral conductor. The terminal compares these values against user-defined thresholds and provides status information directly in the process image. It detects phase sequence, phase failure, undervoltage, overvoltage, and phase asymmetry, offering a comprehensive solution for grid analysis and mains monitoring.

Features

Mains Monitoring: Real-time monitoring of voltage, frequency, and phase data.
Diagnostics: Detects phase order, phase failure, asymmetry, and voltage thresholds (over/under).
Process Data: Provides digital information in the process image; the EL3483-0060 variant additionally outputs current RMS voltage values.
Mains Quality: Calculates a mains quality factor for power supply analysis.
Flexibility: Supports optional single-phase operation.
Compact Design: Slim 12 mm terminal housing with integrated status LEDs.

Technical Specifications

Feature	Specification
Manufacturer	Beckhoff
Number of Inputs	3 x voltage
Technology	3-phase mains monitor
Measuring Voltage	Max. 480 V AC (ULX-N: max. 277 V AC/240 V DC)
Measuring Error	0.5% (U), 1% (calculated value)
Update Interval	200 ms at 50 Hz (10 mains periods)
Electrical Isolation	2500 V
Current Consumption	Typ. 120 mA (E-bus)
Operating Temperature	-25 to +60 deg C
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Weight	Approx. 75 g

Installation Guidelines

Mounting: Mount on a 35 mm DIN rail (EN 60715) using the locking mechanism. Side-by-side mounting is supported via double slot and key connections.
Wiring: Use spring-actuated terminals for solid (0.08–2.5 mm²) or flexible (0.08–2.5 mm²) conductors. Strip wires to 8–9 mm.
Safety: Ensure proper connection of L1, L2, L3, and N. Exercise caution during installation to avoid electric shock.
Diagnostics: Monitor the front-panel LEDs. RUN indicates the EtherCAT state, System OK represents system health, and L1/L2/L3 LEDs indicate voltage status (green for normal, flashing for warning, off for prohibited range).

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary application of the EL3483?

The EL3483 is used for monitoring electrical data in a 3-phase supply network, including voltage, frequency, and phase sequence.

What is the measuring voltage range for the EL3483?

It supports a measuring voltage of up to 480 V AC (or 277 V AC/240 V DC relative to neutral).

How does the terminal indicate voltage faults?

It provides digital information in the process image and uses status LEDs. If a threshold is exceeded, it sets warning or error bits and adjusts the L1, L2, L3 LEDs accordingly.

What is the difference between the EL3483 and EL3483-0060?

The EL3483-0060 variant provides additional analog RMS voltage values in the process image, whereas the standard EL3483 focuses on digital monitoring threshold values.
