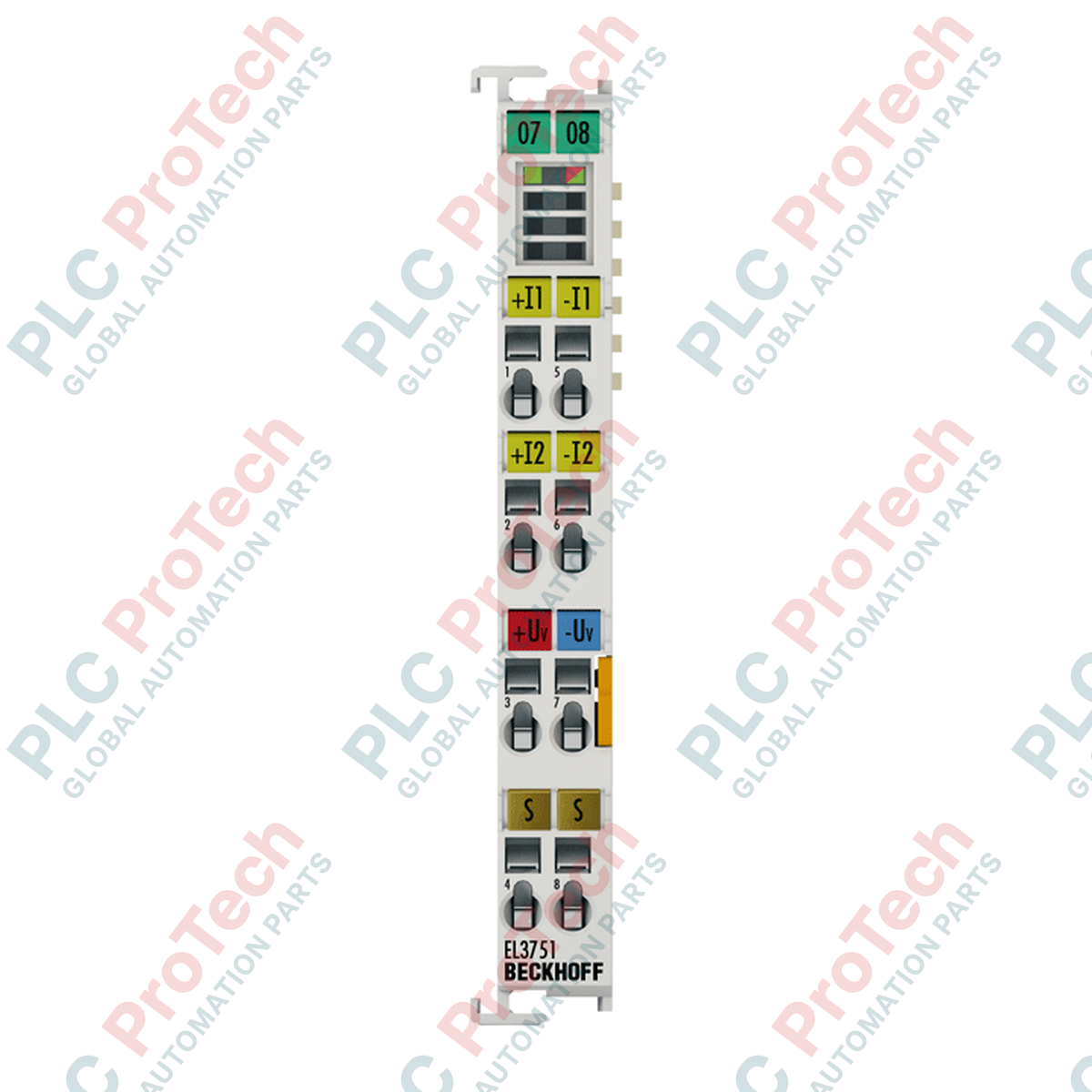

Engineered for high-precision industrial data acquisition, the BECKHOFF EL3751 is a single-channel, multi-function analog input EtherCAT Terminal delivering 24-bit resolution at sampling rates up to 10 ksps. This versatile measurement module processes multiple signal types including voltage, current, resistance, temperature via RTDs, and bridge sensors. By leveraging high-speed oversampling and distributed clocks with sub-microsecond synchronization, it ensures precise timing and dynamic control-loop integration.
The unit features a highly flexible input structure supporting 2-, 3-, 4-, 5-, and 6-wire connection configurations, eliminating the need for various dedicated module types. Onboard digital signal processing features include a freely parameterizable numeric filter, TrueRMS calculations, integration/differentiation, and PeakHold extraction. Additionally, an integrated, parameterizable power supply (0.5 to 5 V) is provided directly on-terminal to power external strain gauges and bridge sensors.
| BECKHOFF |
| EL3751 |
| EtherCAT Terminal (1-Channel Analog Input) |
| 24 bit (including sign) |
| 100 us / 10 ksps |
| n = 1 to 64 |
| less than 1 us |
| greater than 500 kOhm (30 V range), greater than 4 MOhm (other voltage ranges), 150 Ohm (current range) |
| 3 kHz |
| max. 36 V |
| +/-30 V, +/-10 V, +/-5 V, +/-2.5 V, +/-1.25 V, +/-640 mV, +/-320 mV, +/-160 mV, +/-80 mV, +/-40 mV, +/-20 mV, +/-10 mV, +/-5 mV, 0...5 V, 0...10 V, +/-20 mA, 0/4...20 mA, NAMUR NE43, 0...5 kOhm, Pt100/Pt1000, Ni, KTY, 1/4 bridge (350 Ohm + 120 Ohm), 1/2 bridge (+/-16 mV/V), full bridge (+/-32 mV/V), potentiometer (greater than or equal to 1 kOhm) |
| Typically 107% of nominal range (ExtendedRange) |
| typ. +/-0.01% of full scale value at 23 degC (range dependent) |
| typ. less than 15 ppm/K (range dependent) |
| 500 V (E-bus / signal voltage) |
| typ. 260 mA |
| approx. 65 g |
| 0 to +55 degC |
| -25 to +85 degC |
| 95%, non-condensing |
| Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Conforms to EN 61000-6-2 / EN 61000-6-4 |
| IP20 |
| II 3 G Ex nA IIC T4 Gc |
| 12 mm x 100 mm x 68 mm |
| Connection Type | Specification / Cross-Section |
|---|---|
| Wiring Technology | Spring actuation by screwdriver; solid, flexible, or ferrule conductors |
| Solid / Stranded Conductor Cross-Section | 0.08 to 2.5 mm² (AWG 28 to 14) |
| Flexible Conductor with Ferrule | 0.14 to 1.5 mm² (AWG 26 to 16) |
| Stripping Length | 8 to 9 mm |
