BECKHOFF EP2008-0022 EtherCAT Box 8-Channel Digital Output Module

SKU EP2008-0022

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EP2008-0022
Origin Germany
Product Type: EtherCAT Box Modules
Payment: T/T, Western Union
Weight: 0.25 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

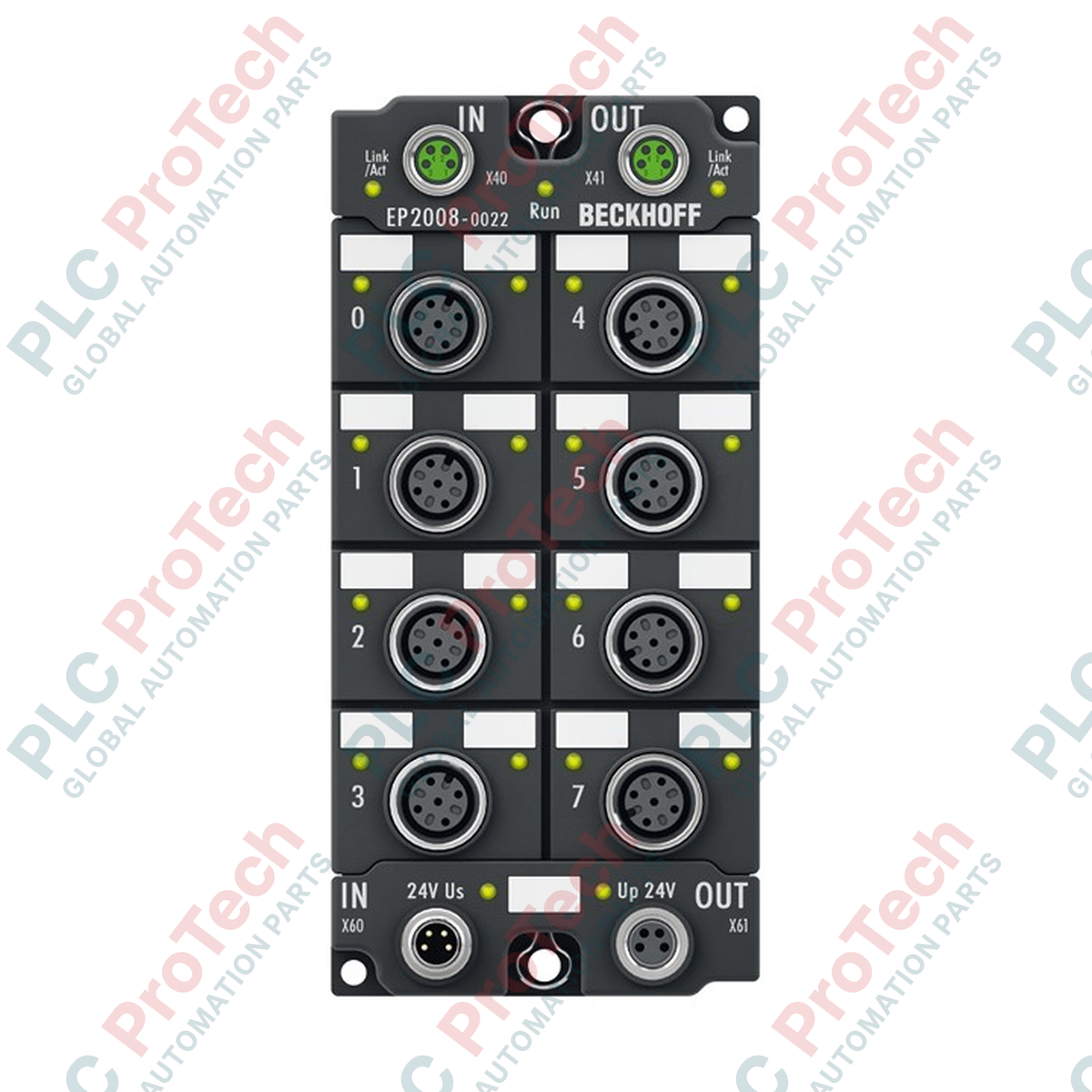

Designed for decentralized industrial automation, the BECKHOFF EP2008-0022 EtherCAT Box enables the direct processing of binary control signals. This highly robust, machine-mountable I/O module features 8 digital outputs, each operating at 24 V DC and capable of switching load currents up to 0.5 A. Engineered for harsh industrial environments, it features a rugged, fully sealed IP67 enclosure that allows for installation directly on machinery, completely eliminating the need for protective control cabinets.

The EP2008-0022 interfaces with actuators through standard M12 connectors, providing 1 output per M12 socket. The high-speed EtherCAT protocol connection is established via shielded M8 screw-type connectors, ensuring rapid, reliable data transmission and optimal electromagnetic immunity in noise-heavy manufacturing zones.

Features

8 digital outputs (24 V DC) for direct connection to actuators, solenoids, or indicators.
Robust IP65, IP66, and IP67 protection class ratings for harsh on-machine environments.
Individually short-circuit proof outputs with automatic overload protection.
M12 connection technology (5-pin, A-coded) with 1 output allocated per socket.
High-speed EtherCAT bus interface using 2 x M8 shielded screw-type connections.
LED indicators for diagnostic monitoring of channel state, power supply, and bus communication.
Direct, cabinet-free mounting to minimize cabling and integration time.

Applications

Pneumatic and hydraulic valve terminal control
Material handling and conveyor systems
Robotic end-of-arm tooling and assembly lines
Automotive manufacturing cells
General distributed machinery and industrial packaging

Technical Specifications

Parameter	Specification
Manufacturer	BECKHOFF
Part Number / Model	EP2008-0022
Protocol	EtherCAT
Bus Interface	2 x M8 socket, shielded, screw type
Number of Outputs	8 digital outputs
Output Connections	M12 x 1, 5-pin, A-coded (1 output per M12 plug)
Load Type	Ohmic, inductive, lamp load
Nominal Output Voltage	24 V DC (-15% / +20%)
Max. Output Current	0.5 A per channel (individually short-circuit proof), max. 4 A total sum
Switching Times	typ. TON: 60 us, typ. TOFF: 300 us
Short-Circuit Current	max. 1.5 A
Current Consumption (Us)	typ. 130 mA from EtherCAT system voltage
Auxiliary Power Current (Up)	typ. 20 mA + load current
Power Supply Connection	Feed: 1 x M8 male socket (4-pin); Downstream: 1 x M8 female socket (4-pin)
Electrical Isolation	500 V
Protection Rating	IP65, IP66, IP67 (conforms to EN 60529)
Operating Temperature	-25 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Vibration/Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity/Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Weight	approx. 250 g

Connections and Interfaces

Power Supply (M8, 4-Pin)

Pin	Function
1	+24 V DC feed (Control voltage Us)
2	+24 V DC feed (Auxiliary voltage Up for outputs)
3	GNDs (Control voltage ground)
4	GNDp (Auxiliary voltage ground)

Digital Output (M12, 5-Pin, A-Coded)

Pin	Function
1	Not connected
2	Not connected
3	GND (Reference potential)
4	Output Signal (24 V DC)
5	Functional Earth (FE)

Installation Guidelines

Mounting: Attach to a flat surface using integrated mounting holes. Ensure maximum structural stability to maintain vibration resistance.
Torque: Apply specified torque to M8 and M12 connectors to guarantee dust- and moisture-tight IP67 sealing.
Grounding: Connect functional earth (FE) to the machine chassis via the mounting surface or via M12 pin 5 to minimize noise interference.
Cabling: Keep signal cables separated from heavy power cables to prevent electromagnetic cross-talk.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the protection rating of the BECKHOFF EP2008-0022?

The module features IP65, IP66, and IP67 protection ratings, allowing it to be installed directly on machinery without needing an enclosure.

How many outputs does the EP2008-0022 have and what is their rating?

The module has 8 digital outputs, with each channel rated for a maximum of 0.5 A at 24 V DC (total sum current of 4 A).

How are the inputs/outputs wired?

The EP2008-0022 uses standard A-coded M12 connections, dedicating 1 digital output per M12 socket.

Are the outputs protected against short circuits?

Yes, all 8 digital outputs are individually protected against short circuits with a maximum short-circuit current of 1.5 A.
