Product Overview

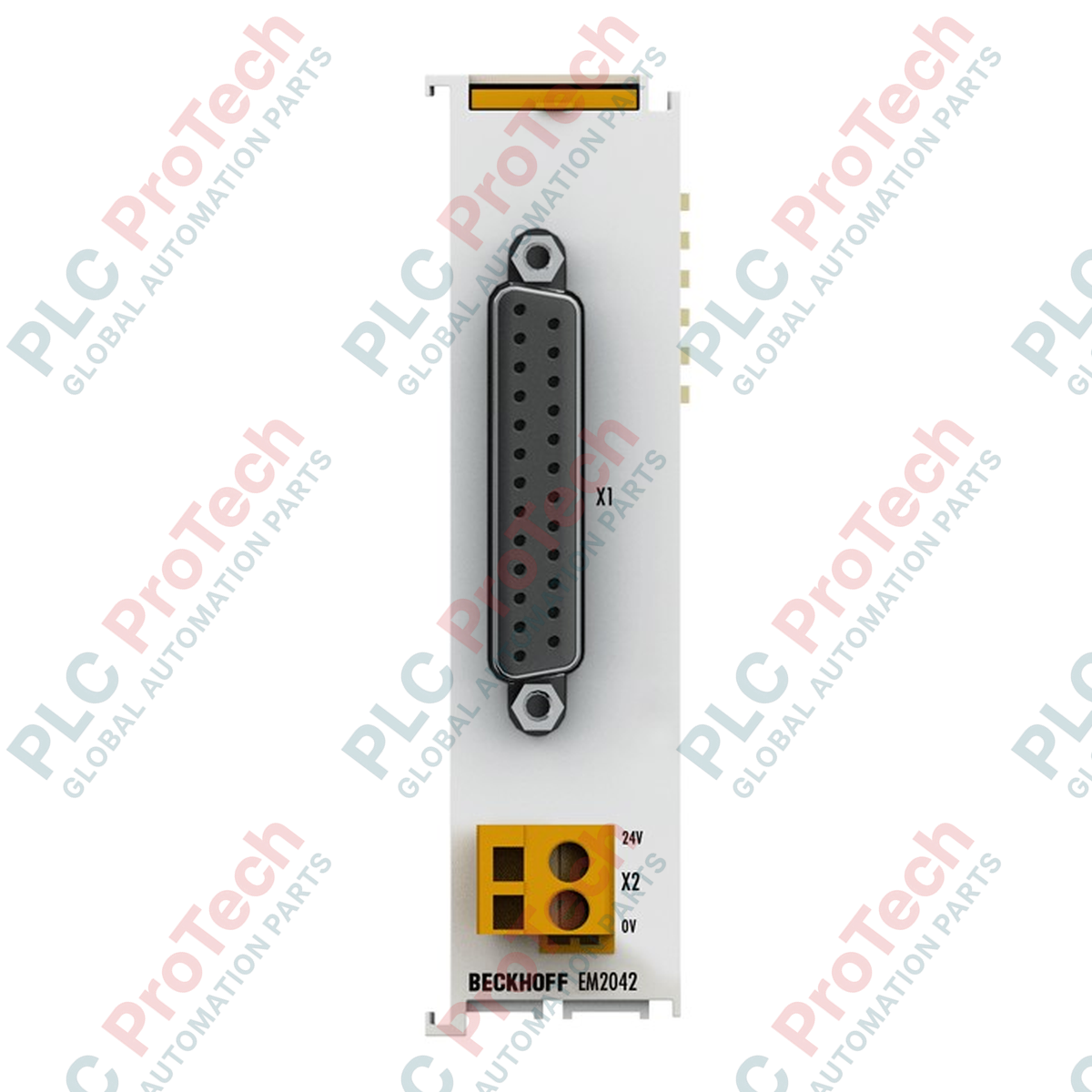

The EM2042 (EM2042) is a high-density 16-channel digital output terminal specifically designed for EtherCAT environments where space and wiring efficiency are paramount. By utilizing a high-density D-sub interface, this module is perfectly suited for controlling multi-pin connector valve terminals, effectively eliminating the need for complex, individual point-to-point wiring for every pneumatic actuator. The EM2042 combines the high-speed, deterministic nature of EtherCAT with a robust output architecture, ensuring reliable performance in automated assembly and industrial process control applications.

Technical Configuration

The EM2042 provides 16 individual digital outputs, each capable of switching up to 0.5 A, with a total aggregate current of 4 A. To ensure system reliability and protection against field-side faults, each channel is individually short-circuit proof. The unit includes reverse voltage protection and can handle inductive breaking energy of up to 150 mJ per channel, making it ideal for driving solenoid valves and relays. Communication is managed via the EtherCAT E-bus (consuming ~115 mA), and the module provides 500 V electrical isolation between the field and E-bus potentials to maintain signal integrity.

Technical Specifications

FAQs

How does the D-sub interface simplify my installation?

The D-sub connector allows for a single, pre-fabricated multi-pin cable to connect the EM2042 directly to your pneumatic valve terminal. This "plug-and-play" approach significantly reduces installation labor, minimizes wiring errors, and allows for much faster machine setup and troubleshooting.

What is the aggregate current limit of 4 A?

While each of the 16 channels can handle up to 0.5 A individually, the total simultaneous current draw across all channels must not exceed 4 A to avoid exceeding the thermal limits of the module and the D-sub connection.

Does the module require a separate power supply for the field side?

Yes, while the E-bus provides power for internal communication, a separate 24 V DC supply is required via the X2 connector to power the actuators connected to the output channels.

Engineering Guidelines and Best Practices

• Valve Terminal Compatibility: When integrating the EM2042, always verify that your specific valve island's pin assignment matches the D-sub configuration of the EM2042. Improper mapping can result in the wrong valves being triggered or potential damage to the drivers.
• Inductive Load Protection: If you are using the terminal to drive particularly large solenoid valves, verify that the energy released during de-energization (flyback) does not consistently exceed the 150 mJ rating. Use external flyback diodes if necessary to ensure the longevity of the module’s output stages.
• Environmental Mounting: Though the EM2042 is designed for IP20 environments, avoid mounting it in areas exposed to excessive condensation or conductive dust. Always install the module in a control cabinet that is compliant with local environmental standards to maintain its rated MTBF.
