Product Overview

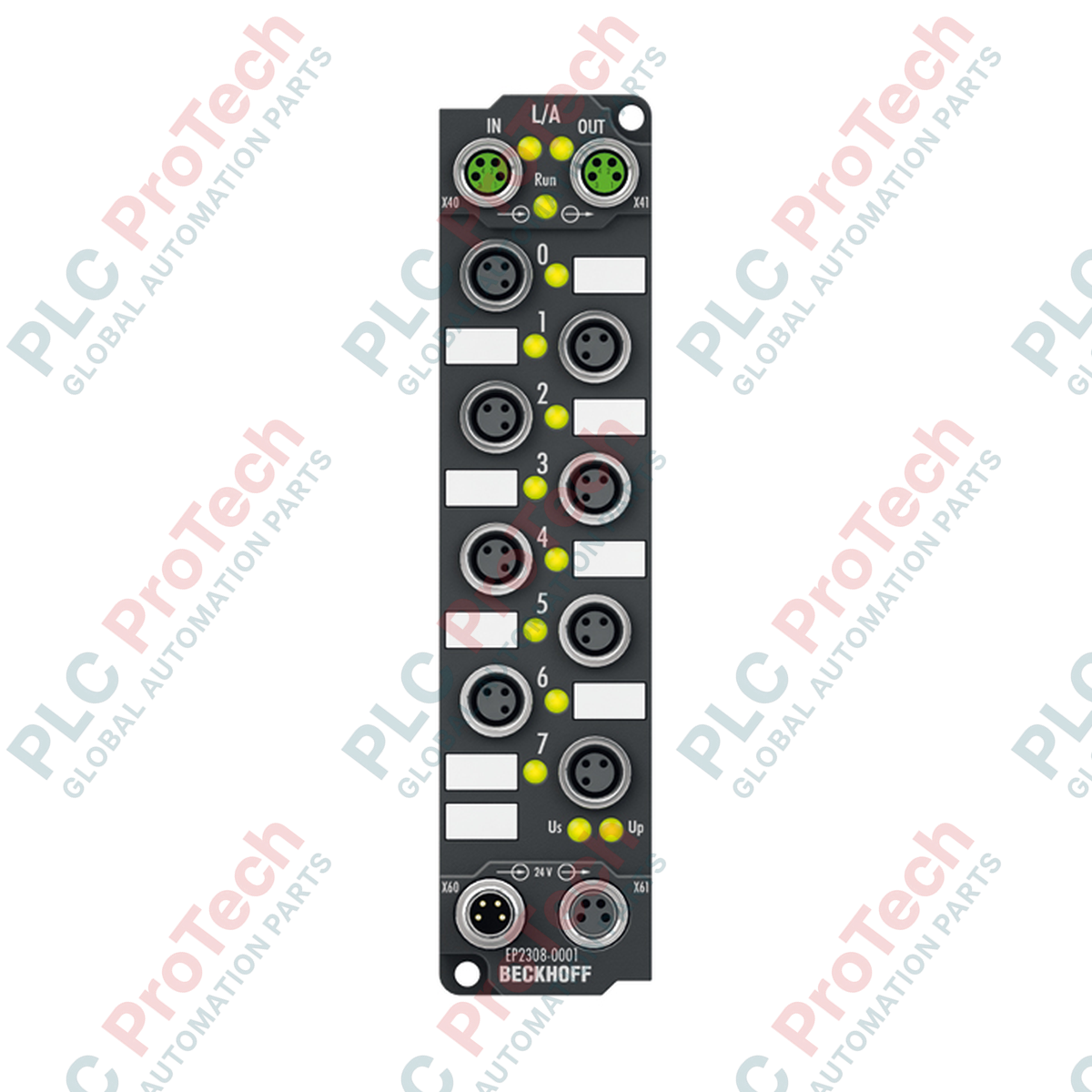

The Beckhoff EP2308-0001 is a high-performance, ruggedized digital I/O module from the EtherCAT Box series. Designed for decentralized automation tasks, this module provides 4 digital inputs and 4 digital outputs within a compact, fully sealed IP65/66/67-rated housing. By utilizing the EtherCAT protocol, the EP2308-0001 enables high-speed, real-time data exchange, making it an ideal solution for machinery requiring distributed I/O in harsh environments where control cabinets are not available.

Note: Please verify the part number for your specific application, as your request mentions both "EP2308-0001" and "EP2038-0001." The technical details provided match the standard EP2308-0001 4-in/4-out configuration.

Technical Configuration

The EP2308-0001 is engineered for robust industrial performance, integrating directly into EtherCAT networks via M8 connections.

• EtherCAT Connectivity: Features two M8 sockets for the EtherCAT bus, allowing for daisy-chaining multiple boxes without the need for additional switches.
• Flexible I/O Handling: The 4 inputs and 4 outputs are designed to handle 24 V DC signals, supporting diverse load types including ohmic, inductive, and lamp loads.
• Rugged Construction: Its IP67 rating ensures complete protection against dust ingress and immersion in water, allowing it to be mounted directly on machine frames or in exposed areas.
• Sensor/Load Supply: Provides short-circuit-proof power distribution for sensors and actuators, simplified by M8 connectivity which reduces wiring time and complexity.

Technical Specifications

Frequently Asked Questions

Does the module require external power for the outputs?

Yes. While the EtherCAT bus provides power for the module's electronics, the 24 V DC load voltage must be supplied via the M8 auxiliary power connection to drive the digital outputs and power the connected sensors.

Can I use this module in hazardous (ATEX) environments?

Yes, the module carries an Ex marking of II 3 G Ex nA IIC T4 Gc, making it suitable for use in specific hazardous areas where non-sparking equipment is required. Always check your local safety regulations before installation in potentially explosive atmospheres.

How is the module addressed in an EtherCAT network?

As an EtherCAT slave, the EP2308-0001 is automatically addressed by the EtherCAT Master (typically a TwinCAT controller) based on its physical position in the network topology. No manual DIP switch addressing is required.

Engineering Integration and Operational Best Practices

• Cable Routing: Use shielded EtherCAT cables with M8 connectors to ensure signal integrity. In high-interference environments (near high-voltage lines or large motors), keep bus cables physically separated from power-carrying cables.
• Short-Circuit Protection: The outputs are individually short-circuit proof. If a channel trips due to a short, the diagnostic status will be communicated back to the master controller, allowing for rapid fault location via the control software.
• Mounting: The box is designed for variable installation positions. Use the integrated mounting holes to secure the module firmly to a vibration-dampened surface to ensure compliance with the specified shock and vibration standards (EN 60068).
• Seal Integrity: Ensure that all unused M8 ports are fitted with protective caps. This is critical to maintaining the IP67 protection rating in washdown or dusty environments.
