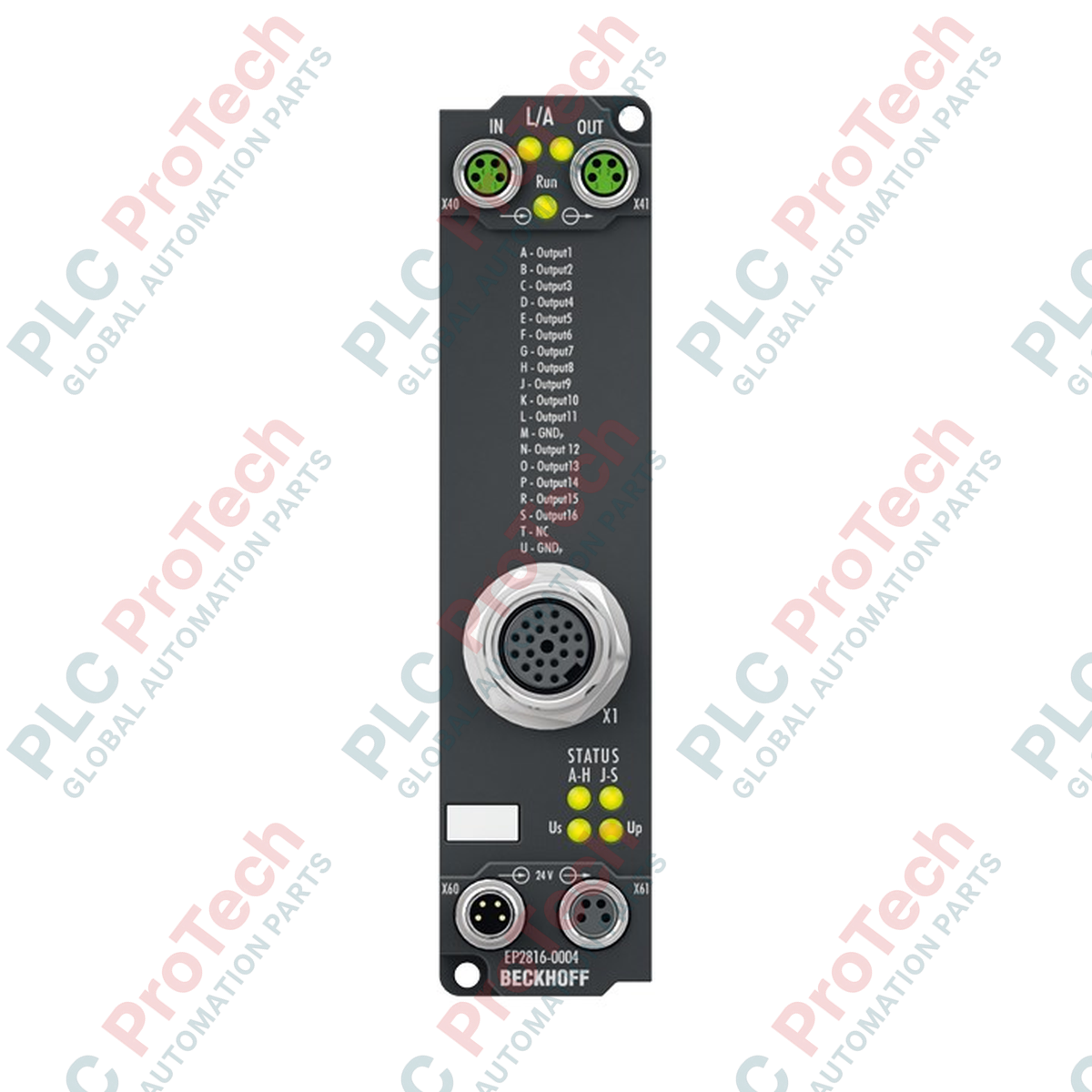

Designed for decentralized automation tasks in harsh environments, the Beckhoff EP2816-0004 is a high-density digital output module that interfaces directly with the EtherCAT network. This fieldbus-level device features 16 digital channels packaged in a compact, IP67-rated housing. It is engineered to switch binary control signals from the automation controller to actuators, solenoids, or indicators on the machine. By utilizing an M16, 19-pin output connector, the EP2816-0004 provides a centralized wiring point, making it highly compatible with multi-pin connector valve terminals.
The module operates on a nominal 24 V DC control voltage and handles up to 0.5 A per output channel. Each channel is designed with individual short-circuit protection to protect local wiring and system backplanes from overcurrent faults. With integrated support for Distributed Clocks, this EtherCAT Box guarantees highly synchronized signal processing across industrial installations.
| Beckhoff |
| EP2816-0004 |
| EtherCAT |
| 2 x M8 socket, shielded, screw type |
| 16 |
| M16 socket, 19-pin |
| Ohmic, inductive, lamp load |
| 24 V DC (-15% / +20%) |
| 0.5 A per channel (individually short-circuit proof), sum max. 4 A |
| typ. T_ON: 25 us, typ. T_OFF: 50 us |
| max. 1.5 A |
| Yes |
| 120 mA |
| typ. 20 mA + load |
| Feed: 1 x M8 male socket (4-pin); Downstream: 1 x M8 female socket (4-pin) |
| 500 V |
| -25 to +60 degC |
| -40 to +85 degC |
| Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Conforms to EN 61000-6-2 / EN 61000-6-4 |
| IP65 / IP66 / IP67 (conforms to EN 60529) |
| approx. 165 g |
| Interface Type | Connector Style | Function |
|---|---|---|
| EtherCAT Bus | 2 x M8 socket, shielded | Inbound and outbound industrial Ethernet communications |
| Digital Outputs | 1 x M16, 19-pin socket | Unified connection for 16 digital control channels |
| Power Feed | 1 x M8 male socket, 4-pin | Primary 24 V DC supply input (US/UP) |
| Power Downstream | 1 x M8 female socket, 4-pin | Power pass-through to daisy-chained EtherCAT Box modules |
