Beckhoff IP1010-B400 Fieldbus Box

SKU IP1010-B400

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: IP1010-B400
Origin Germany
Product Type: Fieldbus Boxes
Payment: T/T, Western Union
Weight: 0.35 kg
Dimensions: 30 mm x 210 mm x 26.5 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

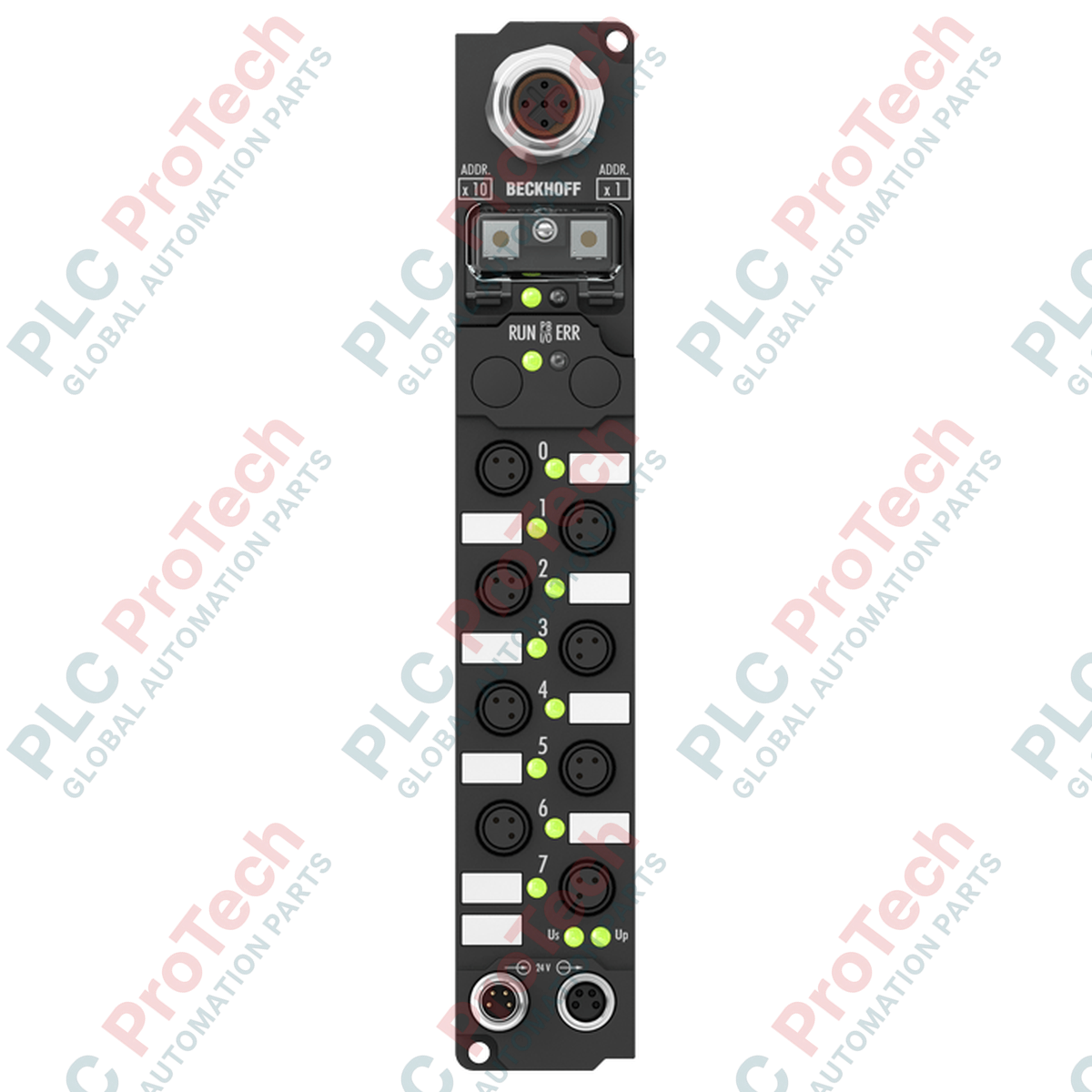

For decentralized machine-level applications, the Beckhoff IP1010-B400 fieldbus box provides a rugged, high-reliability solution for acquiring digital signals directly in the field. Operating as an Interbus-compatible device, this 8-channel digital input module captures fast-acting 24 V DC binary signals with a rapid 0.2 ms input filter time, minimizing propagation delay. Designed for cabinet-free installation, it features an IP67-rated enclosure that withstands harsh industrial environments, eliminating the need for protective junction boxes.

The module connects directly to sensors via space-saving 8 mm snap-type connectors. Power distribution is managed efficiently through dedicated M8 feed and downstream connections, enabling neat daisy-chaining across adjacent modules. Signal transmission and network communication are routed through heavy-duty M23 interfaces, ensuring stable 500 kBaud Interbus communication over distances up to 400 meters between stations.

Features

8 independent digital input channels compatible with 24 V DC sensors.
Interbus network interface supporting data transfer rates of 500 kBaud.
Fast-acting 0.2 ms input filter for precise signal detection.
Direct sensor connection via compact 8 mm snap-type female connectors.
Integrated short-circuit proof sensor supply up to 0.5 A.
Rugged polyamide (PA6) housing with an IP65/66/67 protection rating.
Streamlined power distribution utilizing M8 male and female circular connectors.

Applications

Decentralized manufacturing automation and assembly lines.
Conveyor systems and material handling machinery.
Automotive production facilities.
Packaging equipment and industrial processing plants.

Technical Specifications

Manufacturer	Beckhoff
Part Number / Model	IP1010-B400
Protocol / Fieldbus	Interbus
Data Transfer Rate	500 kBaud
Number of Inputs	8
Nominal Input Voltage	24 V DC (-15 % / +20 %)
Input Filter Time	0.2 ms
"0" Signal Voltage	-3 to +5 V (EN 61131-2, type 2)
"1" Signal Voltage	11 to 30 V (EN 61131-2, type 2)
Input Current	typ. 6 mA (EN 61131-2, type 2)
Sensor Supply	Max. 0.5 A total, short-circuit proof
Bus Interface	1 x M23 female 9-pin, 1 x M23 male 9-pin
Input Connection	8 mm, snap-type
Power Supply Connection	Feed: 1 x M8 male (4-pin); Downstream: 1 x M8 female (4-pin)
Box Supply Current	85 mA + sensor current (max. 0.5 A)
Operating Temperature	0 to +55 degC
Storage Temperature	-25 to +85 degC
Protection Rating	IP65/66/67 (conforms to EN 60529)
Enclosure Material	PA6 (polyamide)
Dimensions (W x H x D)	30 mm x 210 mm x 26.5 mm
Weight	approx. 350 g

Connections and Interfaces

Connection Type	Interface Style	Function / Pin Configuration
Fieldbus Input	M23 male, 9-pin	Interbus incoming communication path
Fieldbus Output	M23 female, 9-pin	Interbus outgoing communication path to downstream modules
Digital Inputs 1 - 8	8 mm snap-type female	Sensor input signals and 24 V DC sensor power supply
Power Feed	M8 male, 4-pin	Control and sensor voltage supply input
Power Downstream	M8 female, 4-pin	Loop-through supply voltage connection to adjacent box

Installation Guidelines

Mounting: Mount directly to flat surfaces of machine frames using the two integrated 3.5 mm diameter fixing holes designed for M3 screws. Do not exceed recommended torque limits on plastic housing.
Grounding: Ensure the mounting surface or grounding connection is electrically bonded to the machine ground potential to guarantee reliable EMC immunity.
Cabling: Use shielded LiYCY 3 x 2 x 0.22 mm² (or equivalent) for Interbus network lines to prevent electromagnetic interference. Limit cable length between individual fieldbus boxes to 400 m.
Environmental Protection: To maintain the IP67 protection rating, all unused M8, M23, and snap-type ports must be sealed with appropriate protective caps.

Compliance and Certifications

EMC Emission/Immunity: Conforms to EN 61000-6-4 and EN 61000-6-2.
Vibration / Shock Resistance: Conforms to EN 60068-2-6 and EN 60068-2-27.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What fieldbus protocol does the Beckhoff IP1010-B400 use?

The IP1010-B400 uses the Interbus protocol for data transmission with communication speeds up to 500 kBaud.

What is the maximum cable distance supported between modules?

The module supports a maximum cable length of 400 meters between individual fieldbus box stations.

What connector types are used for sensor inputs?

It uses 8 mm snap-type connectors for fast and secure connection of the 8 digital input channels.

Does the IP1010-B400 require a protective enclosure?

No, thanks to its IP65/66/67 protection rating and rugged polyamide (PA6) housing, it can be mounted directly on machines without an electrical enclosure.

What is the input filter time for this module?

The module features a fast input filter time of 0.2 ms for rapid signal acquisition.
